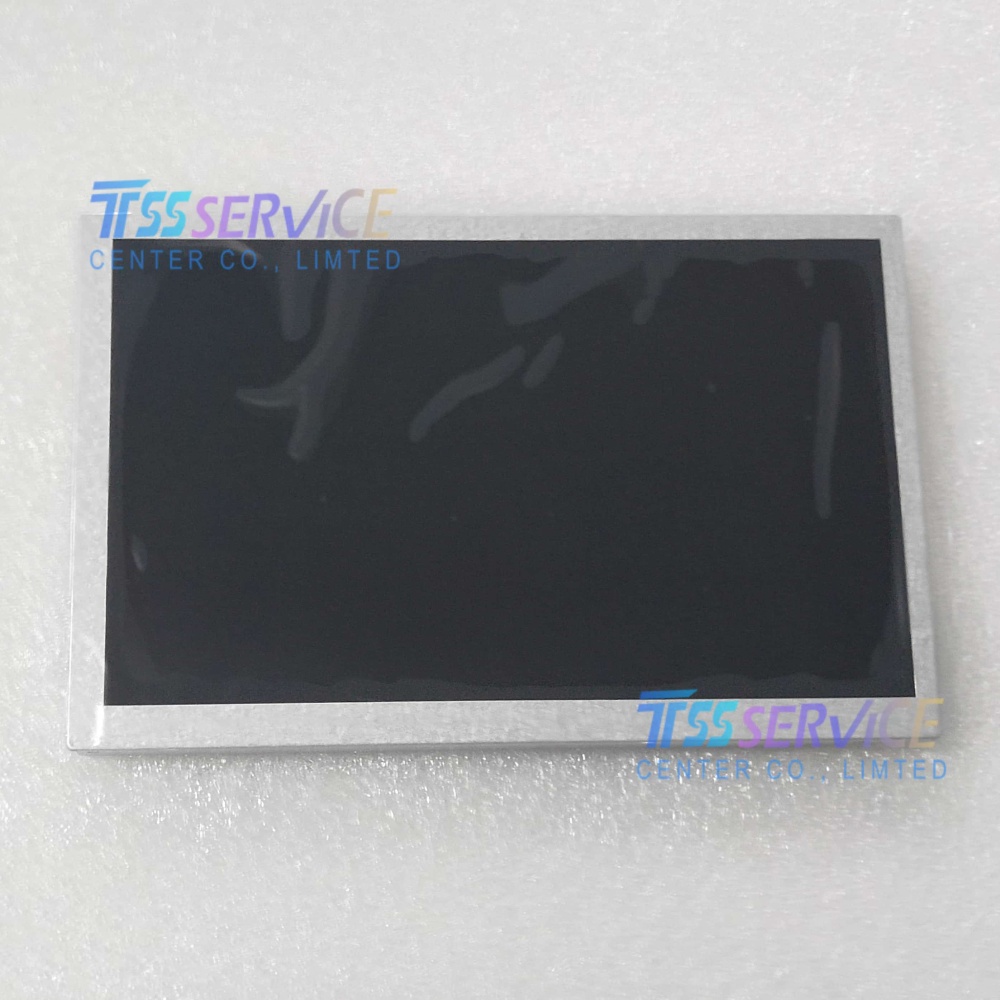

The TX20D200VM2BAB is an 8.0-inch industrial-grade TFT LCD module manufactured by KOE, featuring 800x480 pixel WVGA resolution. What sets this panel apart is its exceptional 1500 cd/m2 typical brightness -- a sunlight-readable level that ensures clear, legible visuals in direct sunlight, bright factory floors, and outdoor environments where conventional LCD panels fail. Combined with an 800:1 contrast ratio, LVDS interface, and wide operating temperature range of -20C to +70C, the TX20D200VM2BAB is purpose-built for demanding industrial, automotive, and outdoor display applications where reliability and visibility under bright ambient light are non-negotiable.
Technical Specifications
| Parameter |
Specification |
| Model |
TX20D200VM2BAB |
| Manufacturer |
KOE |
| Display Type |
a-Si TFT-LCD, LCM |
| Display Mode |
Normally White, Transmissive |
| Panel Size |
8.0 inches (diagonal) |
| Resolution |
800 x 480 pixels (WVGA) |
| Active Area |
174.0 x 104.4 mm mm |
| Pixel Pitch |
0.2175 x 0.2175 mm mm |
| Outline Dimension |
192.0 x 114.0 mm (typ.) |
| Brightness (Typ.) |
1500 cd/m2 (High Brightness / Sunlight Readable) |
| Contrast Ratio (Typ.) |
800:1 |
| Viewing Angle (L/R/T/B) |
80/80/60/80 (CR>=10) |
| Response Time (Typ.) |
25 (Typ.) ms |
| Color Depth |
16.7M (6-bit+Hi-FRC) |
| Interface Type |
LVDS (1 ch, 6-bit), 20 pins |
| Backlight Type |
LED Edge-Light |
| Supply Voltage |
3.3V (logic), 5V/12V (backlight) |
| Operating Temperature |
-20C to +70C |
| Storage Temperature |
-30C to +80C |
Key Advantages
- Sunlight-Readable High Brightness: 1500 cd/m2 typical brightness ensures crystal-clear visibility in direct sunlight, bright ambient environments, and outdoor installations where standard panels (300-500 cd/m2) are unreadable.
- High Contrast Ratio: 800:1 contrast ratio delivers deep blacks and vivid colors, improving readability and visual quality in all lighting conditions.
- Wide Operating Temperature: Rated for -20C to +70C, the TX20D200VM2BAB is engineered for continuous operation in industrial and outdoor environments subject to temperature extremes.
- KOE Industrial Quality: Manufactured by KOE (formerly Hitachi Displays), a trusted name in industrial embedded display solutions with decades of reliability expertise.
- Versatile Power Options: 3.3V logic with 5V/12V backlight support allows flexible integration with a wide range of embedded systems and display controllers.
- Energy-Efficient LED Backlight: LED edge-light backlight provides consistent illumination with lower power consumption and longer lifetime compared to CCFL alternatives.
Typical Applications
- Outdoor Industrial HMI: Sunlight-readable control panels for factory automation, agricultural machinery, and construction equipment operating in bright outdoor environments.
- Automotive Displays: Instrument cluster displays, car navigation, rear-seat entertainment, and fleet management systems requiring high brightness for daytime driving visibility.
- Transportation: Passenger information systems, ticket vending machines, transit schedule displays, and railway platform signage exposed to natural light.
- Medical Devices: Portable diagnostic equipment and patient monitoring systems used in brightly lit clinical environments.
- Digital Signage: Outdoor digital signage, kiosk displays, and interactive information terminals requiring daylight readability.
Quality Assurance and Service
- 1-Year Warranty: Covers manufacturing defects and premature failures under normal operating conditions.
- Strict Pre-Shipment Inspection: Every panel undergoes functional testing before shipping to ensure specification compliance and zero dead pixels.
- Technical Support: Our engineering team provides free specification consultation and application compatibility guidance.
- Sample Orders Welcome: Single-unit sample orders accepted -- contact us to verify compatibility with your equipment before placing a bulk order.
- Secure Packaging: ESD anti-static packaging with shock-absorbing foam and reinforced outer carton to withstand international transit.
Frequently Asked Questions
Is this panel brand new and original?
Yes -- this is a brand new, genuine KOE LCD module sourced from authorized distribution channels. We conduct thorough functional testing on every unit before shipment.
What interface does the TX20D200VM2BAB use?
The TX20D200VM2BAB uses an LVDS (Low-Voltage Differential Signaling) interface with 1 channel and 6-bit color depth via a 20-pin connector. This is the standard interface for industrial displays and is compatible with most industrial display controller boards.
Can this panel be used outdoors in direct sunlight?
Yes -- the TX20D200VM2BAB features 1500 cd/m2 typical brightness, which is classified as sunlight-readable. This makes it suitable for outdoor industrial HMI, automotive, and digital signage applications where conventional panels would be unreadable under bright ambient light.
What is the lead time for this panel?
Standard orders ship within 1-3 working days. For large orders, please contact us for specific lead time estimates.
What power supply does this panel require?
The panel requires 3.3V for logic circuitry and supports 5V or 12V for the backlight. Please refer to the specifications table for detailed power requirements.
What shipping methods are available?
We offer shipping via DHL, FEDEX, EMS, and UPS. Standard international express shipping typically arrives within 3-7 business days. Import duties and VAT are the responsibility of the recipient.
