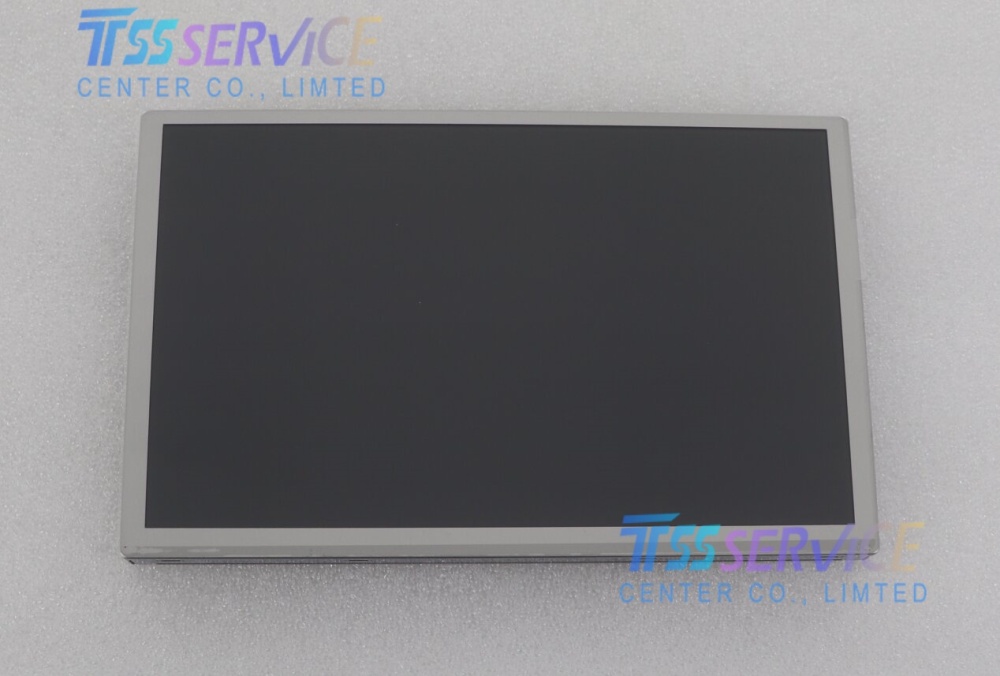

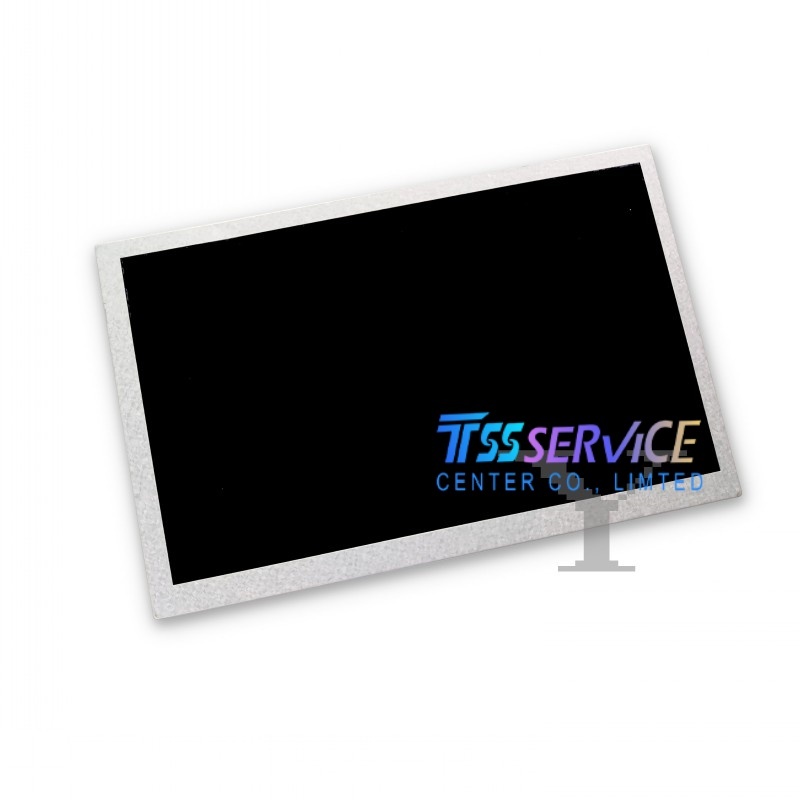

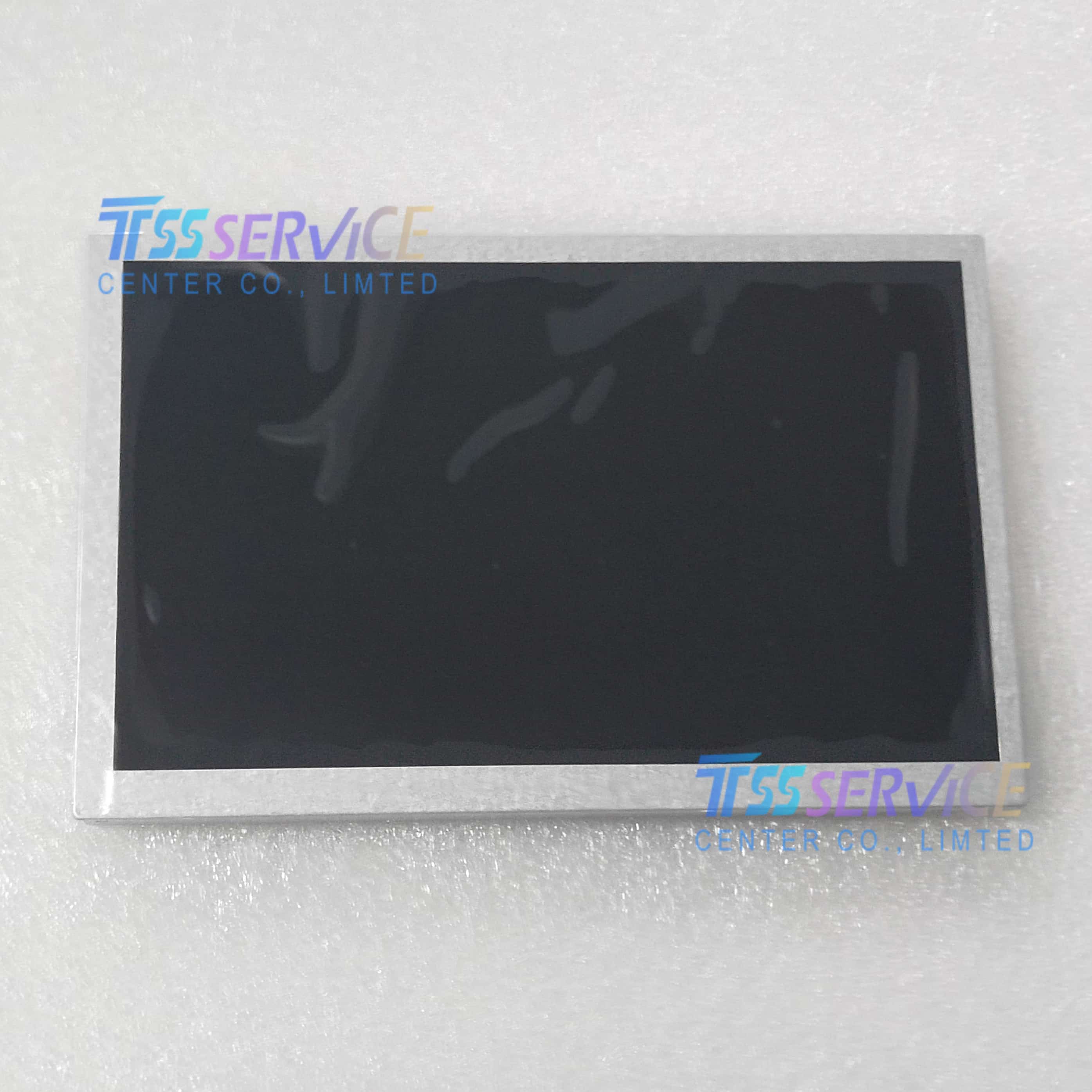

KOE/JDI TX20D200VM5BWA 8 Inch LCD Panel Display For Industrial
| Category |
Item |
Specification |
| Basic Information |
Manufacturer |
KOE (JDI Group) |
|
Display Size |
8.0 inches (diagonal) |
|
Panel Type |
a‑Si TFT‑LCD, TN (Normally White, Transmissive) |
|
Aspect Ratio |
15:9 (WVGA) |
|
Production Status |
Discontinued (EOL) |
| Resolution & Pixels |
Resolution |
800 (RGB) × 480 (WVGA) |
|
Pixel Pitch |
0.2175 × 0.2175 mm (W×H) |
|
Pixel Layout |
RGB Vertical Stripe |
|
PPI |
116 (Typ.) |
| Optical Performance |
Brightness (Typ.) |
1000 cd/m² |
|
Contrast Ratio (Typ.) |
400:1 (Transmission) |
|
Display Colors |
262K (6‑bit) |
|
Response Time (Typ.) |
Tr/Td = 12/18 ms |
|
Viewing Angle (Typ., CR≥10) |
80°(L) / 80°(R) / 80°(U) / 80°(D) |
|
Surface Treatment |
Anti‑glare (Matte), Hard Coating (3H) |
| Backlight |
Type |
WLED (White LED, Side‑lit) |
|
Life Expectancy |
50,000 hours (Typ., at 25°C) |
| Interface |
Signal Interface |
LVDS (1 channel, 6‑bit, 40 pins) |
|
Input Voltage |
3.3V (VCCS, Typ.) |
| Mechanical Dimensions |
Active Area |
174.0 × 104.4 mm (W×H) |
|
Visible Area |
177.0 × 107.4 mm (W×H) |
|
Module Outline |
189.0 × 122.0 × 10.2 mm (W×H×D) |
|
Net Weight (Typ.) |
290 g |
| Environmental Ratings |
Operating Temperature |
-20 °C to +70 °C |
|
Storage Temperature |
-30 °C to +80 °C |
|
Vibration Resistance |
2.0G (19.6 m/s²) |
| Compliance |
RoHS |
Compliant |
TX20D200VM5BWA is engineered for extreme brightness, wide temperature tolerance, and industrial ruggedness, making it ideal for:
1. Outdoor & Industrial HMI
- Use Cases: Factory automation panels, outdoor PLC terminals, SCADA workstations, CNC machine interfaces, construction equipment HMIs.
- Why It Fits: 1000 cd/m² ultra‑high brightness ensures readability in direct sunlight; -20°C to +70°C operating range withstands extreme factory/field temperatures; 2.0G vibration resistance and 3H hard coating resist dust, shock, and scratches.
2. Transportation & Heavy Machinery
- Use Cases: Agricultural tractor displays, forklift control panels, construction vehicle dashboards, marine navigation monitors, railway on‑board terminals.
- Why It Fits: Rugged WLED backlight and wide temp range handle vehicle/machinery vibration and outdoor thermal swings; anti‑glare surface reduces glare in cab environments; LVDS interface delivers stable long‑distance signal transmission.
3. Outdoor & Public Displays
- Use Cases: Outdoor digital signage, kiosks, ticketing machines, parking guidance displays, industrial information terminals.
- Why It Fits: High brightness and anti‑glare coating maintain visibility in daylight; slim 10.2mm profile fits compact kiosk designs; 24/7‑rated backlight supports continuous public operation.
4. Test & Measurement Instruments
- Use Cases: Portable field testers, environmental monitors, data loggers, industrial oscilloscopes, process analyzers.
- Why It Fits: Compact 8‑inch form factor suits portable gear; wide storage temp (-30°C to +80°C) supports field deployment; stable color and contrast ensure accurate data visualization.
5. Marine & Military Embedded Systems
- Use Cases: Marine radar displays, shipboard control panels, rugged military embedded computers, outdoor communication terminals.
- Why It Fits: Industrial‑grade environmental ratings meet MIL‑STD‑like durability; high brightness and wide viewing angles perform in harsh marine/military environments; RoHS compliance aligns with global equipment standards.
