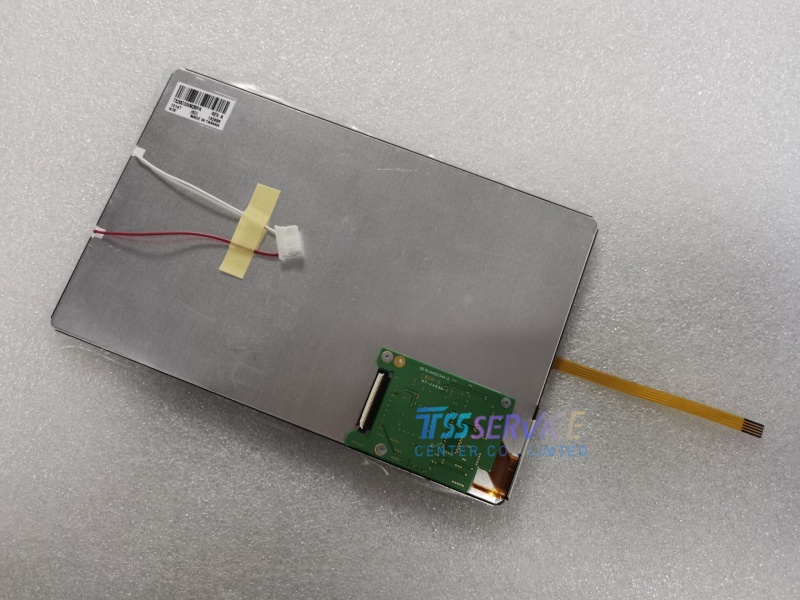

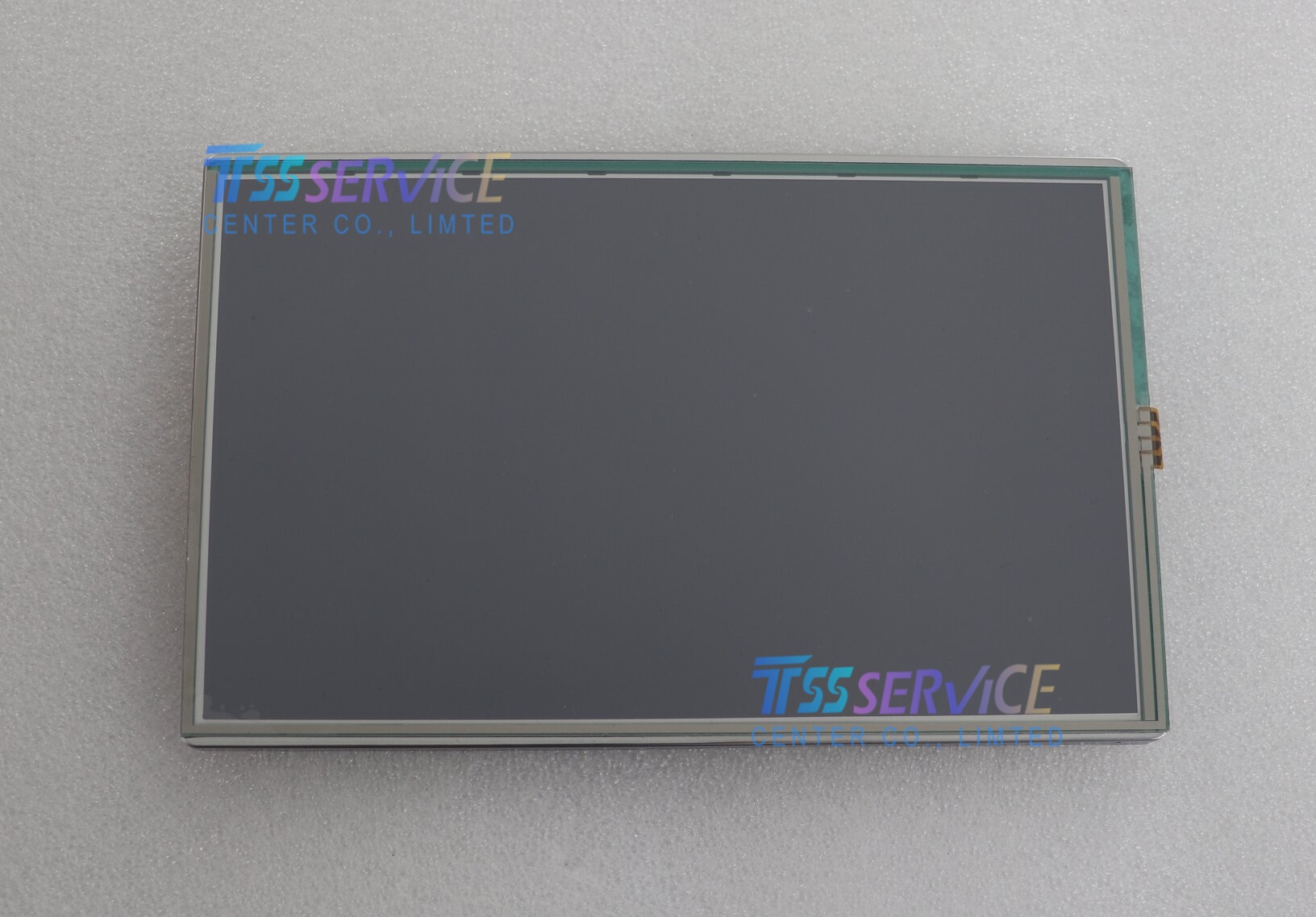

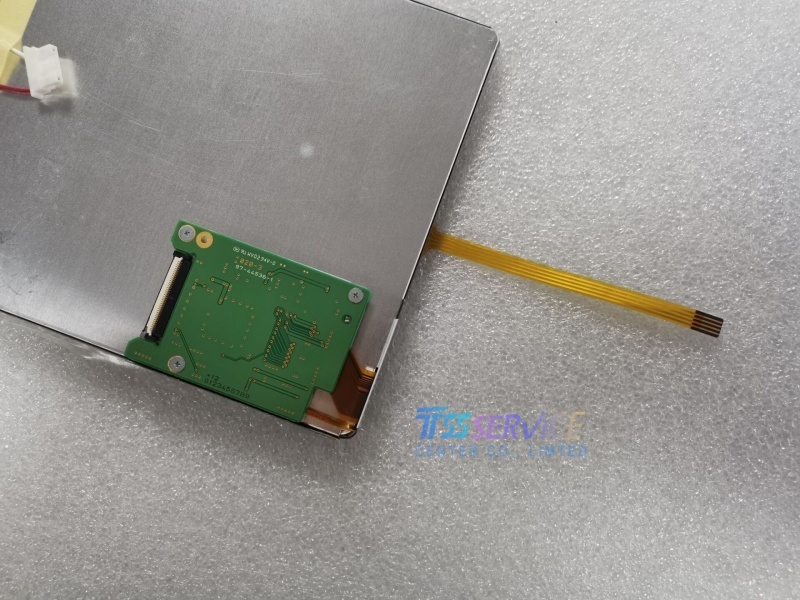

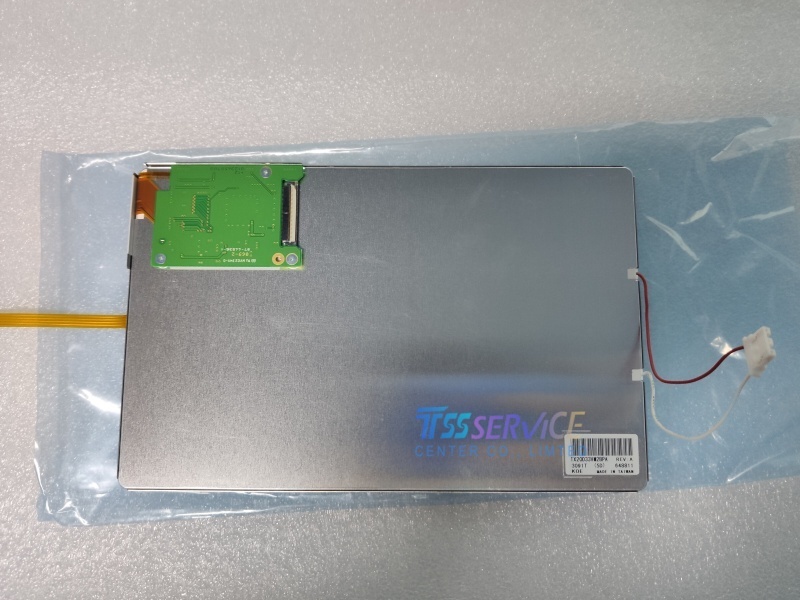

TX20D33VM2BPA 8.0-Inch TFT LCD Module with 4-Wire Resistive Touch Panel
The TX20D33VM2BPA is a high-performance, compact 8.0-inch Thin Film Transistor (TFT) Liquid Crystal Display (LCD) module, integrated with a durable 4-wire resistive touch panel. Designed for a wide range of industrial, commercial, and embedded applications, it offers a reliable and versatile human-machine interface (HMI) solution.
| Category |
Parameter |
Specification |
| Display |
Screen Size |
8.0 inch |
|
Active Area |
174(W)×104.4(H) mm |
|
Resolution |
800(RGB)×480, WVGA 116PPI |
|
Display Type |
a-Si TFT-LCD, LCM |
|
Brightness (Typical) |
320 cd/m² (Typ.) |
|
Contrast Ratio (Typical) |
800:1 |
| Touch Panel |
Type |
4-Wire Analog Resistive |
|
Surface |
Hard Coating (3H), Anti-Glare |
| Electrical |
Interface |
CMOS (1 ch, 6-bit) , 40 pins Connector |
|
Power Supply (Logic) |
3.3V (Typical) |
|
Backlight Type |
WLED [3S9P] , 50K hours , |
|
Backlight Connection |
8 LEDs in series (2 strings) |
|
Backlight Voltage/Current |
24.0V (Typical), 60mA per string (Typical) |
| Mechanical |
Outline Dimensions |
189(H)×120(V) ×10(D) mm |
|
Bezel Area |
179.0 mm x 136.0 mm |
|
Surface |
Glare (AG optional) |
| Environmental |
Operating Temperature |
-20°C to +70°C |
|
Storage Temperature |
-30°C to +80°C |
