| Parameter | Value |
|---|---|
| Brand | KOE / Hitachi |
| Screen Size | 8.0 inches |
| Display Technology | a-Si TFT-LCD, TN (Twisted Nematic), Normally White, Transmissive |
| Resolution | WVGA (800 x 480 pixels) |
| Pixel Pitch | - |
| Aspect Ratio | 16:9 |
| Color Support | 262,144 colors (6-bit) |
| Brightness | 600 cd/m² (Typ.), upgradable to 1000 cd/m² by increasing backlight current |
| Contrast Ratio | 600:1 (Typ.) |
| Viewing Angle | 80° horizontal / 60° vertical (80/80/60/80) (Typ.) |
| Interface | LVDS (1 channel, 6-bit), 20 pins |
| Backlight | WLED, 50,000 hours at 600 cd/m², 40,000 hours at 1000 cd/m² |
| Touchscreen | None (without touch) |
| Operating Temperature | -30°C to +80°C |
| Outline Dimensions | 189.0 (W) x 120.0 (H) x 8.0 mm |
| Active Area | 174.0 (W) x 104.4 (H) mm |
| Weight | 165g (Typ.) |

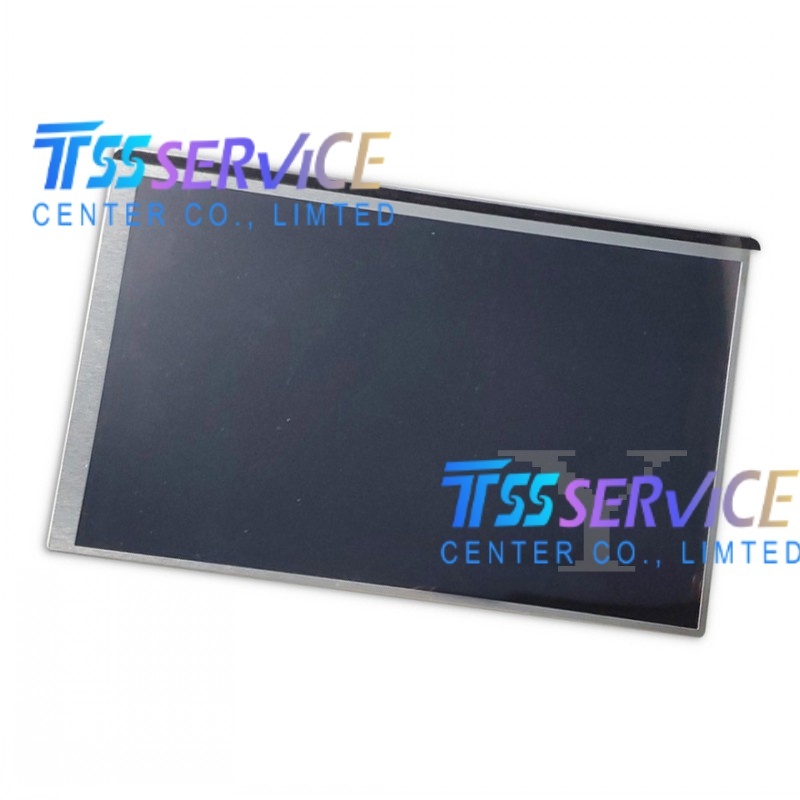

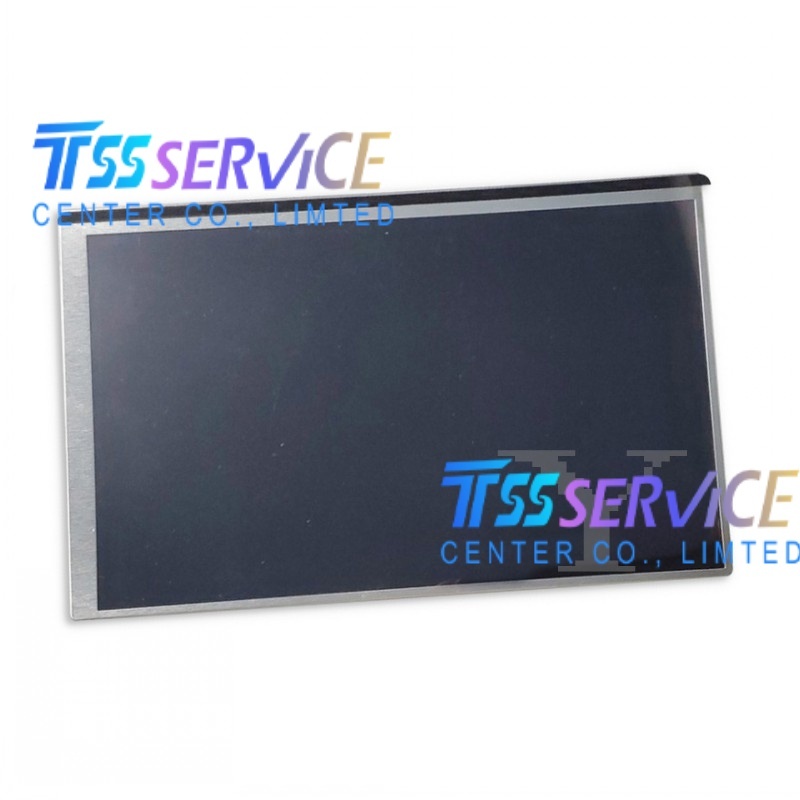

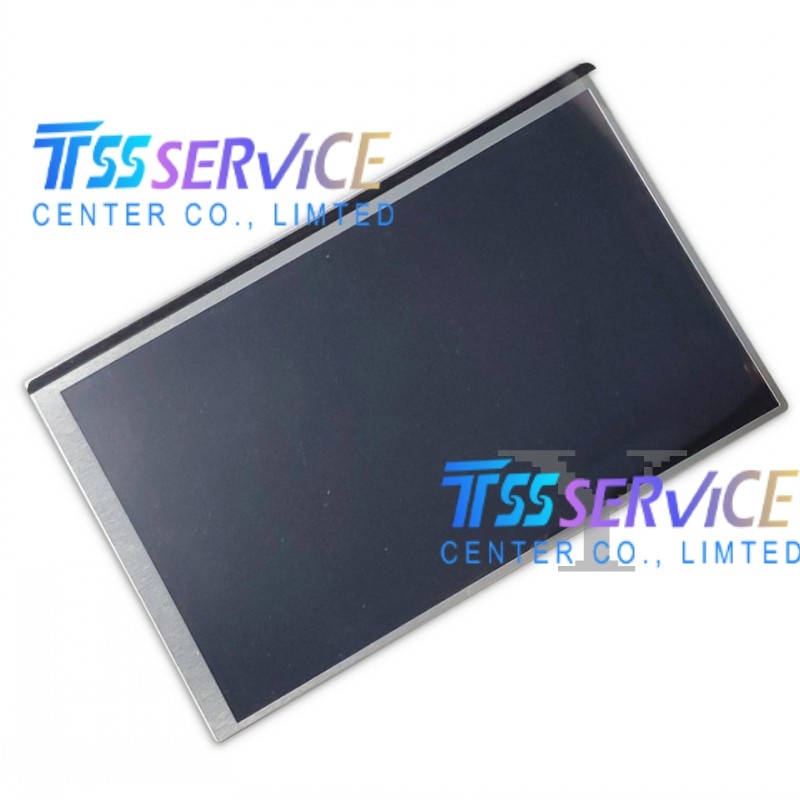

The TX20D34VM2BAB is an 8.0-inch display module engineered for reliability and optical performance in demanding environments. Its combination of a wide operating temperature range, upgradeable high brightness, and slim design makes it suitable for various industrial and outdoor applications
Outdoor Human-Machine Interfaces (HMIs) and Kiosks: With the ability to achieve 1000 cd/m² brightness, this display is ideally suited for outdoor ticketing machines, information kiosks, and industrial control panels that must remain readable in direct sunlight exposure
Industrial Applications: The wide operating temperature range (-30°C to +80°C) allows it to be used in factory automation equipment, process control systems, and other industrial settings where environmental conditions vary significantly
Building Management and Security Monitoring: The display is well-suited for facility management systems, building automation panels, and security monitoring stations requiring clear visibility and reliable 24/7 operation
Home and Office Automation: Applications include smart home control panels, office automation interfaces, and commercial building management systems where consistent optical performance is required
Transportation and High-Reliability Systems: The robust operating temperature range and vibration resistance (2.0G) make it suitable for marine, agricultural vehicle consoles, and other on-board displays used in unconditioned environments
