| Parameter | Value |
|---|---|
| Brand | KOE / Hitachi |
| Screen Size | 8.0 inches |
| Display Technology | a-Si TFT-LCD, TN (Twisted Nematic), Normally White, Transmissive |
| Resolution | WVGA (800 x 480 pixels) |
| Pixel Pitch | 0.2175 x 0.2175 mm |
| Aspect Ratio | 15:9 |
| Color Support | 262,144 colors (6-bit) |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Viewing Angle | 80° horizontal / 60° vertical (Typ.) |
| Interface | LVDS (1 channel, 6-bit), 20 pins |
| Backlight | WLED, 50,000 hours |
| Touchscreen | Integrated 4-wire Resistive Touch |
| Operating Temperature | -20°C to +70°C |
| Outline Dimensions | 189.0 (W) x 120.0 (H) x 9.5 (D) mm |
| Active Area | 174.0 (W) x 104.4 (H) mm |
| Weight | 235g (Typ.) |

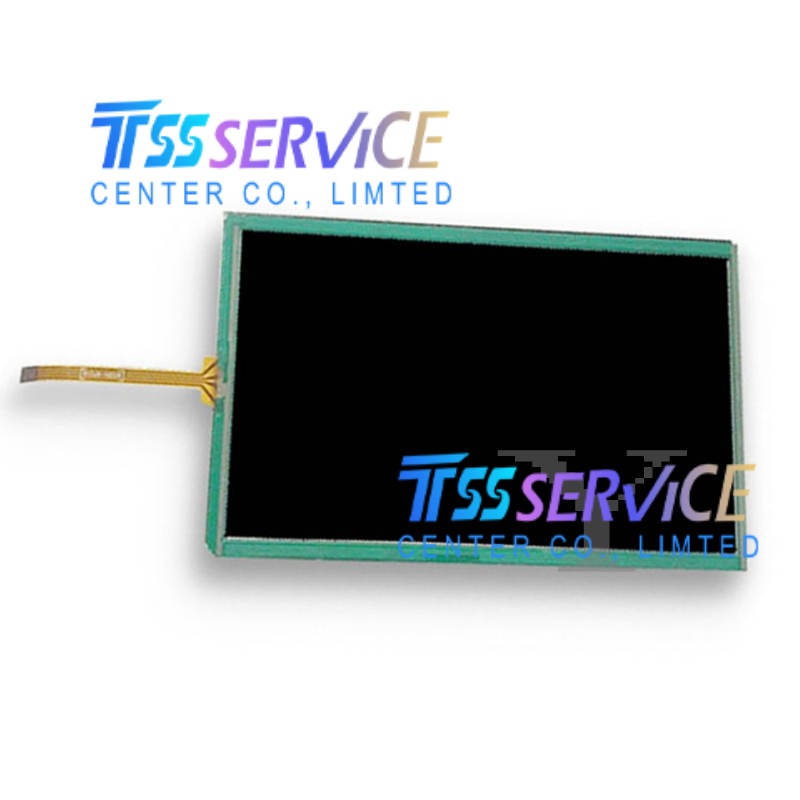

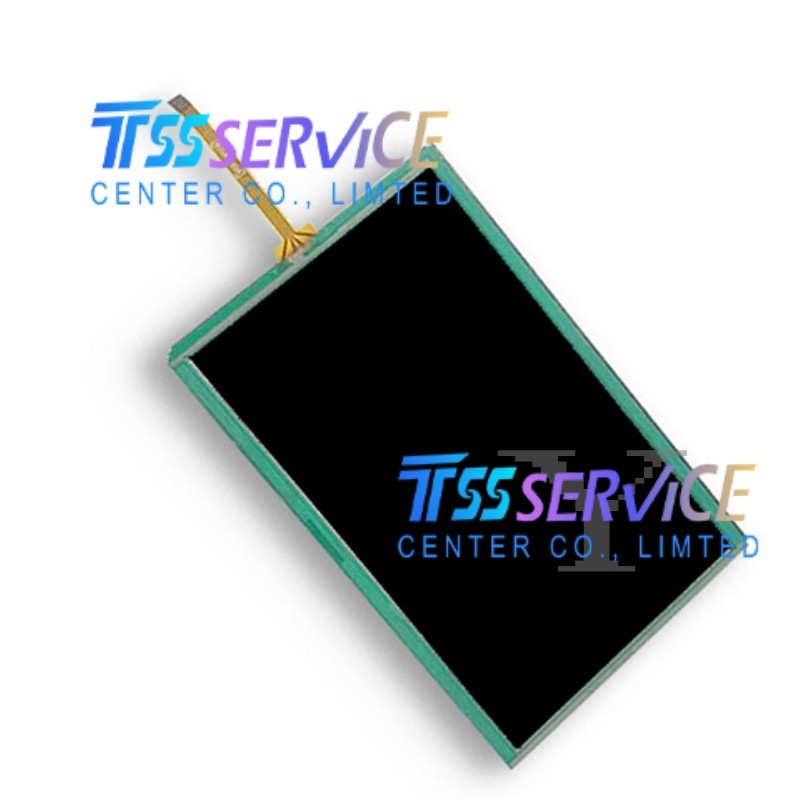

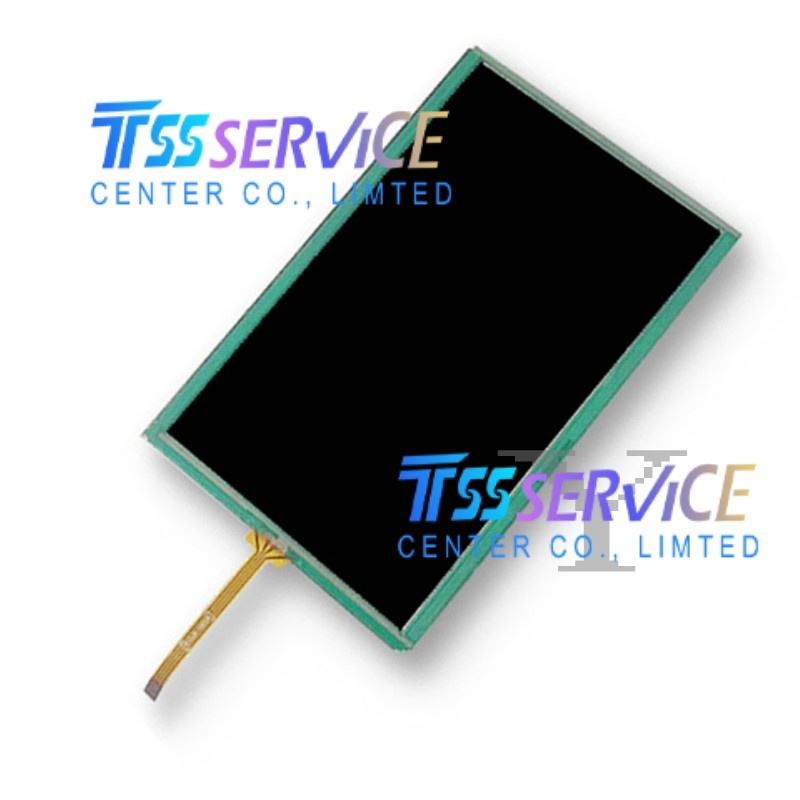

The TX20D34VM2BPA is an 8.0-inch display module engineered for reliability and usability in demanding environments. Its combination of a wide operating temperature range, an integrated resistive touchscreen, and a balanced feature set makes it suitable for various industrial and outdoor applications
Outdoor Human-Machine Interfaces (HMIs) and Kiosks: The display is well-suited for outdoor ticketing machines, information kiosks, and industrial control panels that must remain readable in varying ambient light conditions. Its design ensures data is legible, which is critical for outdoor-facing applications
Field-Service and Portable Devices: For portable diagnostic equipment, ruggedized tablets, or devices used in construction and logistics, this display offers a durable solution. The integrated resistive touchscreen is a key advantage here, as it functions reliably even when the operator is wearing gloves
Transportation (Marine and Agricultural): The wide operating temperature range (-20°C to +70°C) allows it to be used in unconditioned environments. This makes it a candidate for marine chartplotters, agricultural vehicle consoles, and other on-board displays that face significant temperature variations
Specialty Medical Equipment: Its reliability and glove-compatible touchscreen make it suitable for portable or stationary medical devices used in various settings, from ambulances to clinics, where consistent performance is required
Home and Building Automation: For high-end interior control systems or building management panels, the display provides a clear and responsive interface for monitoring and automation tasks
