| Parameter | Specification (Estimated/Typical) | Description |
|---|---|---|
| Manufacturer | KOE (Kristal Optronics) | Formerly Hitachi Displays |

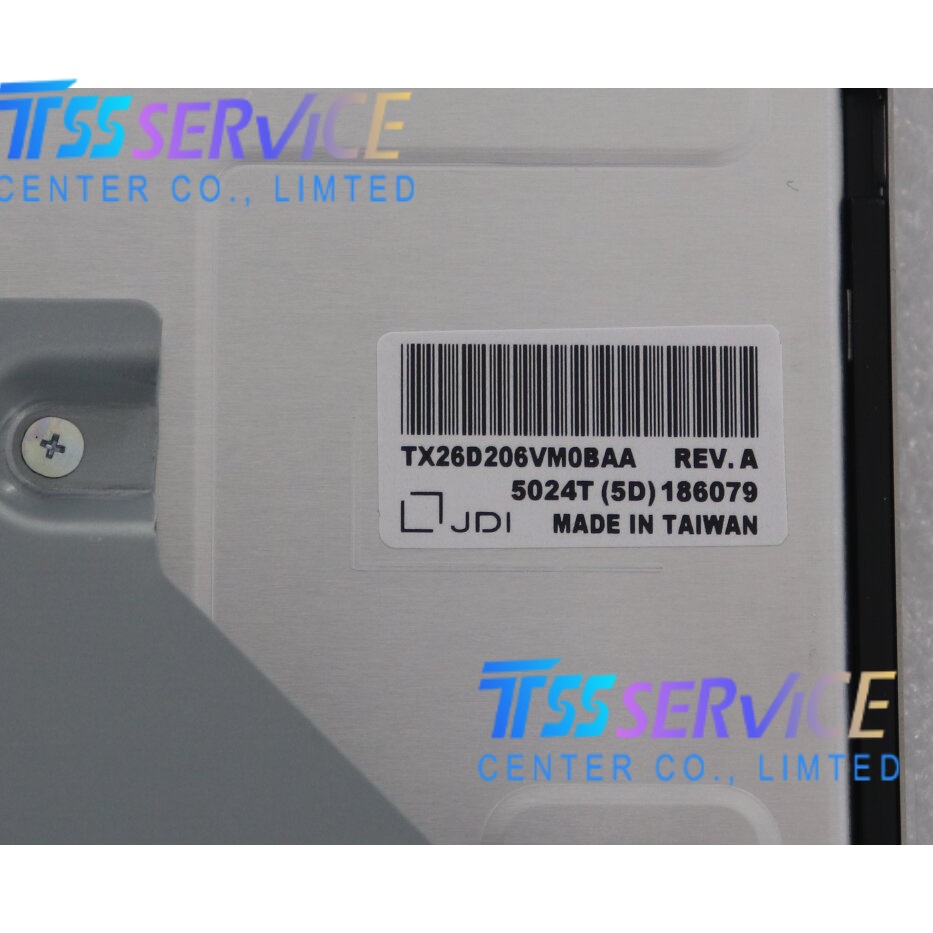

| Model Number | TX26D206VM0BAA | Industrial TFT-LCD Module |

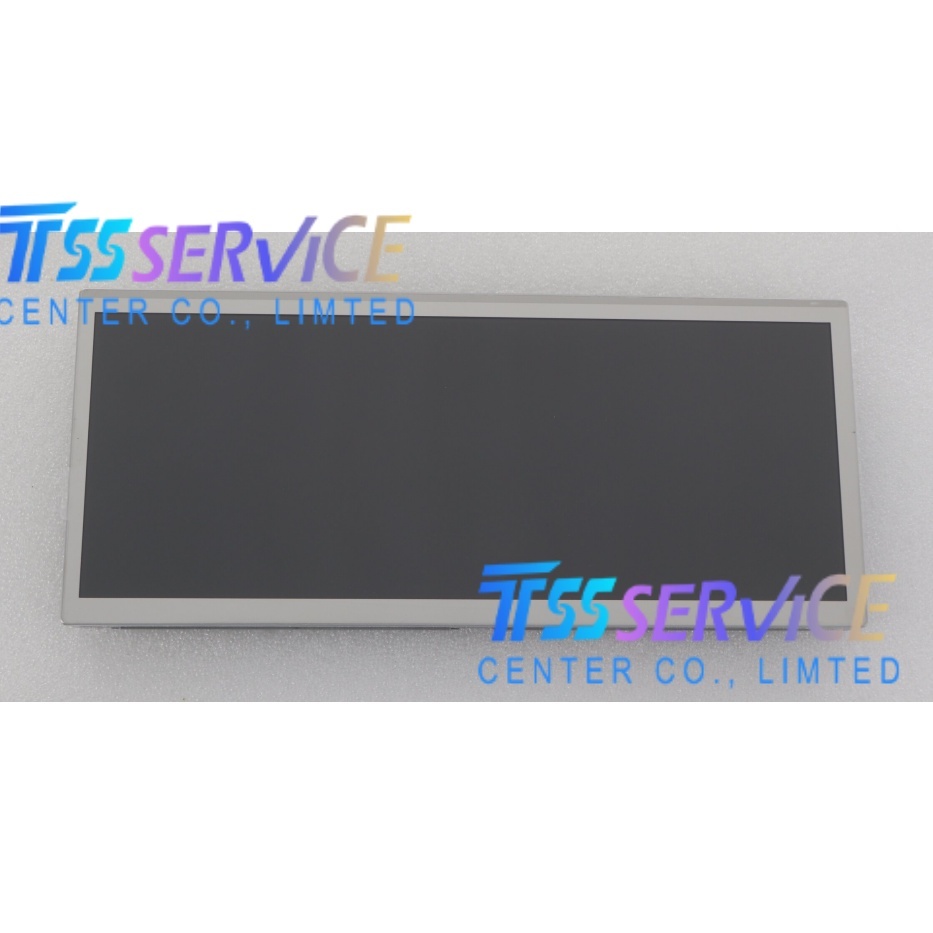

| Display Size | 10.4 inch (Diagonal) | Standard 4:3 or 5:4 aspect ratio |
| Resolution | 1024 × 768 (XGA) | Typical for TX26D2xx series (may vary slightly by sub-model) |
| Pixel Pitch | ~0.205 mm (H) × 0.205 mm (V) | Calculated based on 10.4" XGA |
| Active Area | 211.2 × 158.4 mm | Approximate visible screen size |
| Panel Type | a-Si TFT-LCD | Transmissive, Active Matrix |
| Brightness | 800 ~ 1,200 cd/m² (Typ.) | High brightness for outdoor/sunlight readability |
| Contrast Ratio | 800:1 ~ 1000:1 (Typ.) | High contrast for clear image definition |
| Viewing Angle | 80/80/80/80 (Min.) | Wide viewing angle (Left/Right/Up/Down) at CR≥10 |
| Color Support | 16.7 Million Colors (8-bit) | Full color display |

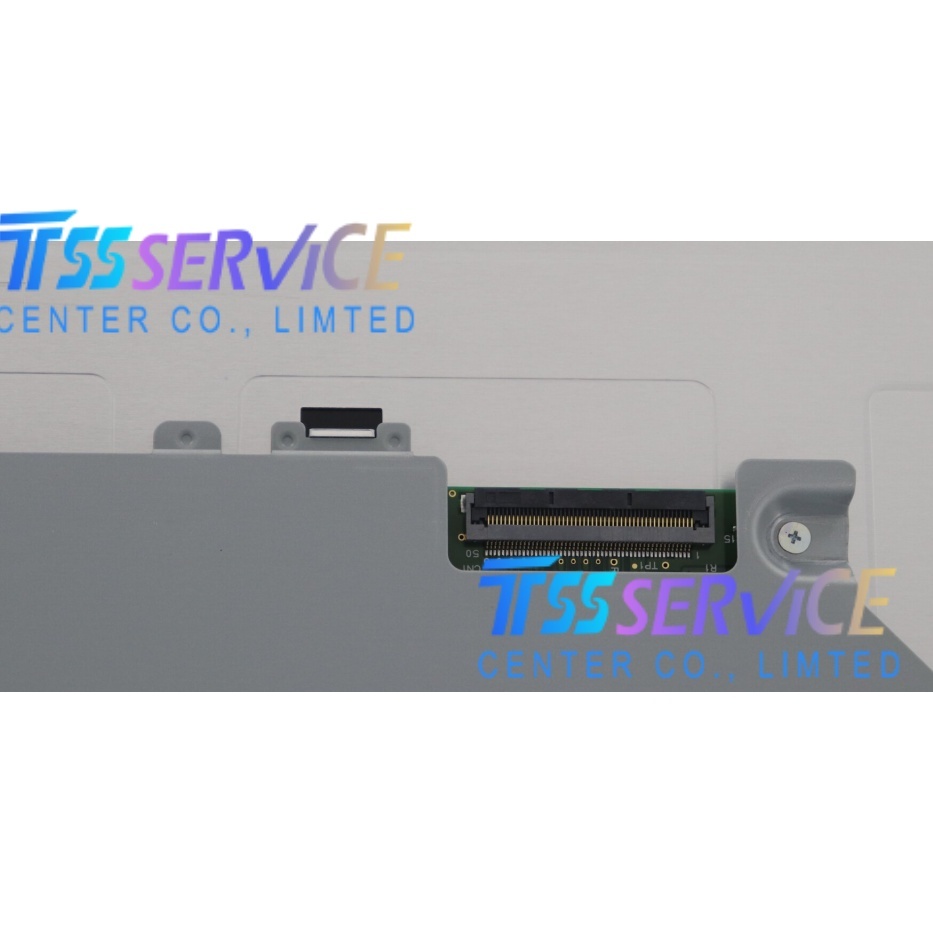

| Interface | LVDS (Low Voltage Differential Signaling) | 1 or 2 channels, 24-bit or 18-bit data |
| Backlight Type | WLED (White LED) | Long life, mercury-free, edge-lit or direct-lit |
| Power Supply | 3.3V (Logic), 12-24V (Backlight) | Standard industrial voltage levels |
| Operating Temp. | -20°C to +70°C (Standard) -30°C to +85°C (Wide) |
"BAA" suffix often indicates wide temperature or high brightness bin |
| Storage Temp. | -30°C to +80°C | Safe storage range |
| Dimensions | ~235 × 180 × 10 mm | Approximate module outline (W×H×D) |
| Weight | ~450g | Approximate weight including driver board |
| RoHS/REACH | Compliant | Environmentally friendly materials |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
