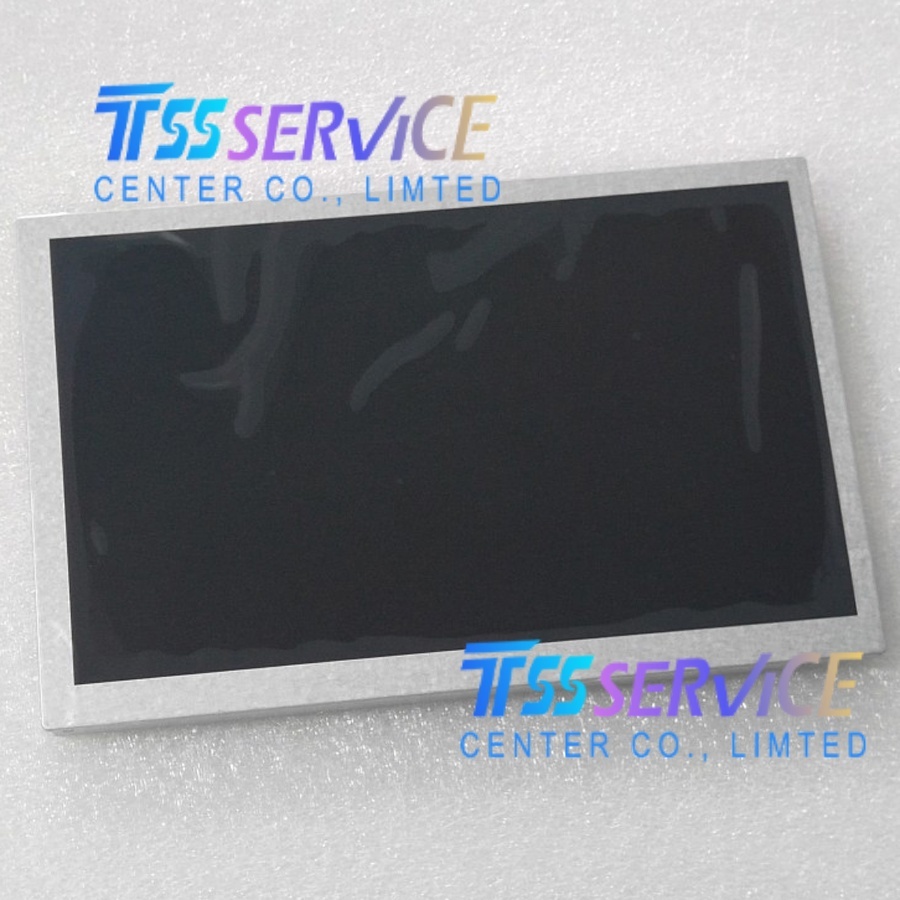

KOE TX27D200VM0AAA 10.6 Inch WXGA 1280×768 LTPS IPS LCD Screen Industrial Display
| Spec Item |
Parameter |
| Brand |
KOE |
| Model |
TX27D200VM0AAA |
| Diagonal Size |
10.6 inch, 15:9 WXGA |
| Resolution |
1280(RGB)×768, RGB Vertical Stripe |
| Active Area |
231.36(H)×138.816(V) mm |
| Overall Dimension |
250(H)×157(V)×9.4(D) mm |
| Weight |
430g (Typ.) |
| Display Type |
IPS, Normally Black, Transmissive LTPS TFT-LCD |
| Luminance |
1300 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) |
| View Angle |
85/85/85/85 (CR≥10), Symmetric |
| Response Time |
24ms (Tr+Td Typ.) |
| Display Color |
262K / 16.7M, 50% NTSC |
| Backlight |
4S WLED, 100K Hours Lifespan, No Driver IC |
| Refresh Rate |
60Hz |
| Touch Panel |
Without Touch |
| Interface |
20Pin LVDS(1CH,6/8-bit) |
| Supply Voltage |
3.3V DC (Typ.) |
| Operating Temp |
-40℃ ~ +85℃ |
| Storage Temp |
-40℃ ~ +90℃ |
| Anti-Vibration |
5.0G (49.0 m/s²) |
Application Scenarios
1. Outdoor Industrial HMI & Field Test Equipment
Outdoor engineering control panel, field detection instrument, environmental monitoring terminal; 1300nit high brightness ensures readable under direct sunlight, wide temp & anti-vibration fit harsh field environment.
2. Construction / Special Vehicle Onboard Display
Engineering machinery, military vehicle, heavy truck onboard monitoring screen; excellent shockproof & wide-temperature performance adapts bumpy & extreme temperature working condition.
3. Outdoor Kiosk & Commercial Terminal
Outdoor self-service machine, outdoor advertising auxiliary display, industrial POS terminal; high brightness solves sunlight reflection problem.
4. Medical & Rugged Portable Device
High-end portable medical testing equipment, rugged industrial handheld device original screen replacement & refurbishment.
5. Embedded System Custom Development
Industrial single-board development screen, customized automation equipment display upgrade.
