Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..

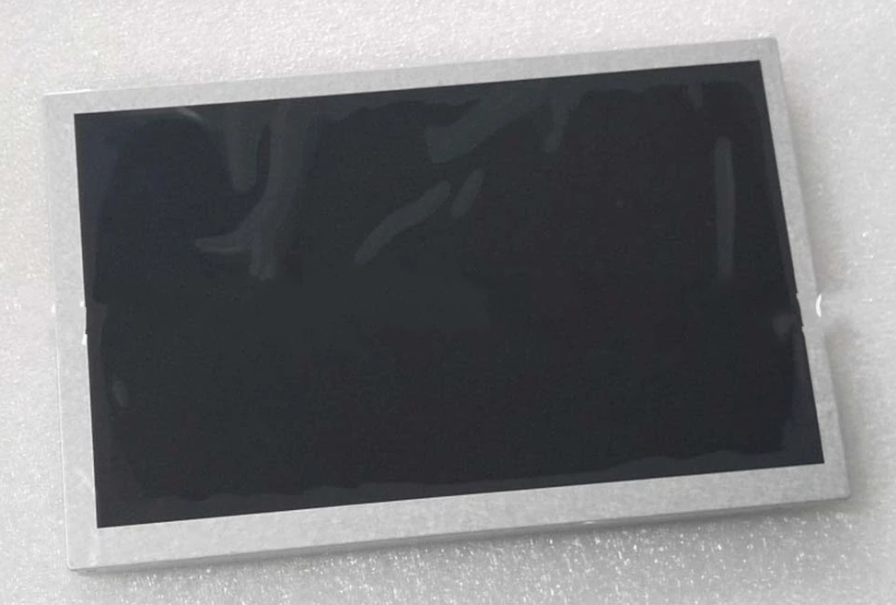

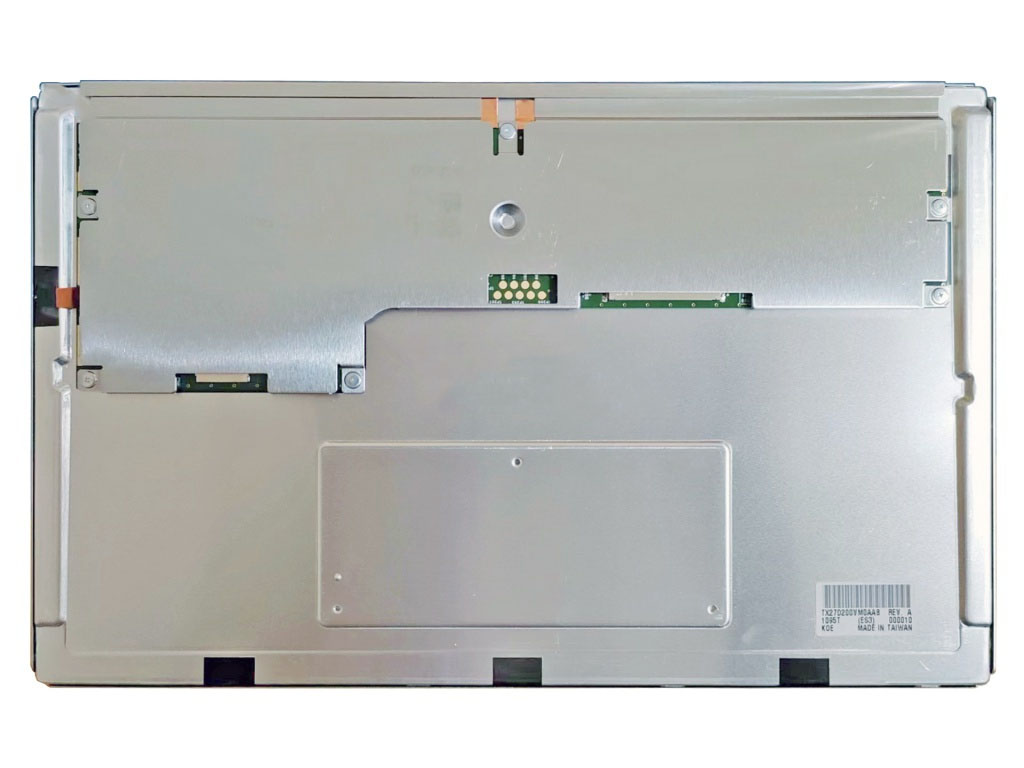

| Brand | KOE |
| Model P/N | TX27D200VM0AAB |
| Diagonal Size | 10.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×768, WXGA 140PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 231.36(W)×138.816(H) mm |
| Bezel Opening | 235.4(W)×142.8(H) mm |
| Outline(mm) | 250(W)×157(H)×9.4(D) |
| Treatment | - |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 24 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | 4 strings WLED, 100K hours, With LED Driver |
| Mass | 435g (Typ.) |
| Used for | Industrial Control HMI, Automotive Displays, Outdoor Equipment, Military & Aerospace Terminals |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C ; Operating Temp.: -40 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
Q: What if the product doesn't work ?
A: Please test the product as soon as you receive it. If it does not work, take clear photos and videos of the issue and contact us immediately. We will then provide technical support or arrange a return or exchange.
