KOE TX29D200VM0AAB 11.6 Inch 1920×1080 Industrial TFT LCD Panel

Name: KOE TX29D200VM0AAB 11.6 Inch 1920×1080 Industrial TFT LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX29D200VM0AAB
Price: 450 USD
Availability: InStock

SKU: TX29D200VM0AAB

Model Number: TX29D200VM0AAB
Diagonal Size: 11.6 inch
Panel Technology: a-Si TFT-LCD, IPS, Normally Black, Transmissive
Native Resolution: 1920(RGB) × 1080 FHD, 16:9 Landscape
Pixel Structure: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$465.00~~ $450.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

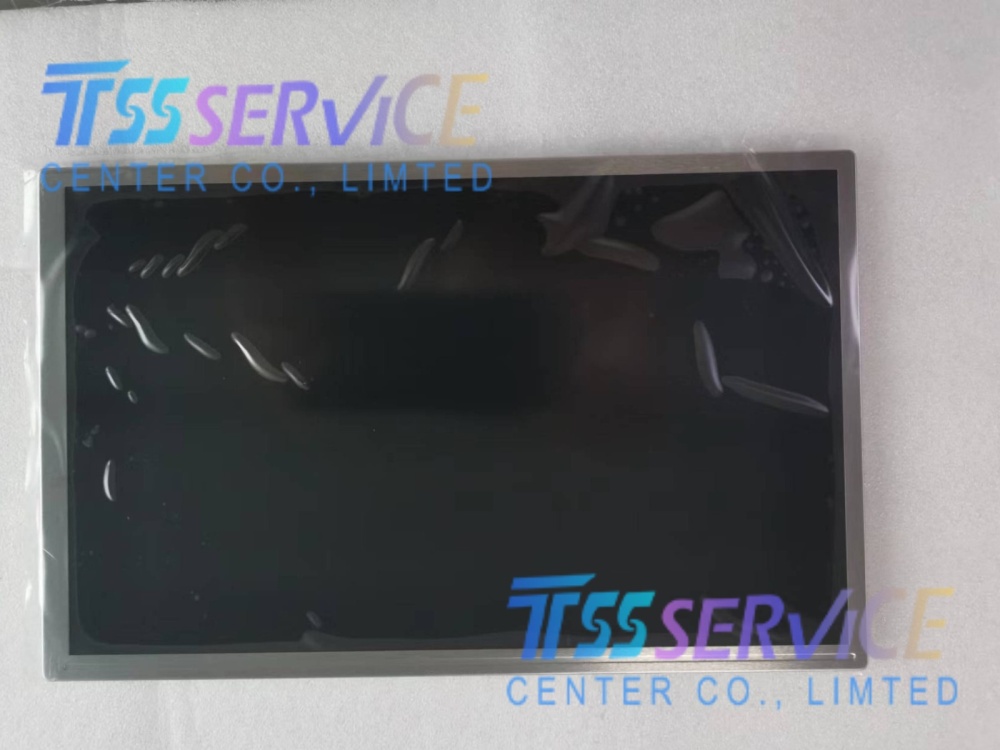

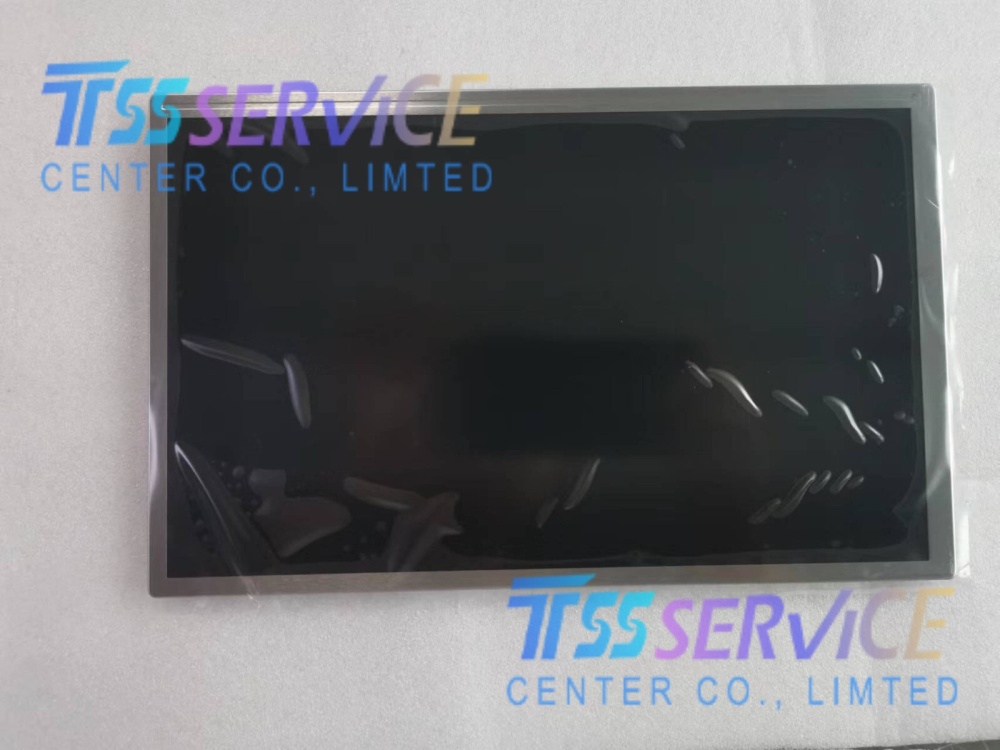

KOE TX29D200VM0AAB 11.6 Inch 1920×1080 Industrial TFT LCD Panel

Spec Item	Parameter Details
Model Number	TX29D200VM0AAB
Brand	KOE (Hitachi / JDI)
Diagonal Size	11.6 inch
Panel Technology	a-Si TFT-LCD, IPS, Normally Black, Transmissive
Native Resolution	1920(RGB) × 1080 , 16:9 Landscape
Pixel Pitch	0.1335 × 0.1335 mm
Active Display Area (AA)	256.32 (W) × 144.18 (H) mm
Outline Dimension	275.0 × 163.8 × 11.6 mm
Typical Brightness	1200 cd/m² (Ultra High Brightness, Sunlight Readable)
Contrast Ratio	1300:1 (Typical)
Viewing Angle L/R/U/D (CR≥10)	85°/85°/85°/85° Full All-Angle IPS
Response Time	20 ms Typical
Color Depth	16.7 Million Full Colors
Backlight	WLED, Lifespan ≥70,000 Hours, Integrated LED Driver
Signal Interface	2 Channel 8-bit LVDS, 50 Pins Connector
Supply Voltage (VDD)	3.3 V Typical
Vibration Resistance	5.0G Rugged Industrial Grade
Surface Treatment	Hard Anti-Glare Coating, Anti-reflection
Touch Function	Non-Touch, Compatible with external capacitive/resistive touch glass
Operating Temperature	-40 ℃ ~ +85 ℃
Storage Temperature	-40 ℃ ~ +90 ℃
Core Features	Sunlight readable, ultra-wide temperature, rugged shock & vibration resistance, full IPS viewing angle, long industrial lifecycle
