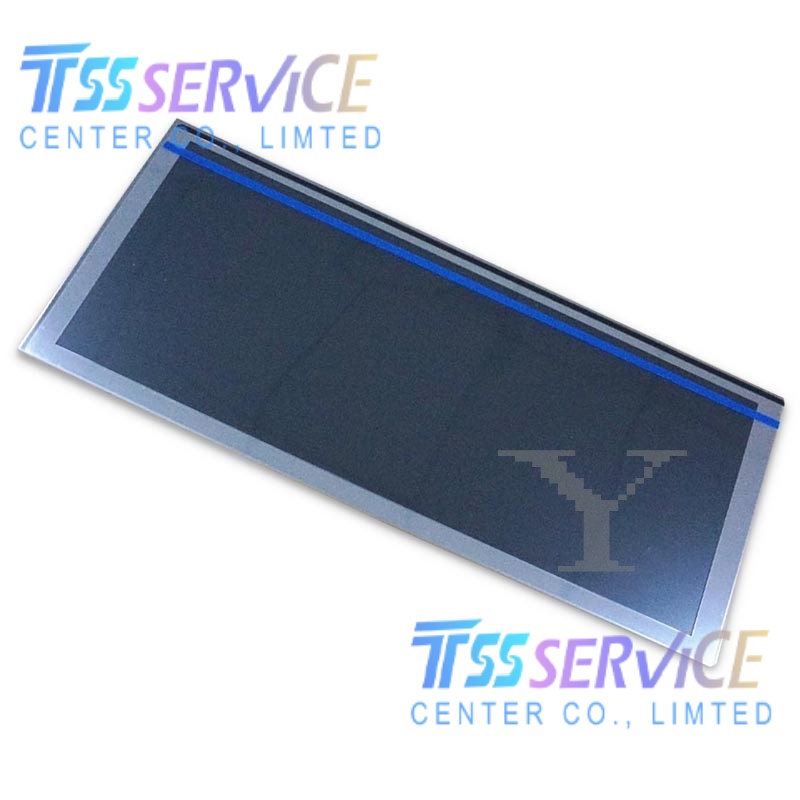

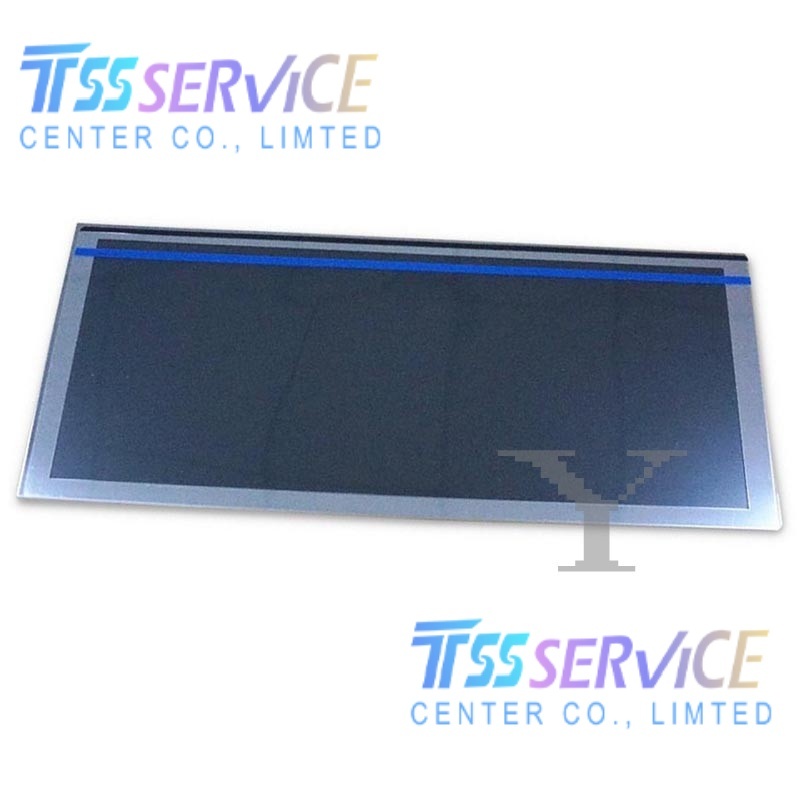

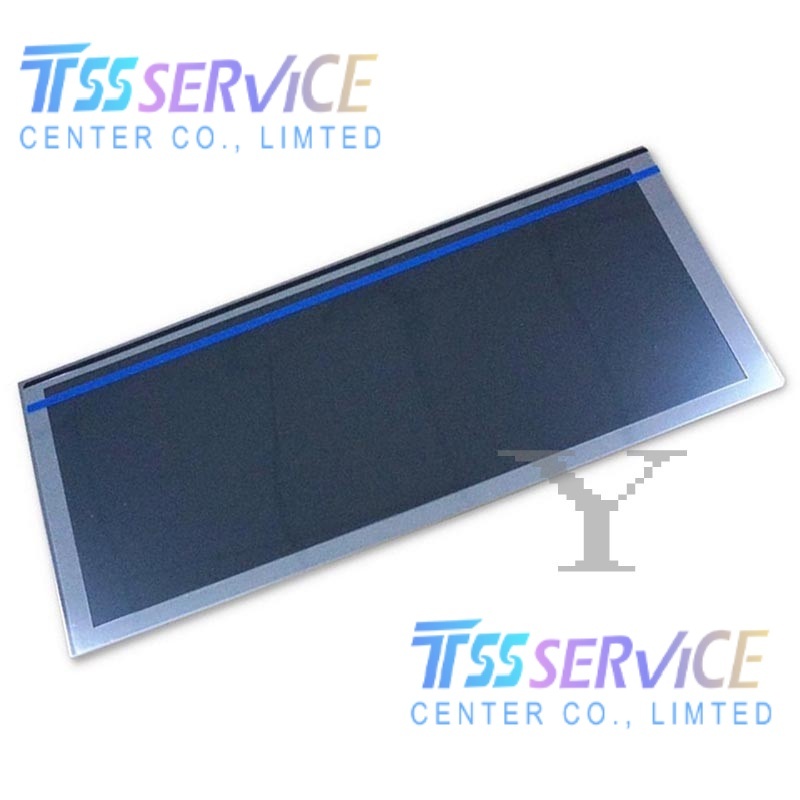

Hitachi/KOE TX31D203VM0EAB 12.3" 1920x720 IPS WLED Wide Temp Automotive LCD Display

Name: Hitachi/KOE TX31D203VM0EAB 12.3" 1920x720 IPS WLED Wide Temp Automotive LCD Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX31D203VM0EAB
Price: 328 USD
Availability: InStock

SKU: TX31D203VM0EAB

Model: TX31D203VM0EAB
Screen Size: 12.3 inch
Resolution: 1920(RGB) × 720, 8:3 Aspect Ratio
Panel Type: a-Si TFT-LCD, LCM

0.0 (0 Reviews)

0 Sold

~~$330.00~~ $328.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Hitachi/KOE TX31D203VM0EAB 12.3" 1920x720 IPS WLED Wide Temp Automotive LCD Display

Item	Specification
Model	TX31D203VM0EAB
Brand	Hitachi
Screen Size	12.3 inch
Resolution	1920(RGB) × 720, 8:3 Aspect Ratio
Panel Type	a-Si TFT-LCD, LCM
Display Mode	IPS, Normally Black, Transmissive
Display Area	292.032(W) × 109.512(H) mm
Outline Dimension	333.1(W) × 150.5(H) × 21.6(D) mm
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.) (CR ≥ 10)
View Direction	Symmetry
Response Time	25 ms (Typ.) (Tr + Td)
Display Colors	16.7M Colors, 73% NTSC
Light Source	WLED, 50K hrs Lifespan, With LED Driver
Interface	LVDS (2 ch, 8-bit), 51-pin Connector
Input Voltage	3.3V (Typ.)
Frequency	60Hz
Touch Screen	Without
Surface	-
Weight	600g (Typ.)
Operating Temperature	-40°C ~ +85°C
Storage Temperature	-40°C ~ +90°C
Vibration Resistance	5.0G (49.0 m/s²)
Dot Layout	RGB Vertical Stripe

Applications

Automotive Displays: Digital instrument clusters, center information displays (CID), and rear-seat entertainment systems.
Industrial Controls: Rugged HMI, factory automation terminals, and process control panels.
Marine & Heavy Equipment: Construction machinery dashboards, marine navigation displays, and agricultural vehicle monitors.
Outdoor Kiosks & POS: High-brightness public information terminals and outdoor payment systems.
Medical & Industrial Test Equipment: Diagnostic devices requiring wide temperature and vibration resistance.
