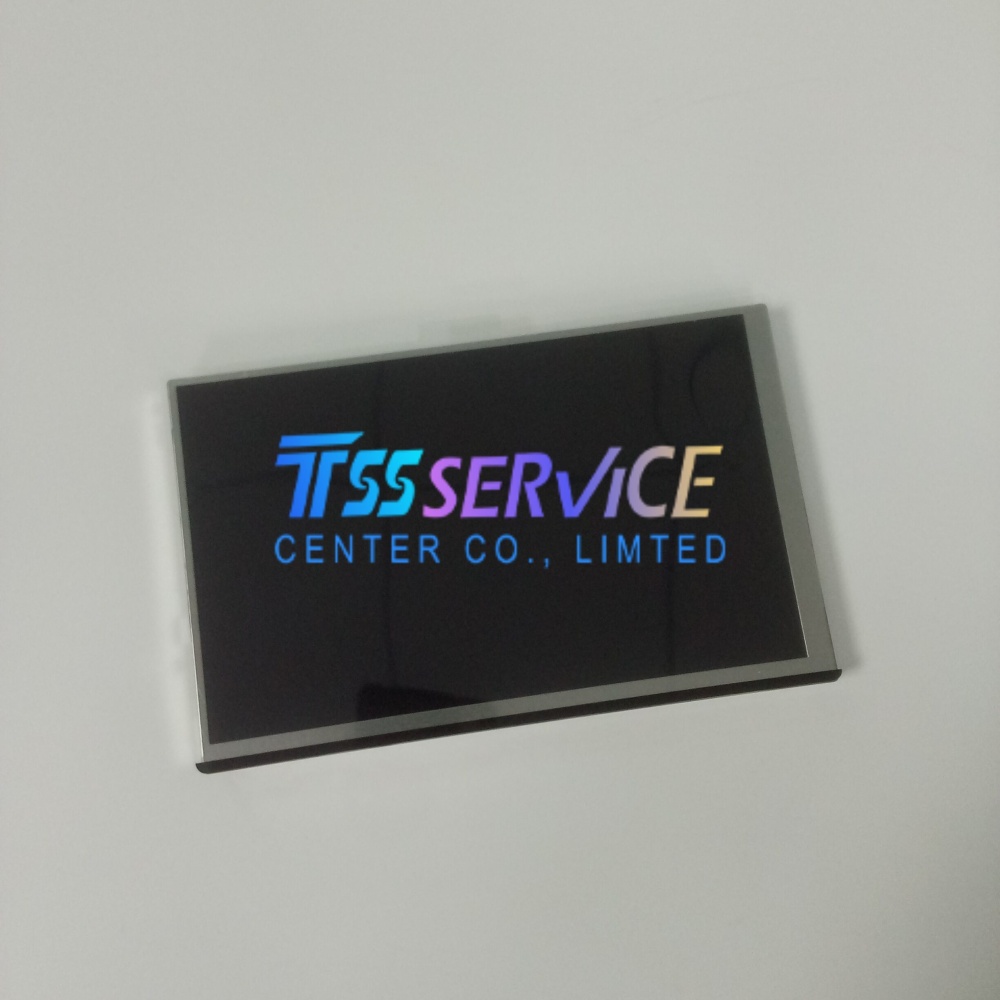

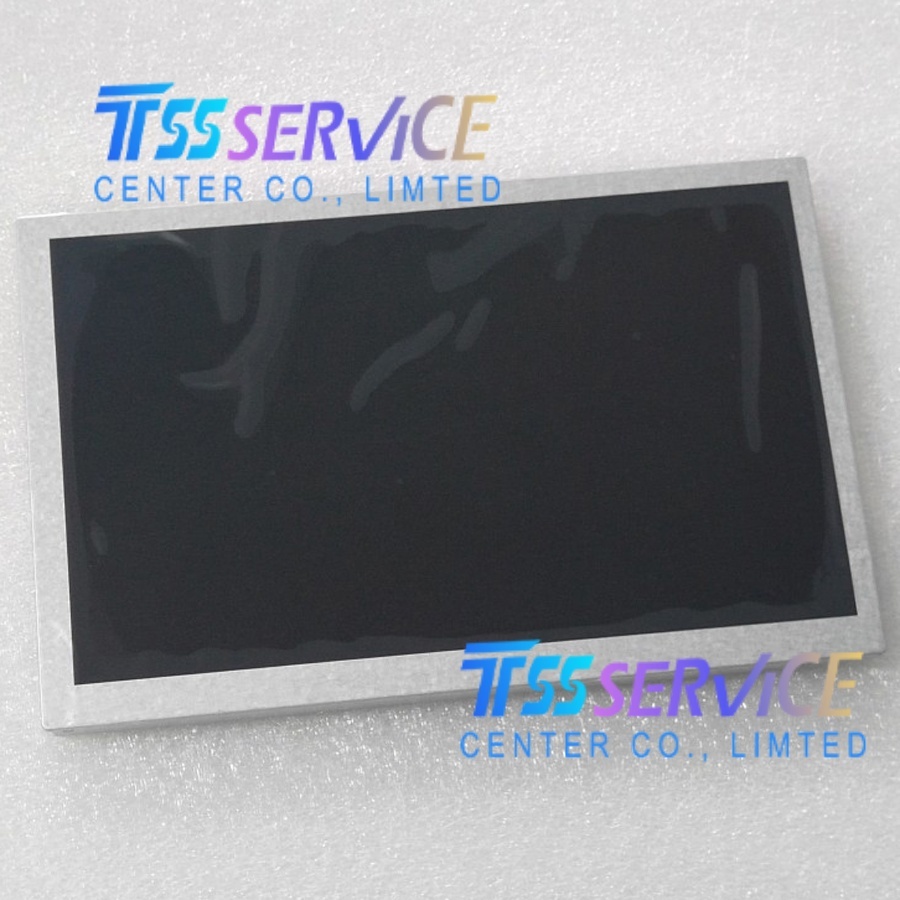

KOE 12.1 inch 1024×768 LCD Panel TX31D207VM0BAB For Industrial

Name: KOE 12.1 inch 1024×768 LCD Panel TX31D207VM0BAB For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX31D207VM0BAB
Price: 305 USD
Availability: InStock

SKU: TX31D207VM0BAB

Model: TX31D207VM0BAB
Diagonal Size: 12.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Number: 1024(RGB)×768, 4:3, XGA
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$330.00~~ $305.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KOE 12.1 inch 1024×768 LCD Panel TX31D207VM0BAB For Industrial

Parameter	Details
Model	TX31D207VM0BAB
Brand	KOE (JDI)
Panel Size	12.1 inches (diagonal)
Resolution	1024 × 768 (XGA, 105 PPI)
Display Type	a‑Si TFT‑LCD, IPS, Normally Black, Transmissive
Active Area	245.76 (W) × 184.32 (H) mm
Outline Dimension	260.5 (W) × 203.0 (H) × 9.5 (D) mm
Brightness	1000 cd/m² (Typ.) – High Brightness
Contrast Ratio	1000:1 (Typ.)
Viewing Angle	85°/85°/85°/85° (L/R/U/D, IPS Super Wide)
Backlight	4‑string WLED, 100,000 hrs lifespan, with driver

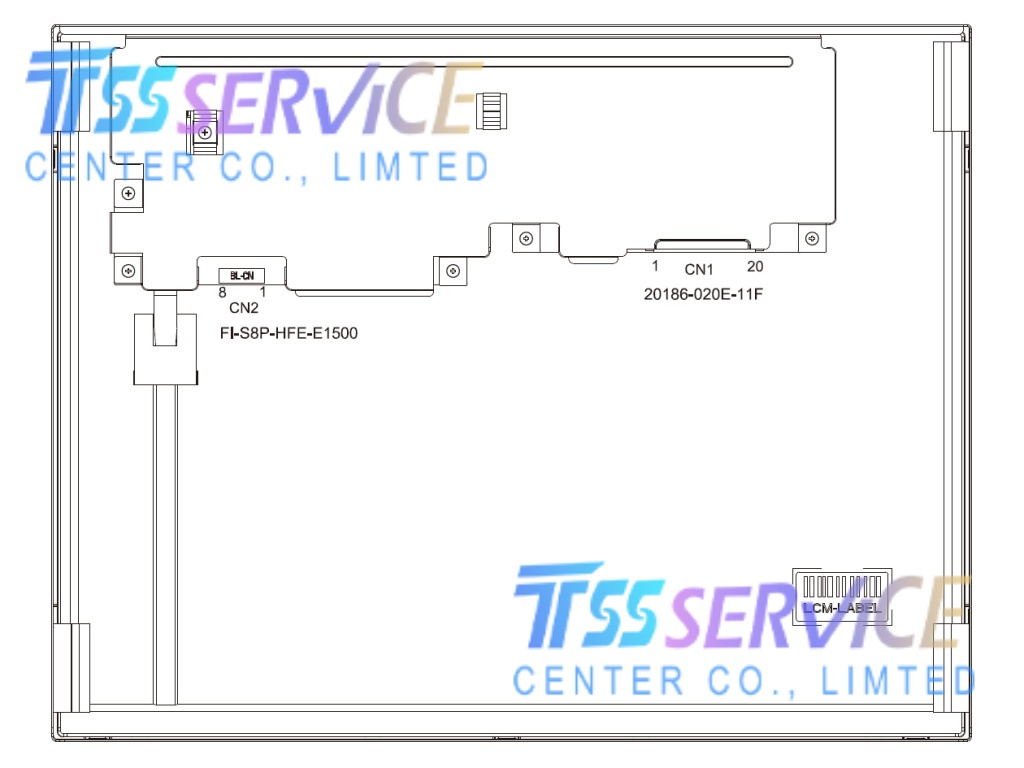

Interface	LVDS (1 ch, 8‑bit), 20‑pin connector
Operating Voltage	3.3V
Operating Temperature	−30°C ~ +80°C
Storage Temperature	−40°C ~ +80°C
Weight	514 g (Typ.)
RoHS Compliance	Yes

Applications

Industrial Control: High‑end HMI, industrial PCs, CNC/robotics panels, outdoor industrial displays.
Medical Equipment: Surgical monitors, diagnostic imaging, patient monitoring systems (high reliability & wide temp).
Outdoor & Kiosk: Outdoor digital signage, ticket/vending machines, ATM, gas station displays (1000 cd/m² sunlight readable).
Transportation: Railway/metro cabin displays, marine navigation, heavy‑duty vehicle dashboards (vibration & wide temp resistant).
Others: Aerospace displays, high‑brightness projectors, industrial touch monitors (compatible with capacitive/resistive touch).
