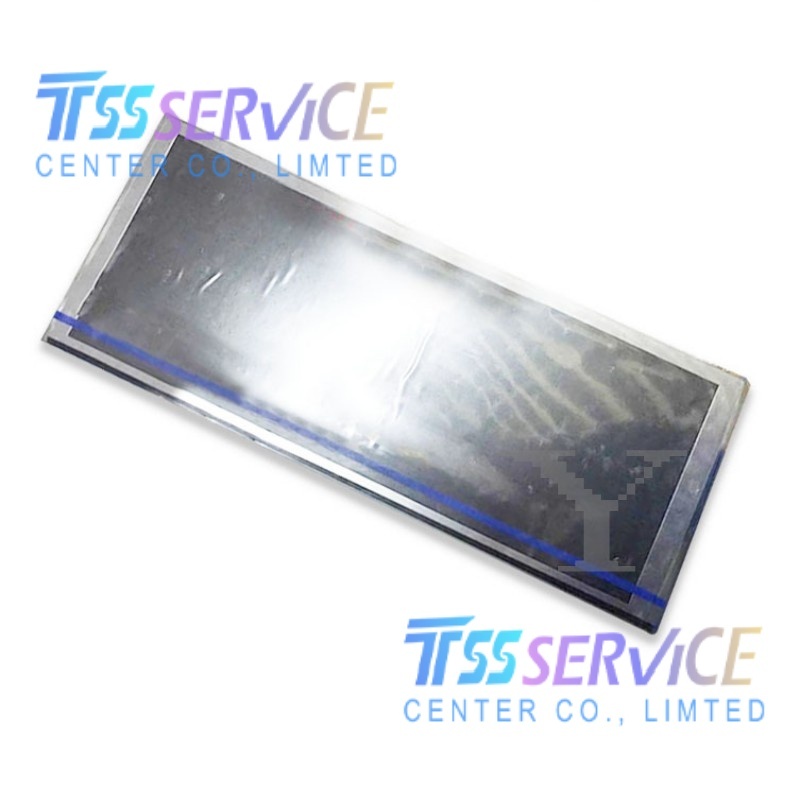

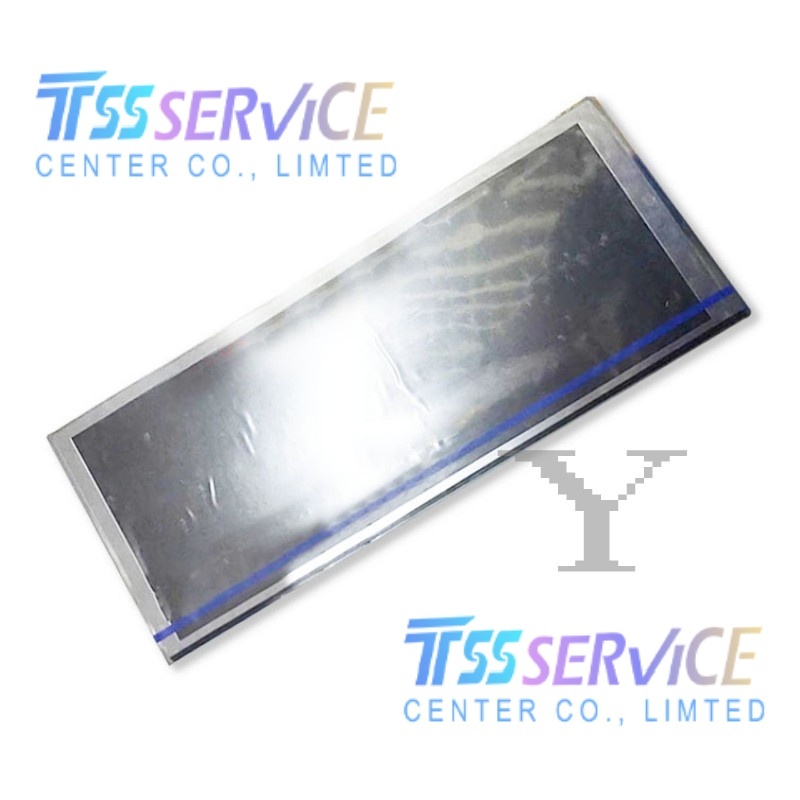

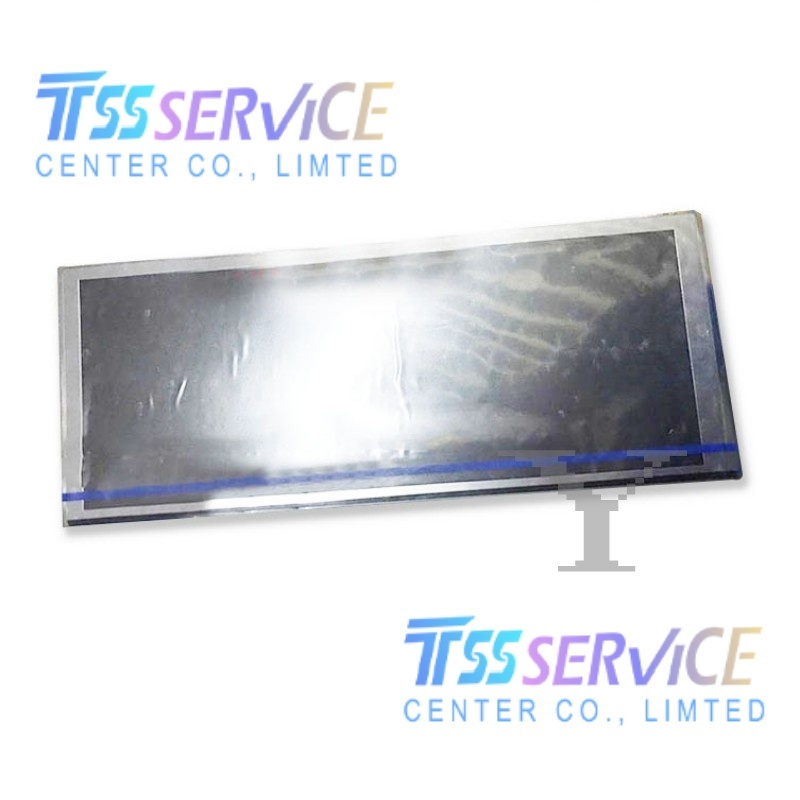

TX31D38VM2BAA 12.3 Inch Hitachi /KOE 1280×480 TFT LCD Screen Display Panel for Industrial

Name: TX31D38VM2BAA 12.3 Inch Hitachi /KOE 1280×480 TFT LCD Screen Display Panel for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX31D38VM2BAA
Price: 270 USD
Availability: InStock

SKU: TX31D38VM2BAA

Model Number: TX31D38VM2BAA
Brand: HITACHI / KOE Industrial a-Si TFT-LCD LCM
Diagonal Display Size: 12.3 Inch Ultra-Wide Bar Landscape
Native Resolution: 1280(RGB) × 480 DVGA
Pixel Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$275.00~~ $270.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TX31D38VM2BAA 12.3 Inch Hitachi /KOE 1280×480 TFT LCD Screen Display Panel for Industrial

Item	Specification Parameter
Model Number	TX31D38VM2BAA
Brand	HITACHI / KOE Industrial a-Si TFT-LCD LCM
Diagonal Display Size	12.3 Inch Ultra-Wide Bar Landscape
Native Resolution	1280(RGB) × 480 DVGA, Extra Wide Stripe Ratio, 110 PPI
Pixel Layout	RGB Vertical Stripe
Panel Display Mode	TN, Normally White, Transmissive
Active Display Area	293.76 (W) × 110.16 (H) mm
Overall Outline Dimension	320 (W) × 130 (H) × 13.3 (D) mm
Max Panel Weight	586g (Typ.)
Typical Brightness	1000 cd/m² Ultra High Brightness (Sunlight Readable)
Typical Contrast Ratio	800:1 (TM Transmission Mode)
Viewing Angle L/R/U/D (CR≥10)	80° / 80° / 60° / 80°
Typical Response Time (Tr+Td)	25 ms
Refresh Frequency	60Hz Standard Industrial Rate
Display Color Performance	262K True Colors (6-bit RGB), 60% NTSC Color Gamut
Backlight Light Source	Built-in WLED with Integrated LED Driver, Lifespan 70,000 Hours
Signal Interface	Single Channel LVDS 6-bit, 20Pin FPC Connector
Typical Input Logic Voltage	3.3V
Touch Screen Function	Without Touch Digitizer
Operating Temperature Range	-30℃ ~ +80℃ Ultra Wide Industrial Temp Range
Storage Temperature Range	-40℃ ~ +90℃ Extreme Low & High Temp Storage Support
Vibration & Shock Resistance	Industrial Grade Anti-Vibration Structure for Vehicle Equipment

Applications

Automotive Instrument Cluster & Vehicle Central Displays
Car dashboard ultra-wide instrument panels, commercial truck & bus digital gauge screens, construction machinery cabin main parameter dashboards, forklift vehicle-mounted monitoring displays, new energy vehicle central information bar screens.
Outdoor Harsh Environment Industrial HMI & Automation Terminals
Factory outdoor wide-format monitoring workstations, mining equipment parameter bar display consoles, packaging machine long-strip human-machine interfaces, assembly line visual inspection wide screens, CNC auxiliary status monitoring panels.
Construction, Agricultural & Special Engineering Vehicle On-board Displays
Excavator cabin sunlight-readable main dashboards, tractor integrated monitoring bar screens, heavy-duty truck digital instrument terminals, agricultural spraying machinery wide-format control display modules, port container equipment monitoring panels.
Outdoor Self-Service & Centralized Monitoring Equipment
Outdoor new energy charging pile long data display screens, factory safety centralized wide monitoring terminals, industrial information query kiosk bar display modules, marine miniature sunlight-readable instrument panels, roadside roadside inspection station display screens.
Laboratory & Special Precision Test Measuring Instruments
Industrial long-strip signal analysis equipment monitors, power energy centralized quality monitoring wide screens, environmental big data long data recording terminals, pipeline multi-parameter inspection bar display equipment.
