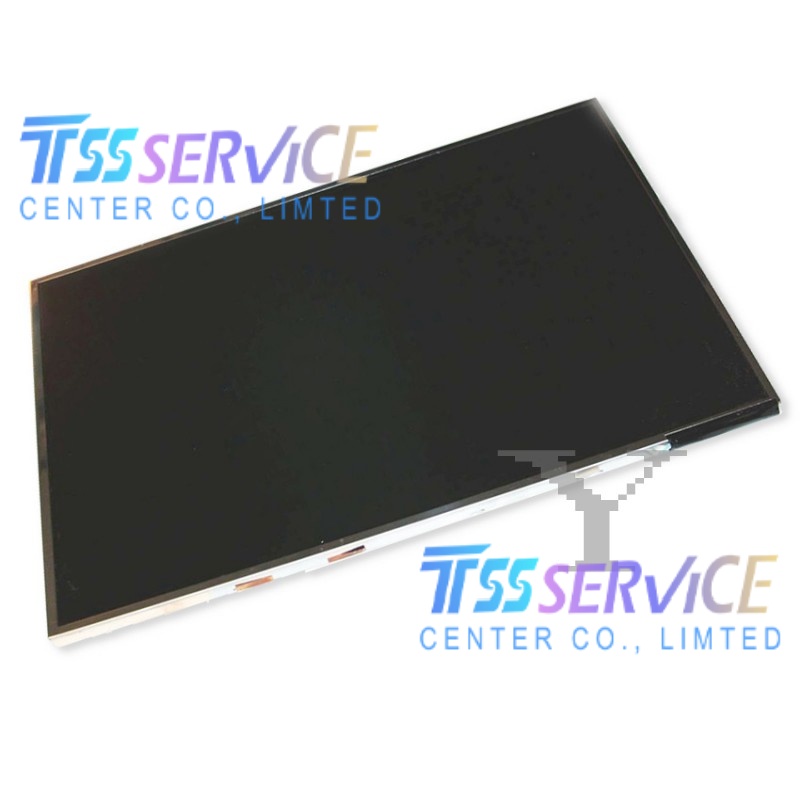

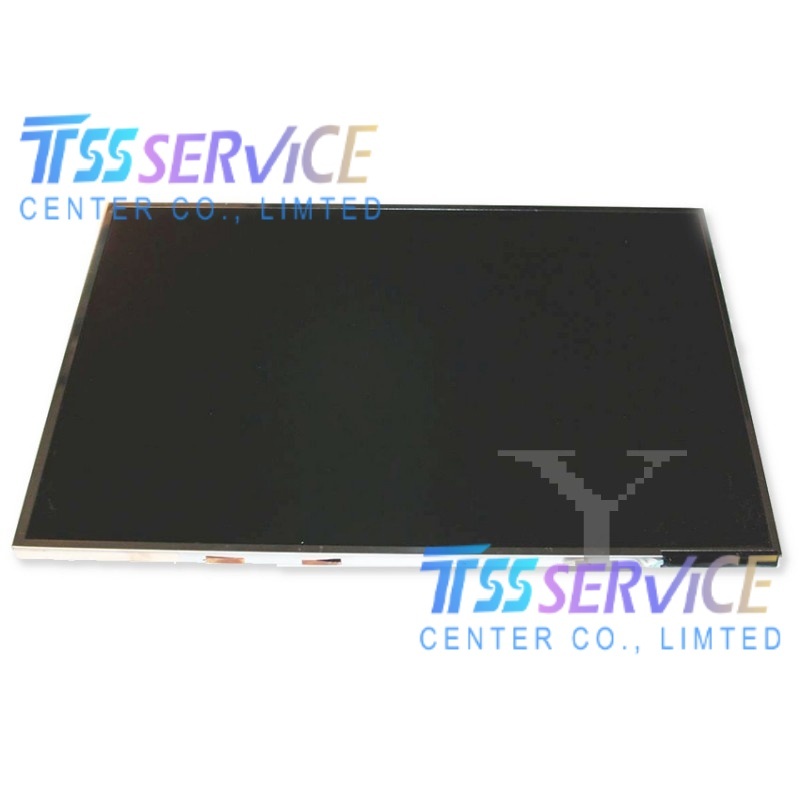

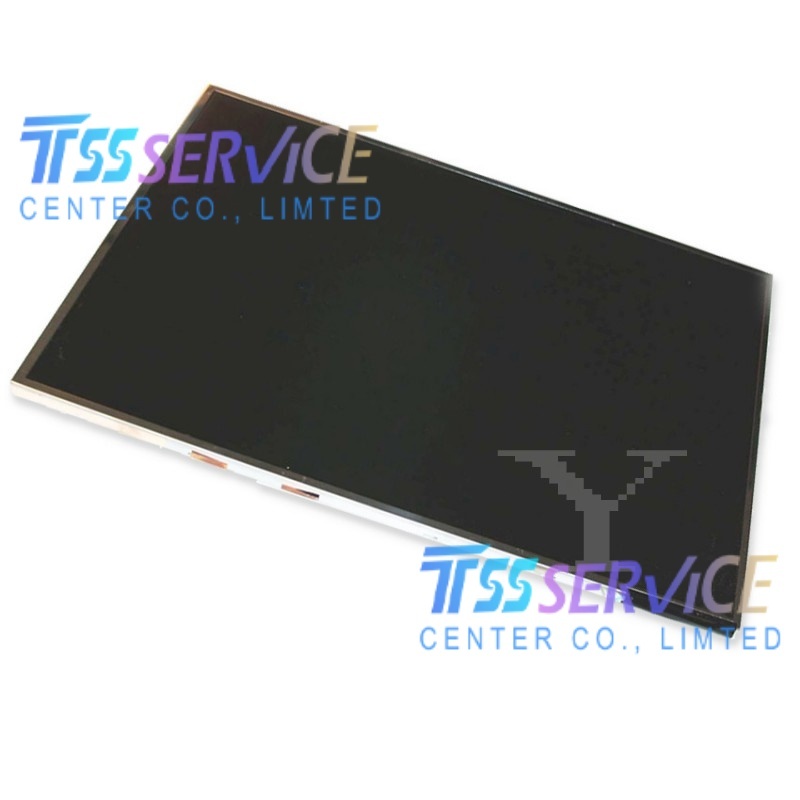

TX38D09VM0CAA KOE 15" LCD Panel Screen For Industrial
| Parameter |
Value |
| Brand |
Hitachi (KOE) |
| Model |
TX38D09VM0CAA |
| Panel Type |
a‑Si TFT‑LCD, Transmissive, Normally Black |
| Diagonal Size |
15.0 inches |
| Resolution |
1280(RGB) × 240 |
| Pixel Format |
RGB Vertical Stripe |
| Aspect Ratio |
~16:3 (Ultra‑wide bar type) |
| Active Area |
372.48(W) × 70.42(H) mm |
| Outline Dimension |
386.82(W) × 85.57(H) × 13.06(D) mm |
| Pixel Pitch |
0.291(W) × 0.291(H) mm |
| Brightness |
300 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) |
| Display Colors |
262K (6‑bit) |
| Viewing Angle |
80/80/80/80° (Typ., CR≥10) |
| Backlight |
WLED, Edge‑lit, 70,000 hrs (Typ.) |
| Interface |
LVDS, 20‑pin connector |
| Supply Voltage |
3.3V (LCD) / 12V (Backlight) |
| Power Consumption |
1.65W (LCD) / 4.56W (Backlight) |
| Refresh Rate |
60 Hz |
| Operating Temp |
0°C to +50°C |
| Storage Temp |
−20°C to +60°C |
| Weight |
556g (Typ.) |
| RoHS |
Compliant |
| Touch Panel |
None |
TX38D09VM0CAA is an ultra‑wide bar‑type display optimized for
long‑strip information display, industrial control, transportation, and commercial signage where horizontal space is limited but long‑format content is required.
