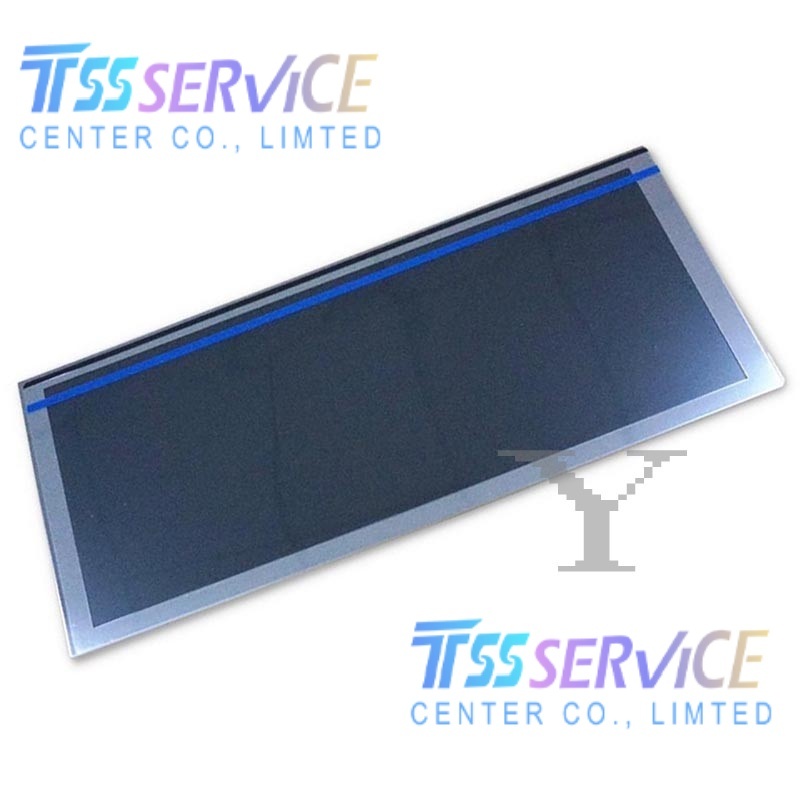

KOE TX40D200VM0BAA 15.8 Inch TFT LCD Panel 2560×600 Industrial Display Screen

Name: KOE TX40D200VM0BAA 15.8 Inch TFT LCD Panel 2560×600 Industrial Display Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX40D200VM0BAA
Price: 400 USD
Availability: InStock

SKU: TX40D200VM0BAA

Model Number: TX40D200VM0BAA
Diagonal Screen Size:15.8 inch (Native Ultra-Wide Bar)
Panel Type: a-Si TFT-LCD, LCM Module
Native Resolution: 2560(RGB) × 600, Aspect Ratio >3:1
Pixel Structure: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$410.00~~ $400.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KOE TX40D200VM0BAA 15.8 Inch TFT LCD Panel 2560×600 Industrial Display Screen

Item	Detailed Parameter
Manufacturer	KOE
Model Number	TX40D200VM0BAA
Diagonal Screen Size	15.8 inch (Native Ultra-Wide Bar)
Panel Type	a-Si TFT-LCD, LCM Module
Native Resolution	2560(RGB) × 600, Aspect Ratio >3:1
Pixel Structure	RGB Vertical Stripe
Active Display Area	389.76(H) × 91.35(V) mm

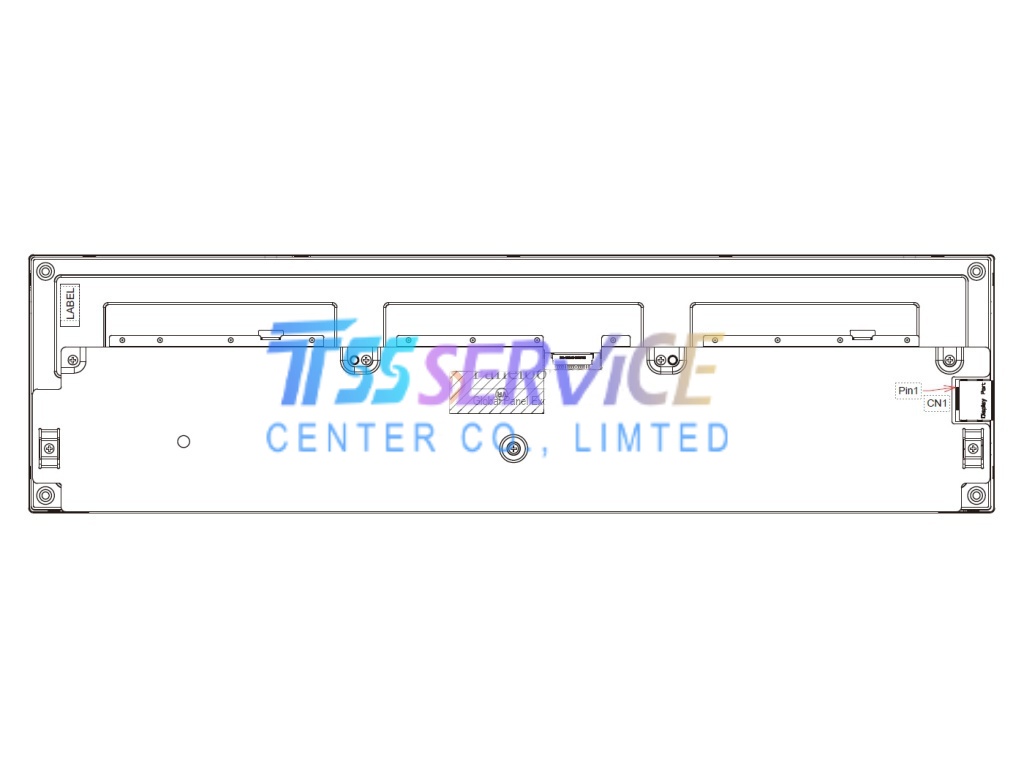

Overall Outline Dimension	409.8(H) × 109.5(V) × 16.9(D) mm
Typical Weight	662g
Surface Treatment	Antiglare Matte
Typical Luminance (Brightness)	370 cd/m²
Typical Contrast Ratio	800:1 (TM Mode)
Viewing Angle (U/D/L/R)	85° / 85° / 85° / 85° (CR≥10)
Total Response Time	25ms (Tr+Td Typical)
View Direction	Symmetrical Full Angle
Display Mode	IPS, Normally Black, Transmissive
Display Colors	16.7M, 70% NTSC Color Gamut
Typical Total Power	6.6W
Backlight	WLED, 70,000 Hours Lifespan, With Built-in LED Driver
Refresh Frequency	60Hz
Touch Function	Without Touch Screen
Signal Interface	DisplayPort, 20 Pins Connector
Supply Voltage	12V (Typ.)
Operating Temperature	-20 ℃ ~ +70 ℃
Storage Temperature	-30 ℃ ~ +80 ℃
Vibration Resistance	2.0G (19.6 m/s²)
Grade Condition	Brand New Original Grade A, Fully Pre-tested
