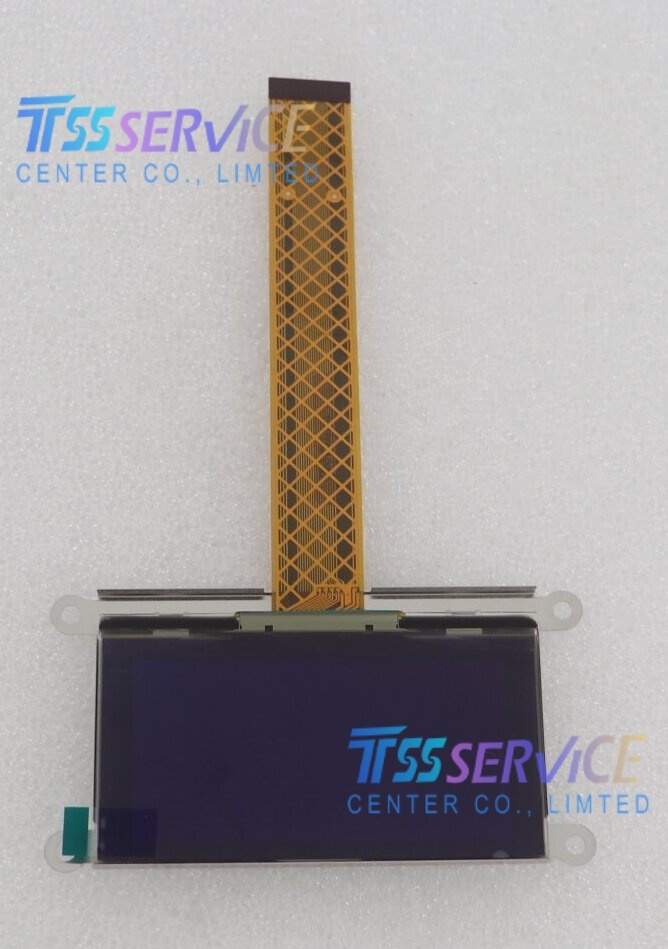

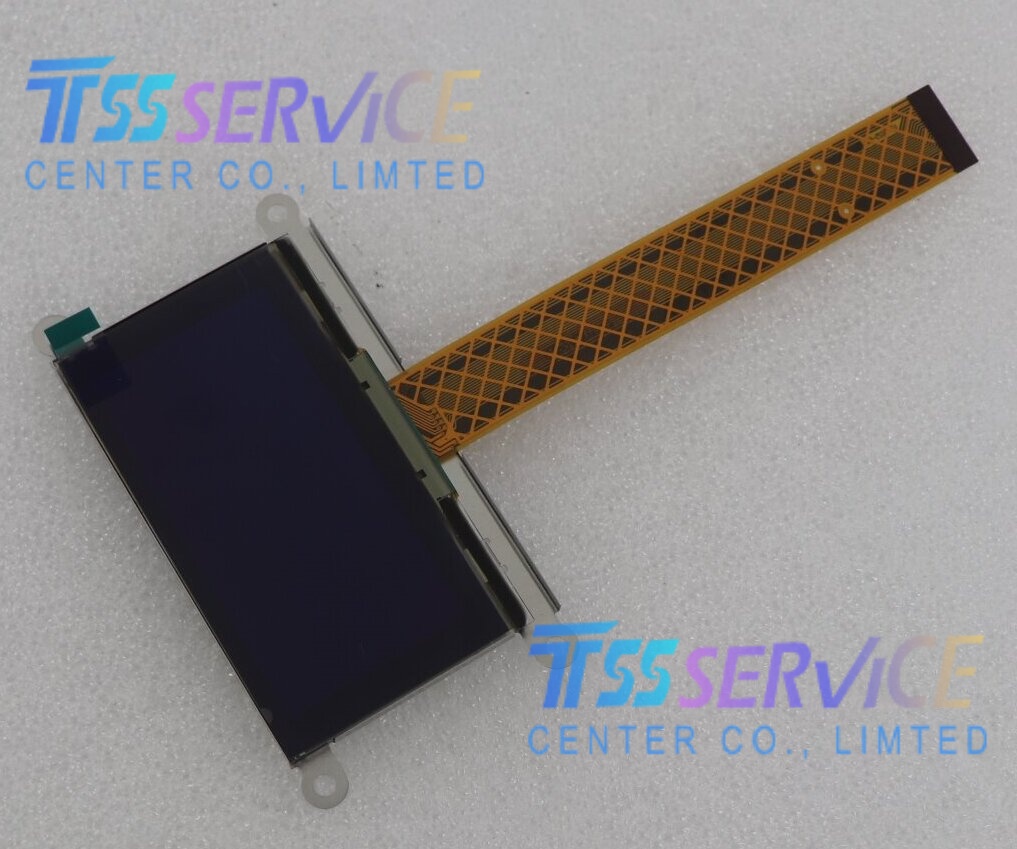

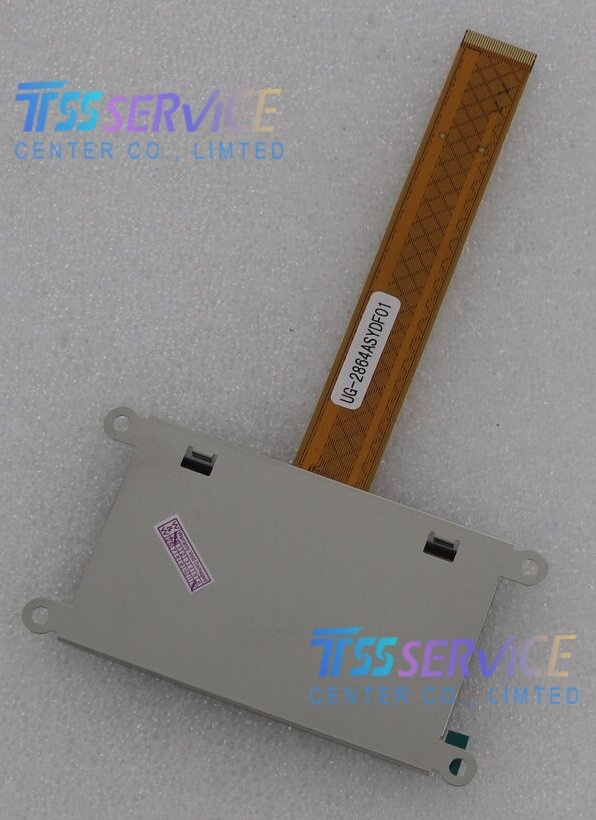

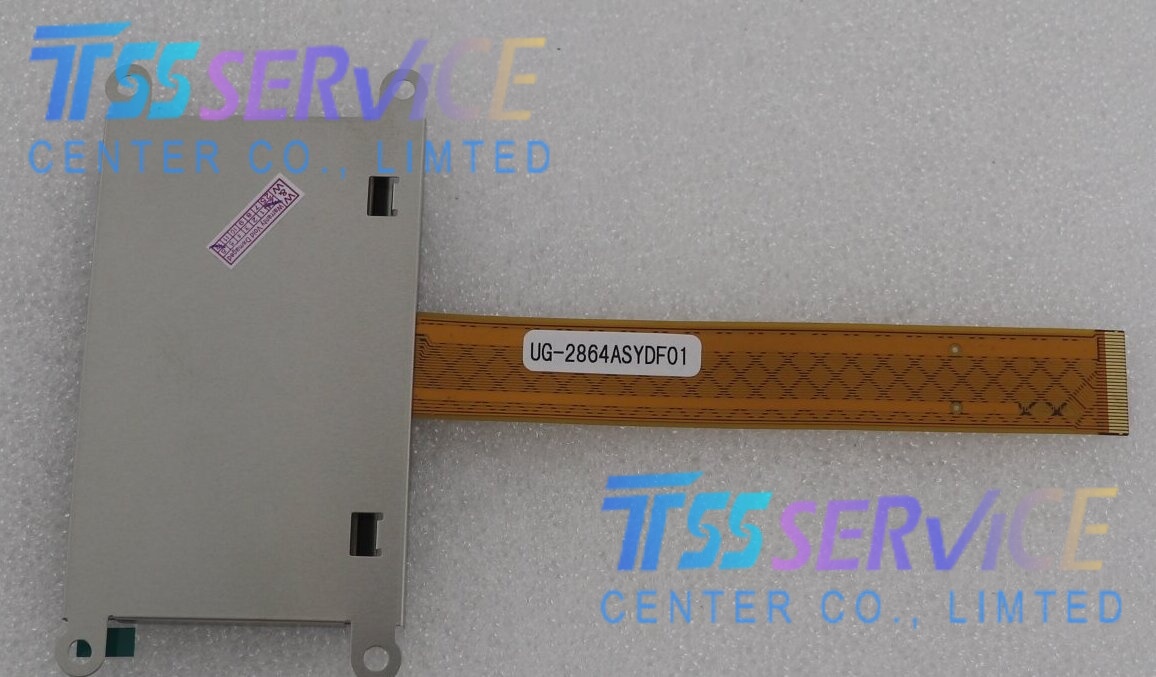

UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial

SKU: UG-2864ASYDF01
Model P/N: UG-2864ASYDF01
Diagonal Size: 2.7"
Panel Type: PM-OLED, OLED
Pixel Number: 128×64, 2:1
Pixel Format: Rectangle
0.0 (0 Reviews)
0 Sold
$32.00 $30.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
1/1
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
  • Description
UG-2864ASYDF01 2.7 inch 128×64 LCD panel Display For Industrial
Item Specification Unit
Manufacturer Univision (WiseChip) –
Model UG-2864ASYDF01 –
Diagonal Size 2.7 inch
Resolution 128 × 64 pixels
Display Type PM-OLED (Passive Matrix OLED) –
Color Monochrome (Yellow) –
Active Area 61.41 × 30.69 mm
Outline Dimension 73.0 × 41.86 × 2.0 mm
Pixel Pitch 0.48 × 0.48 mm
Brightness 100 (Typ.) cd/m²
Contrast Ratio 1,000:1 (Min.) –
Viewing Angle (L/R/U/D) 80/80/80/80 (Min.) deg
Backlight Self-illuminated (no backlight needed) –
Driver IC SSD1325 or equivalent –
Interface 8-bit 6800/8080 parallel, 4-wire SPI, I²C –
Supply Voltage 2.8 (logic) / 12 (OLED) V
Operating Temperature -30 ~ +70 °C
Storage Temperature -40 ~ +80 °C
RoHS Compliant –
Weight 21 g

Typical Applications

  • Industrial instruments and meters
  • Medical devices and patient monitors
  • Automotive and transportation displays
  • Consumer electronics and home appliances
  • POS terminals and small kiosks
  • Factory automation and control panels
