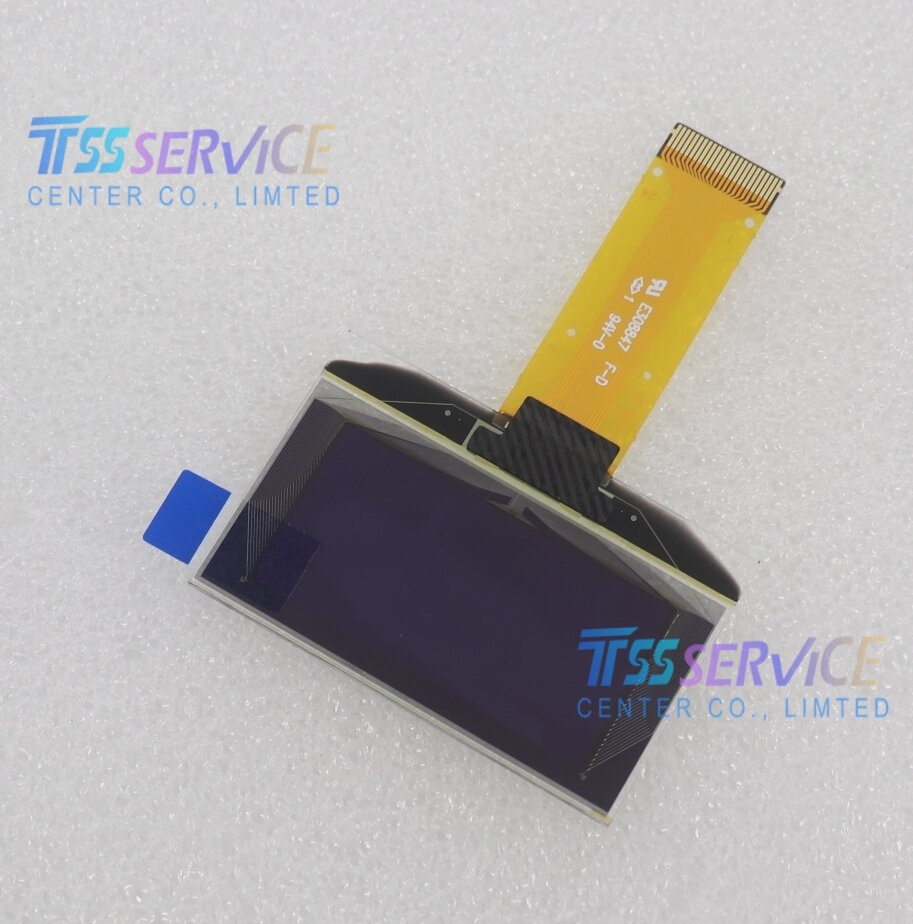

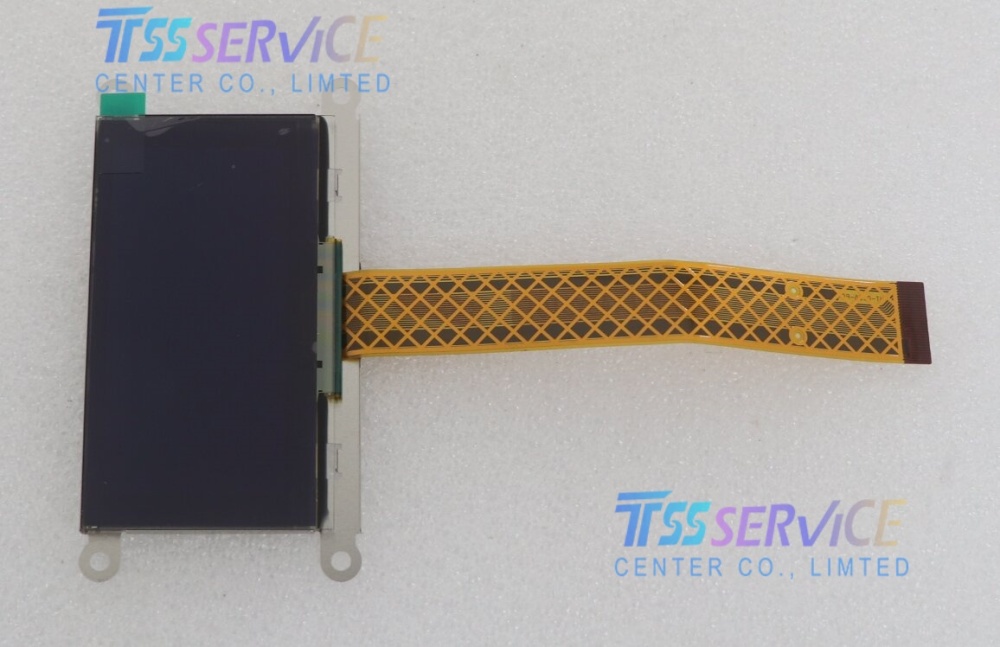

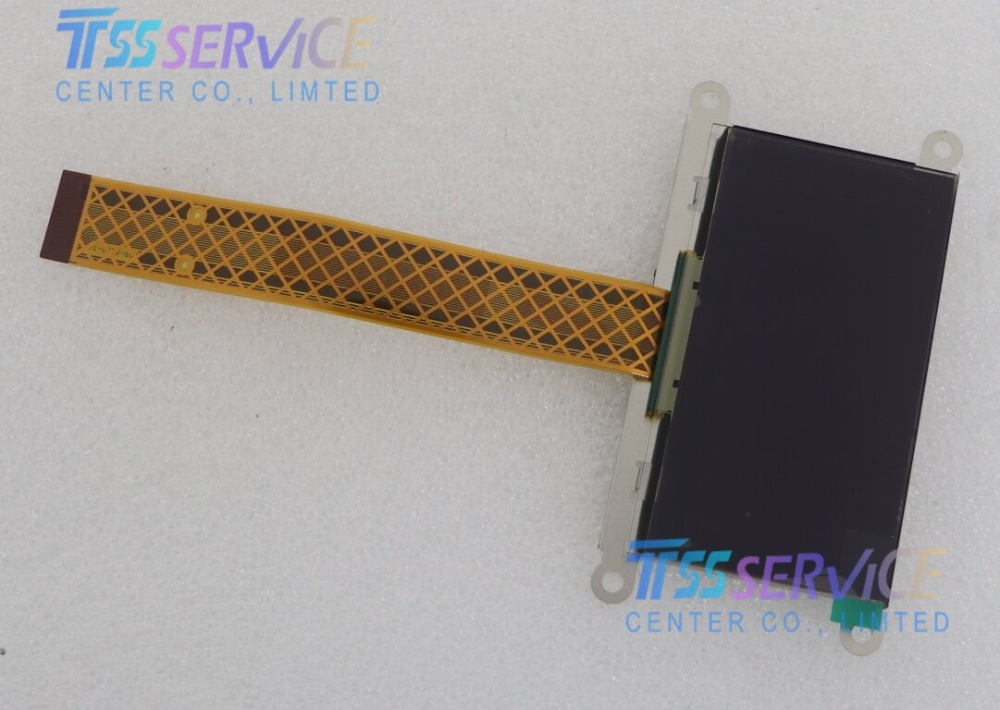

NEW UG-2864KSWLG01 is a 1.3-inch white PM-OLED LCD Display Screen For Industrial

SKU: UG-2864KSWLG01

Part no : UG-2864KSWLG01
Brand :  -
INCH :  1.3

Resolution 128 × 64

LCD Panel for Industrial Machine

0.0 (0 Reviews)
0 Sold
$5.20 $5.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • UG-2864KSWLG01
  • UG-2864KSWLG01
  • UG-2864KSWLG01
  • UG-2864KSWLG01
  • UG-2864KSWLG01
  • UG-2864KSWLG01
1/1
  • UG-2864KSWLG01
  • UG-2864KSWLG01
  • UG-2864KSWLG01
  • Description

UG-2864KSWLG01

UG-2864KSWLG01 is a 1.3-inch white PM-OLED module by WiseChip, featuring 128×64 resolution, 100 cd/m² brightness, and ultra-high contrast (10,000:1). With I2C/SPI/parallel interfaces, wide temperature range (-40°C ~ +70°C), and COG compact design, it’s ideal for low-power, high-visibility embedded applications.
Parameter Details
Model UG-2864KSWLG01
Brand WiseChip (UG/Univision)
Display Type PM-OLED (Passive Matrix OLED), COG
Diagonal Size 1.3 inches
Resolution 128 × 64 pixels, 110 PPI
Active Area (W×H) 29.42 × 14.7 mm
Outline Dimensions (W×H×D) 34.5 × 23 × 1.45 mm
Pixel Pitch 0.23 × 0.23 mm
Display Color Monochrome (Pure White)
Brightness 100 cd/m² (typical)
Contrast Ratio 10,000:1 (typical)
Viewing Angle 80°/80°/80°/80° (L/R/U/D, CR≥10)
Driver IC SSD1306 (built-in DC-DC)
Interface 3/4-wire SPI, I2C, 8-bit parallel (30-pin FPC)
Operating Voltage 3.3 VDC (typical)
Operating Temperature −40°C ~ +70°C
Storage Temperature −40°C ~ +85°C
Power Consumption ≤ 10 mA (active), ≤ 10 μA (sleep)
Weight Approx. 2 g
Certifications RoHS compliant
