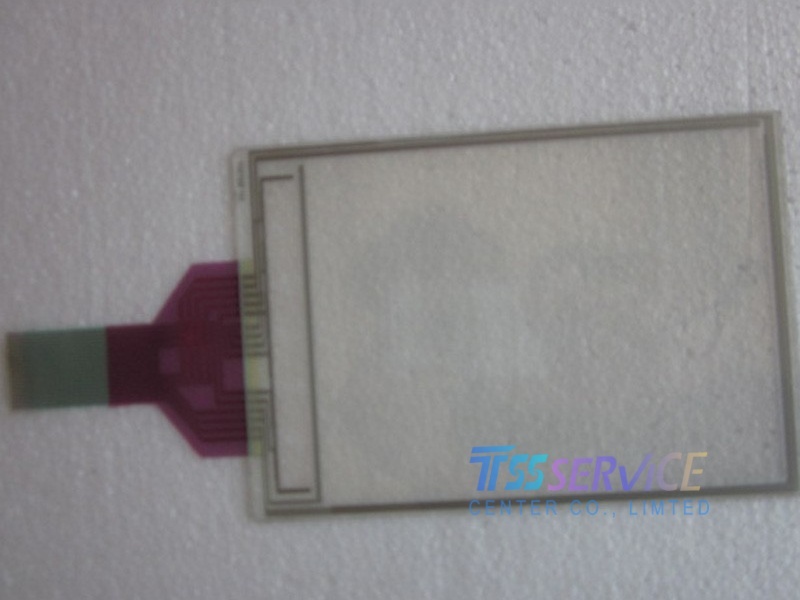

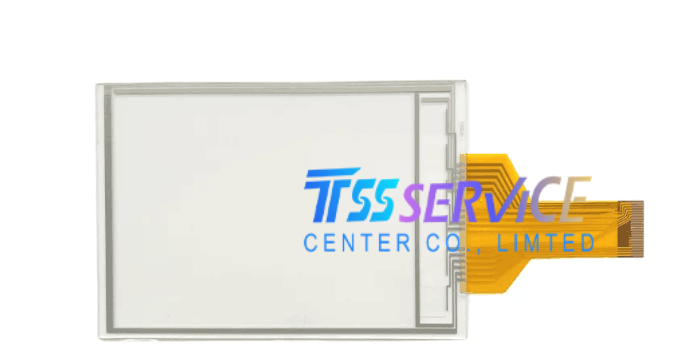

New Touch Screen Digitizer Touch glass UG230H-LS4

SKU: UG230H-LS4

Part no : UG230H-LS4
Brand :  Fuji
INCH :  5.7INCH

Resolution 320 × 240

LCD Glass for Industrial Machine

0.0 (0 Reviews)
0 Sold
$50.00 $48.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • New Touch Screen Digitizer Touch glass UG230H-LS4
  • New Touch Screen Digitizer Touch glass UG230H-LS4
  • New Touch Screen Digitizer Touch glass UG230H-LS4
  • New Touch Screen Digitizer Touch glass UG230H-LS4
1/1
  • New Touch Screen Digitizer Touch glass UG230H-LS4
  • New Touch Screen Digitizer Touch glass UG230H-LS4
  • Description

UG230H-LS4

UG230H-LS4 is a 5.7‑inch monochrome STN LCD HMI by Fuji Electric (UG230 Series), featuring analog resistive touch, QVGA 320×240, and 24 VDC power. Designed for cost‑sensitive industrial automation, it offers reliable performance, rich connectivity, and long‑term support for basic machine control and monitoring.
Parameter Details
Model UG230H-LS4
Brand Fuji Electric
Series UG230 (POD: Programmable Operation Display)
Display 5.7‑inch STN Monochrome LCD
Resolution 320 × 240 pixels (QVGA)
Display Colors Monochrome, 8 grayscale levels
Backlight CCFL (Cold Cathode Fluorescent Lamp)
Touch Type 4‑wire analog resistive touch screen
Input Method Finger, gloved hand, stylus
Power Supply DC 24V ±10%
Flash Memory Approx. 1.47 MB (display data)
SRAM Backup 128 KB (data retention)
Interfaces RS‑232C, RS‑422/485, USB (optional CF card via UG230A‑DCL)
Operating Temp 0°C ~ +50°C
Storage Temp −20°C ~ +60°C
Humidity 10%–90% RH (non‑condensing)
Protection Front panel IP65 (dust/water resistant)
Certifications CE, UL, cUL compliant
Weight Approx. 0.8 kg


  1. ☛Shipment:

    About the International Shipping:

    The products depending on the item's customs value,will be subject to the customs processing.

    As the buyer, you should be aware of:

    the delays from the customs inspection.

    the import duties and taxes which buyers must pay.

    The import duties and taxes are not included in the items fix price or shipping cost Cause these charges are the buyers' responsibility directly.

    We will ship By DHL/ Fedex/ 4PX express/ SF express
    L/T:3-4 working days



    ☛Delivery Details:

    We will arrange the shipment within 1-3 working days asap after got your payment. And the tracking number and commercial inovice will be given to the customers asap. (only the standard speedpak or expedited shipping service). Expedited Shipping by DHL/FEDEX/4PX express Courier etc. But sometimes it is highly depended on buyer's payment, the courier company and local customs/duties.



    ☛Shipment detail:

    box, including the seller's handling time, the buyers'destination ZIP Code, the time of the orders acceptance, shipping service selected and also the exact receipt of the cleared payment.

    So the delivery times may be vary, especially during the shipping high peak periods.

    Hope you understand, thanks!



    Return Policy:

    After received the items and in the event of an issue arising,please send us messages ASAP (Warranty  90 days )

    Whether the money back or replacement (at buyer's choice)

    Please provide the detailed explanation, photos or videos needed when send us messages.

    Unwanted product returns: The merchandise must be in the new, unused, uninstalled condition only.



    ☛About us:

    We have specialized in LCD-Business for 20 years(NEC, SHARP, HITACHI, AUO, SAMSUNG, KOE, TIANMA LG Display, Samsung, Innolux, SHARP, MISTBISH,etc)

    We are willing to provide the good service,professional technology and excellent products to you.

    If you have any general questions and please contact us via sally@winnihk.com we will give you a exact reply within 24hours
