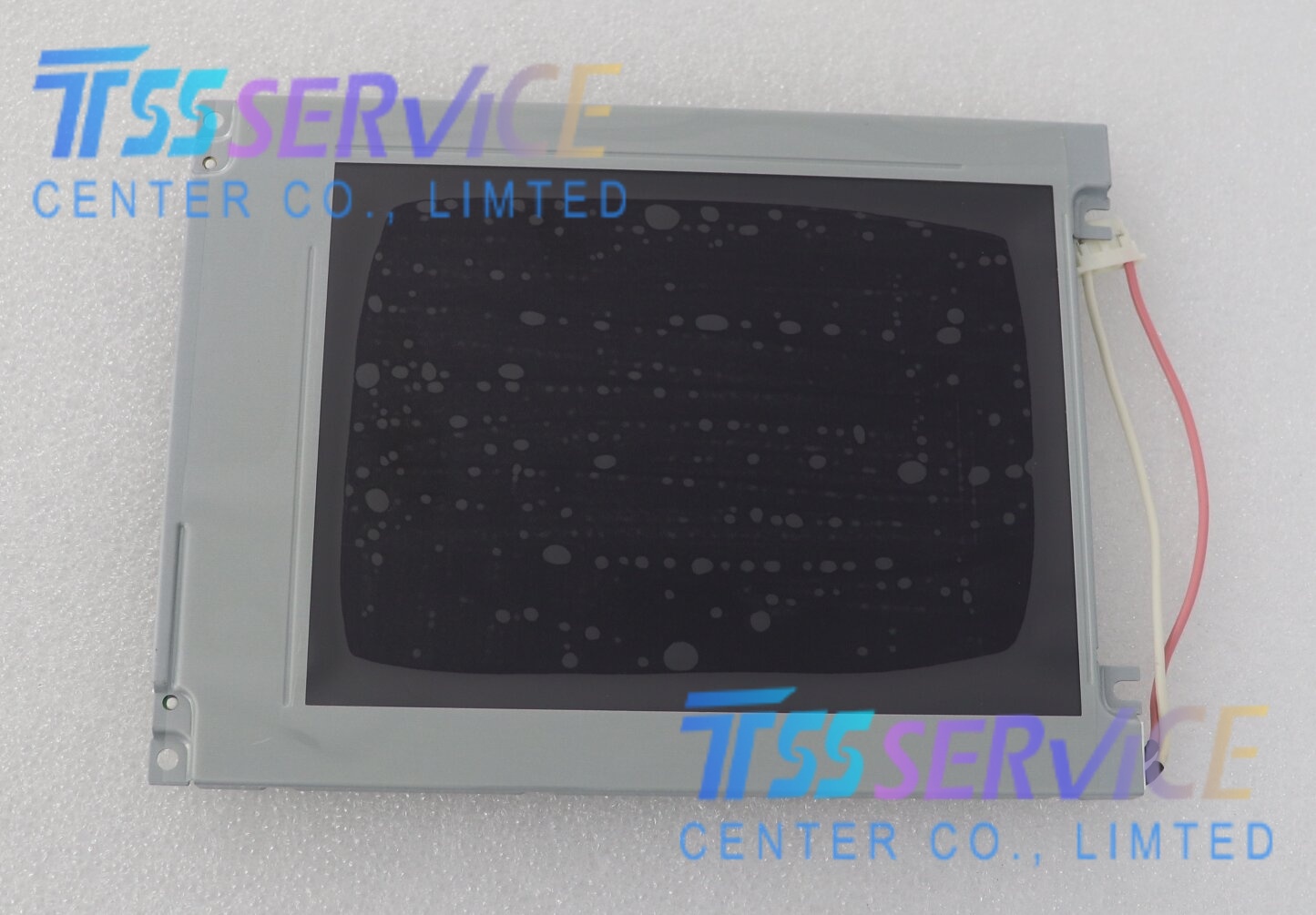

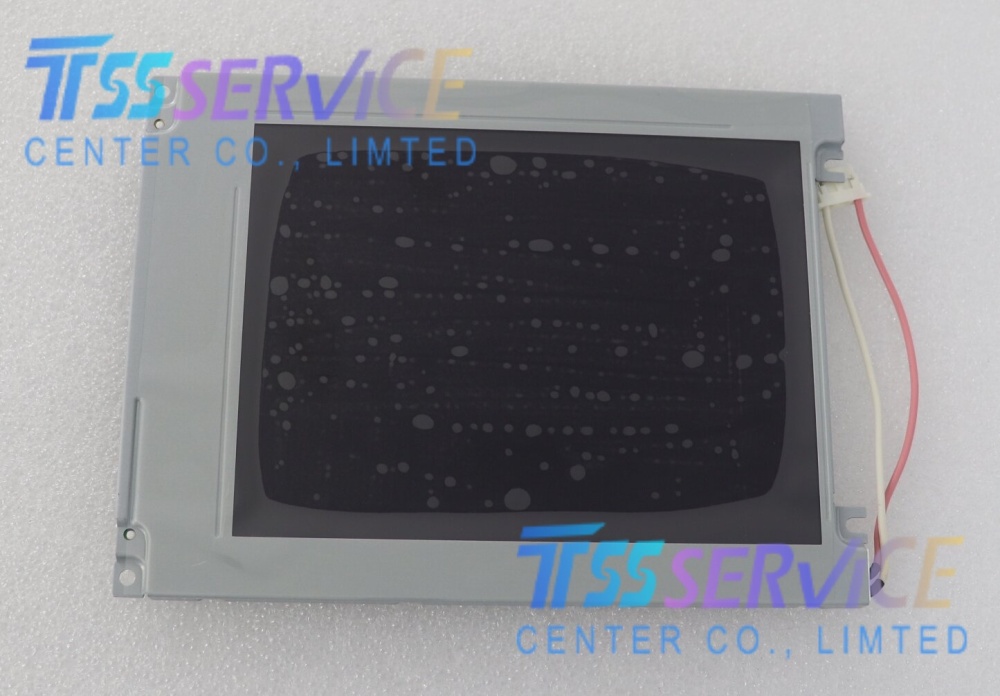

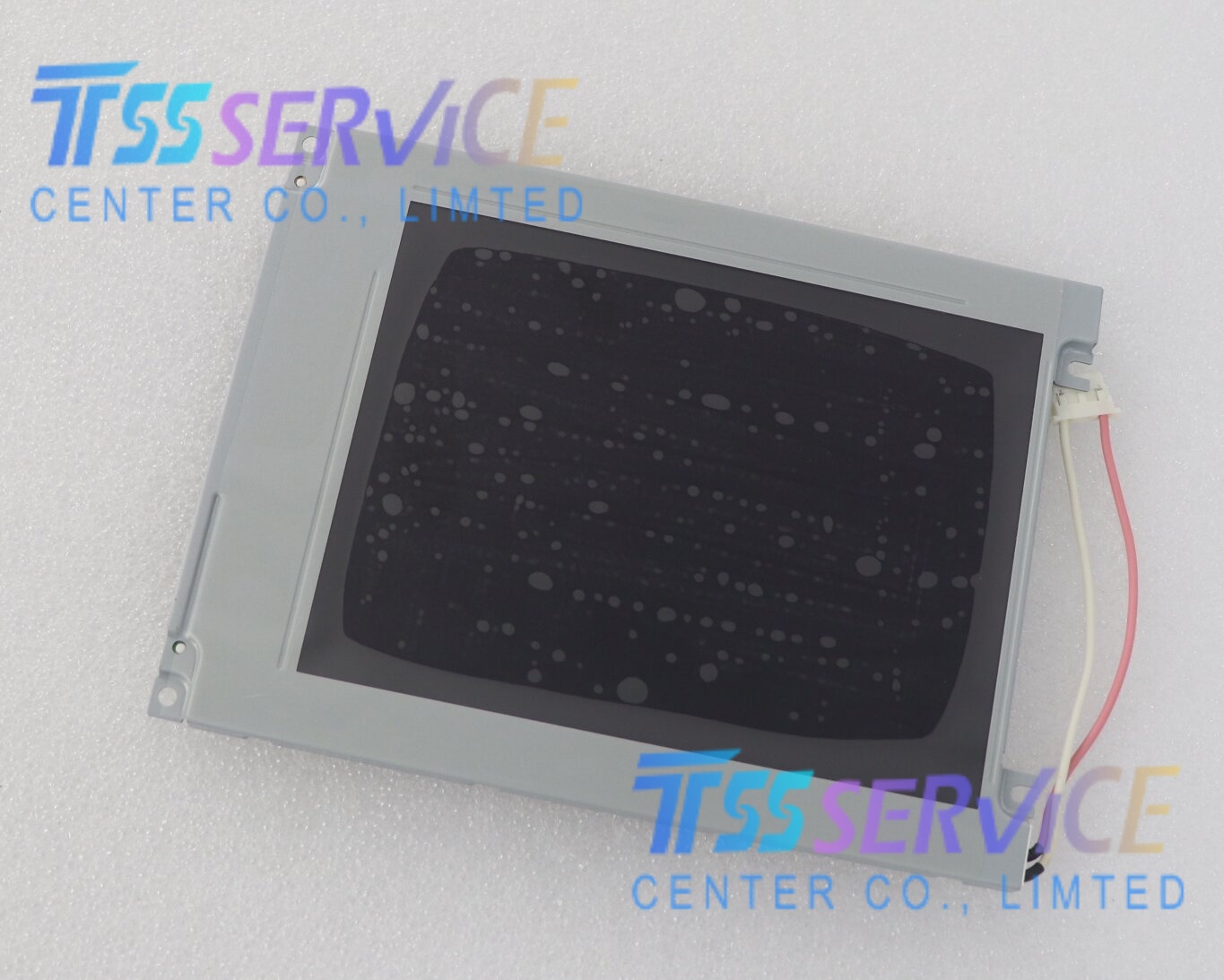

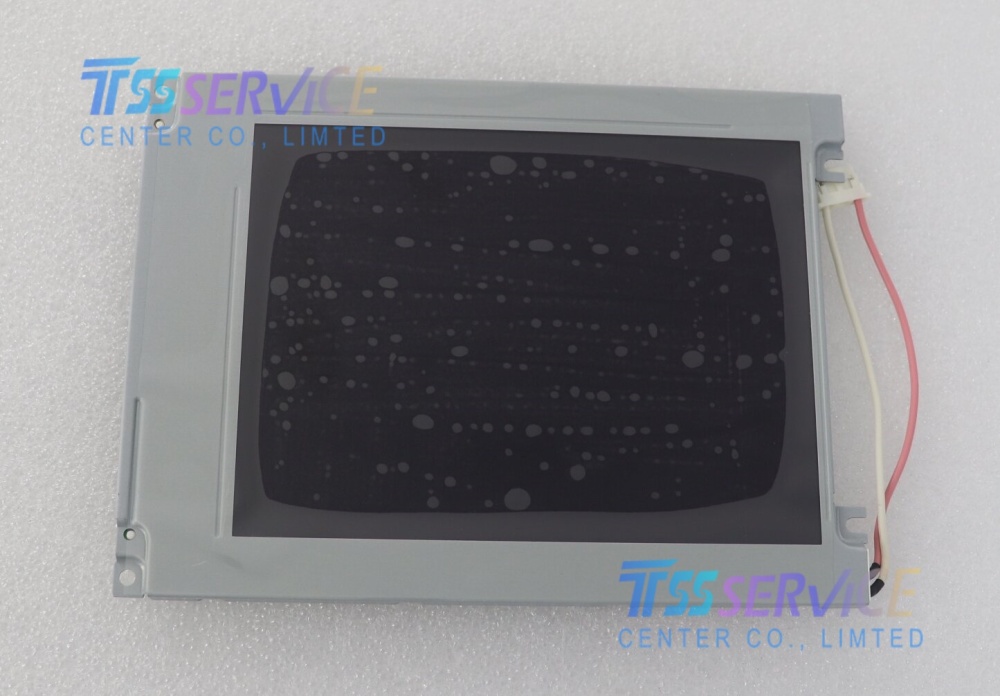

UMSH-7867WD-4CS 5.7 INCH LCD panel Display For Industrial

Name: UMSH-7867WD-4CS 5.7 INCH LCD panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: UMSH-7867WD-4CS
Price: 125 USD
Availability: InStock

SKU: UMSH-7867WD-4CS

Model: UMSH-7867WD-4CS
Diagonal Size: 5.7inch
Resolution: 320 × 240 (QVGA)
Display Type: CSTN-LCD, Reflective/Transflective

0.0 (0 Reviews)

0 Sold

~~$127.00~~ $125.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

UMSH-7867WD-4CS 5.7 INCH LCD panel Display For Industrial

Item	Specification	Unit
Manufacturer	Planar / Univision (WiseChip)	–
Model	UMSH-7867WD-4CS	–
Diagonal Size	5.7	inch
Resolution	320 × 240 (QVGA)	pixels
Display Type	CSTN-LCD, Reflective/Transflective	–
Color	Monochrome / Grayscale	–
Active Area	115.2 × 86.4	mm
Outline Dimension	144.0 × 104.0 × 6.0	mm
Pixel Pitch	0.36 × 0.36	mm
Brightness	120 (Typ.)	cd/m²
Contrast Ratio	25:1 (Typ.)	–
Viewing Angle (L/R/U/D)	30/30/10/30 (CR≥5)	deg
Backlight	CCFL, Edge-type (Replaceable)	–
Backlight Lifetime	30,000 (Min.)	hrs
Interface	15-pin Parallel (8-bit)	–
Supply Voltage	5.0 (Logic) / 12.0 (Backlight)	V
Operating Temperature	-20 ~ +60	°C
Storage Temperature	-30 ~ +70	°C
RoHS	Compliant	–
Weight	45	g
