UMSH-8173MD-T 7 INCH LCD Display Screen For Industrial

Name: UMSH-8173MD-T 7 INCH LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: UMSH-8173MD-T
Price: 110 USD
Availability: InStock

SKU: UMSH-8173MD-T

Model: UMSH-8173MD-T
Diagonal Size: 7 inches
Panel Type: a‑Si TFT‑LCD, LCM
Resolution: 800 × 480 (WVGA)

0.0 (0 Reviews)

0 Sold

~~$115.00~~ $110.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

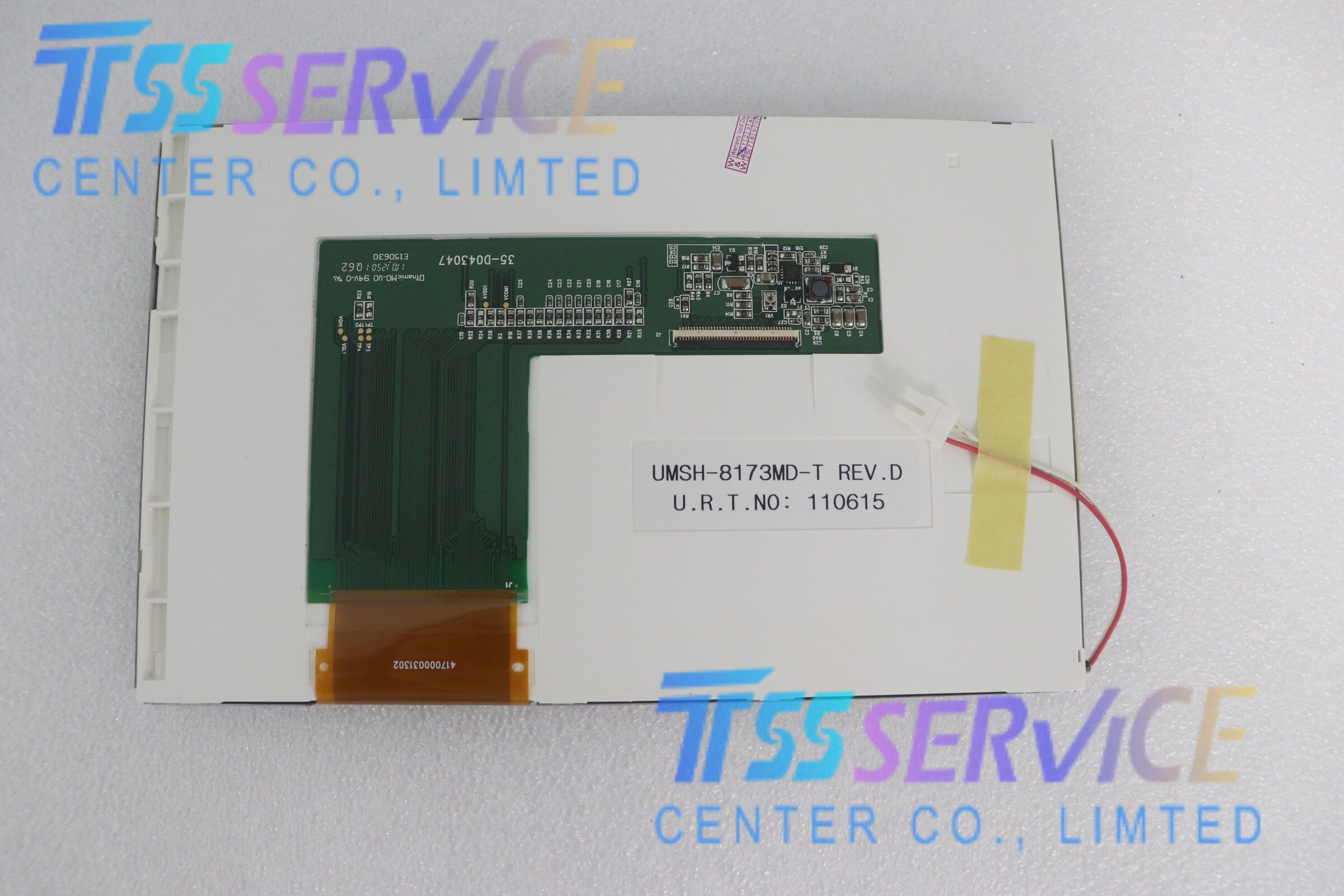

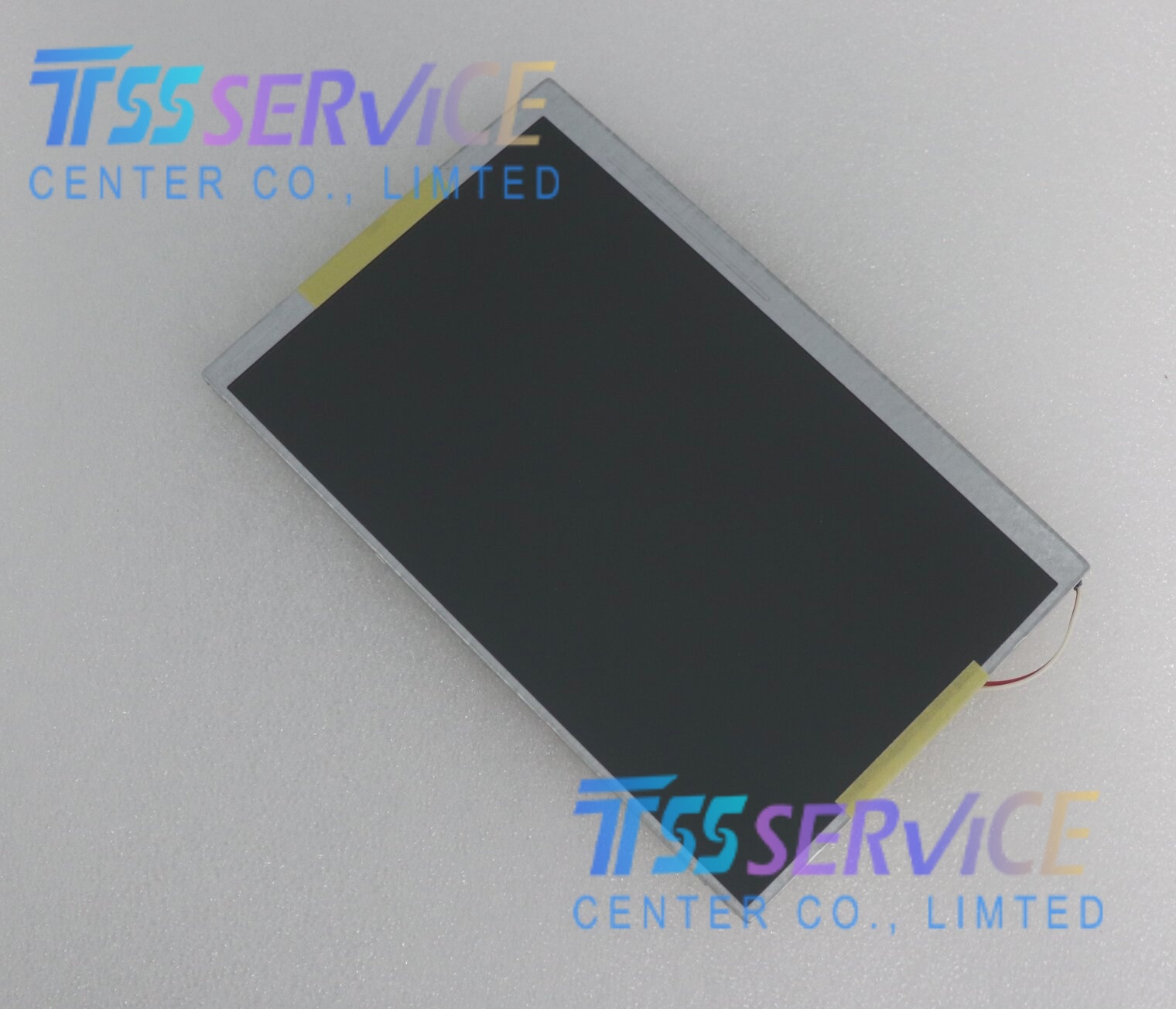

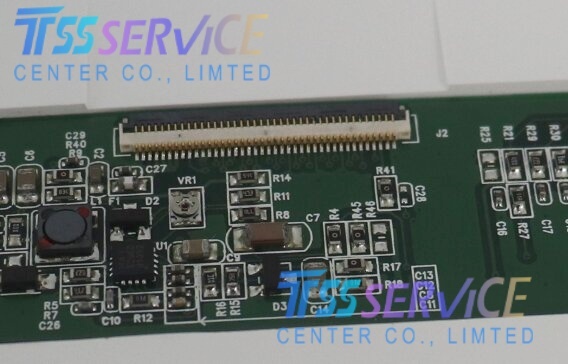

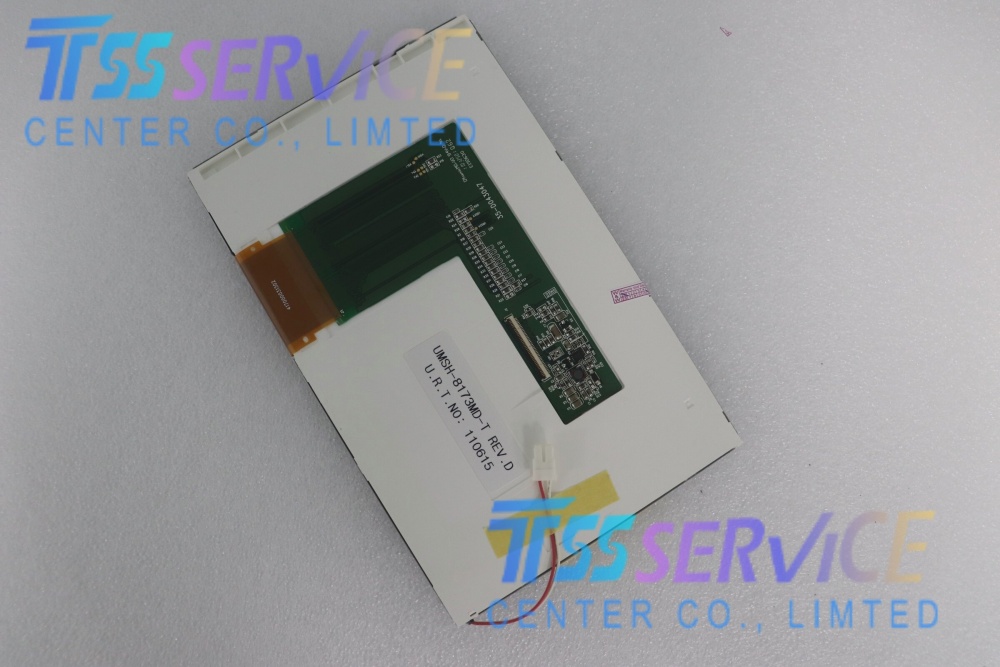

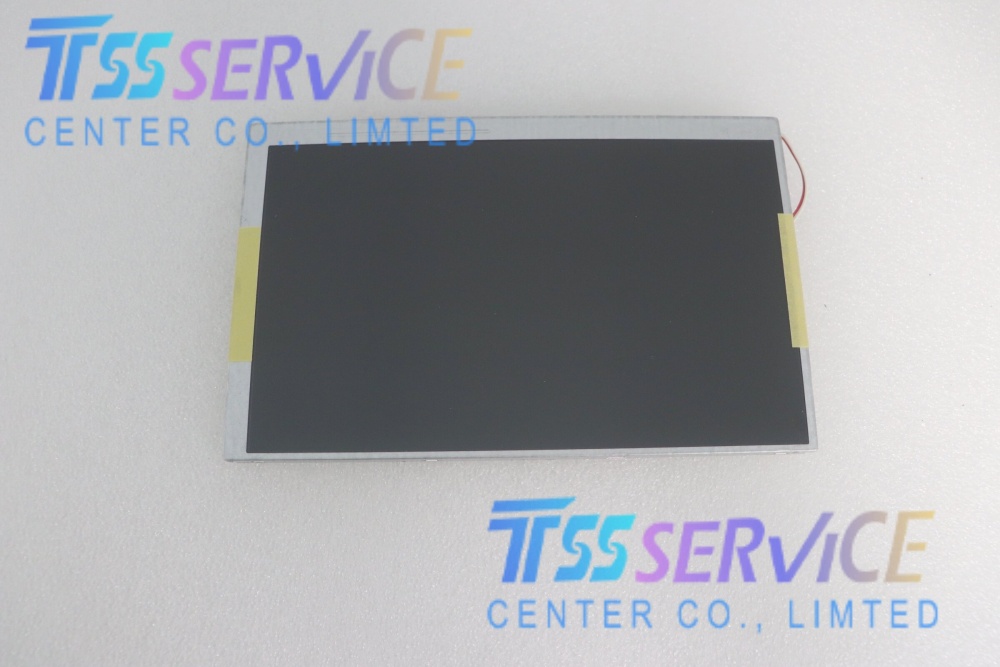

UMSH-8173MD-T 7 INCH LCD Display Screen For Industrial

Parameter	Specification
Model	UMSH-8173MD-T
Diagonal Size	7 inches
Panel Type	a‑Si TFT‑LCD, LCM (with touch)
Resolution	800 × 480 (WVGA)
Backlight	WLED, long life
Interface	Standard industrial LVDS
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Dimensions	Approx. 165 × 105 mm
Weight	Approx. 0.5 kg
Contrast Ratio	Typical 500:1
Brightness	Typical 400 cd/m²
Viewing Angle	70°/70°/50°/60° (L/R/U/D)

Typical Applications

Industrial HMI & Control Panels：Injection molding machines, CNC equipment, PLC HMIs, factory automation terminals.
Medical Devices：Patient monitors, diagnostic equipment, portable medical displays.
Marine & Automotive Displays：Navigation systems, vehicle terminals, marine instrumentation.
Smart Home & Commercial Terminals：POS systems, ATM displays, vending machines, industrial monitors.
Projectors & Specialized Displays：Industrial projectors, intelligent display terminals
