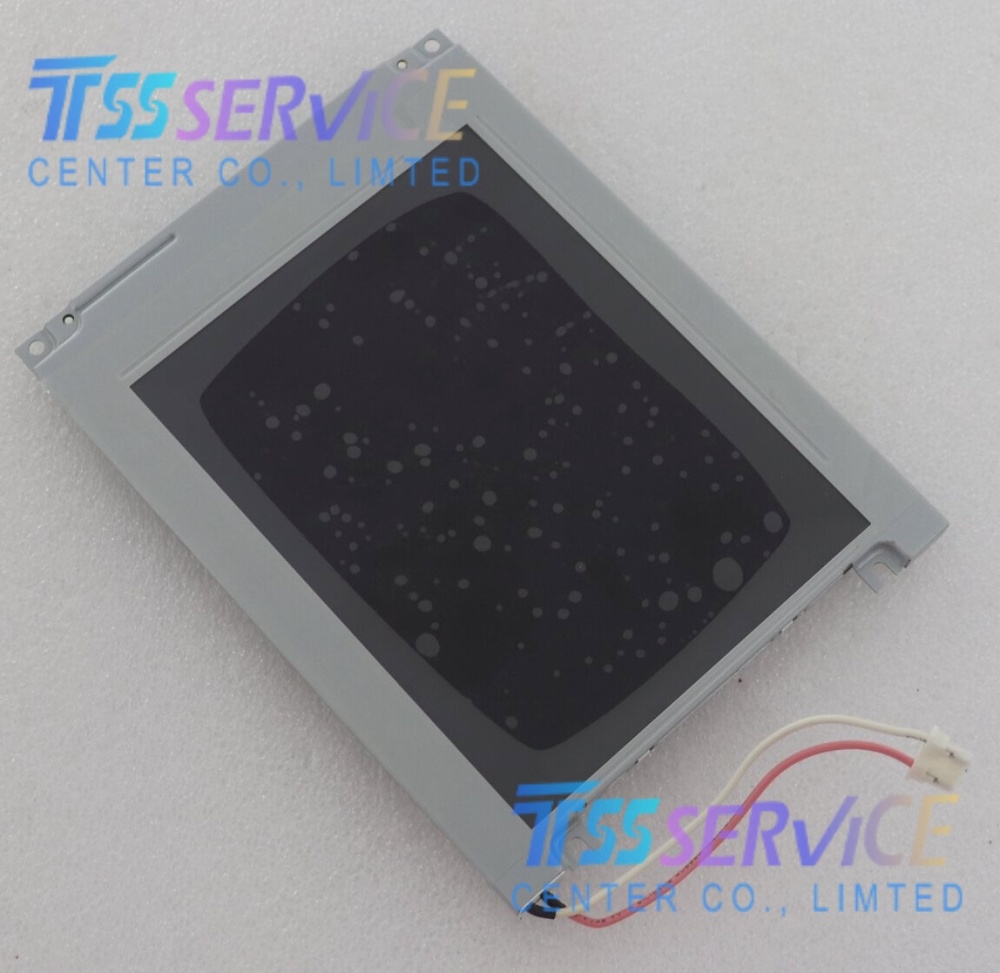

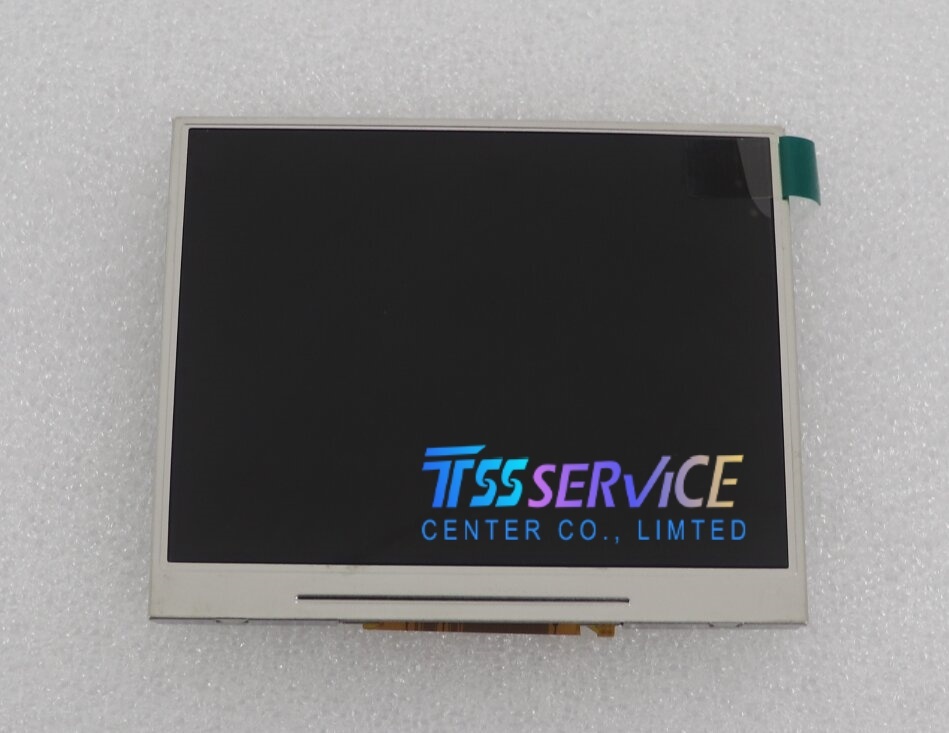

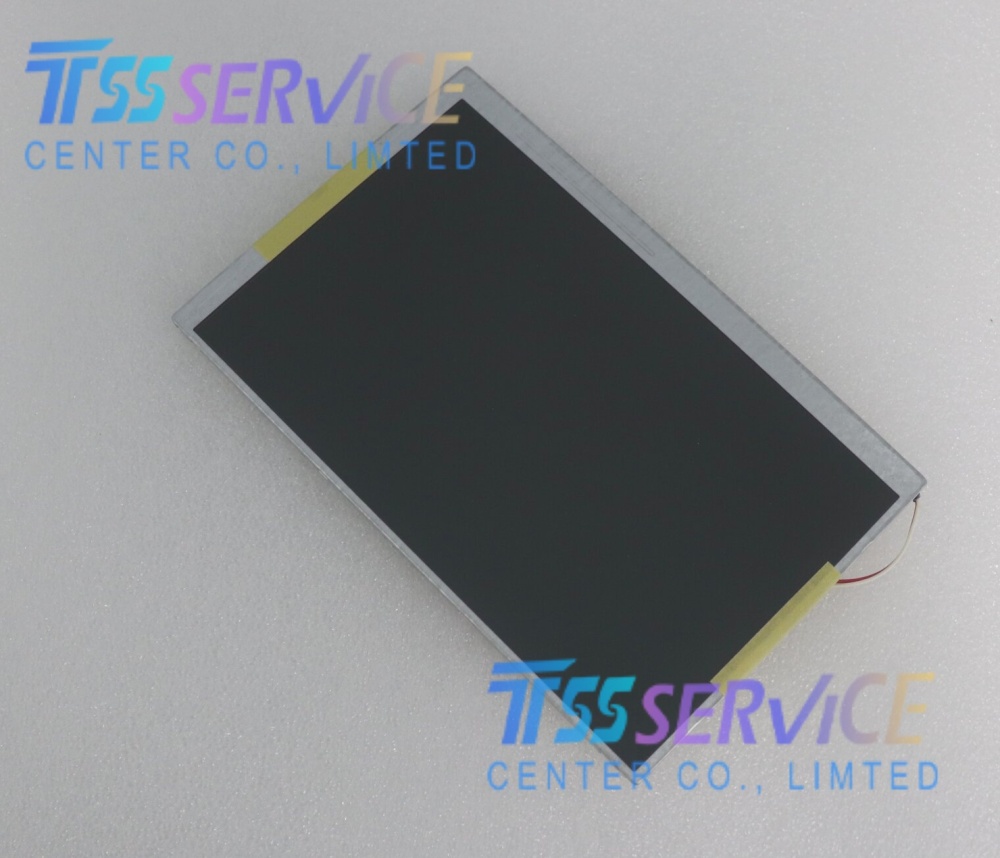

UMSH-8374MD-1T (URT 5.7" Industrial TFT LCD with Resistive Touch)
UMSH-8374MD-1T is a 5.7-inch 4:3 QVGA industrial TFT display module integrated with analog 4-wire resistive touch, featuring 320×240 resolution, 450 cd/m² high brightness, wide industrial operating temperature (-20℃~+70℃), parallel TTL RGB interface and long-lifespan WLED backlight. Compact outline and stable performance make it widely used for legacy industrial HMI replacement and embedded control devices。
| Parameter |
Detailed Specification |
| Part Number |
UMSH-8374MD-1T (Alternative:UMSH-8374MD-LT) |
| Manufacturer |
URT Display |
| Diagonal Size |
5.7 inch, 4:3 Aspect Ratio |
| Native Resolution |
320(RGB) × 240 QVGA |
| Display Mode |
TN TFT, Normally White, Transmissive |
| Active Area(W×H) |
115.2 mm × 86.4 mm |
| Overall Dimension |
144.0 × 104.6 × 14.35 mm |
| Typical Brightness |
450 cd/m² |
| Contrast Ratio |
600:1(Typ.) |
| View Angle(L/R/U/D) |
50°/50°/35°/45°(CR≥10) |
| Color Depth |
18bit, 262K Display Colors |
| Backlight |
Side WLED, MTBF ≥50,000 Hours Lifespan |
| Touch Feature |
Built-in 4-Wire Resistive Touch Screen; Operating force:60~120g, single-point touch |
| Signal Interface |
Parallel TTL RGB, 33Pin Connector |
| Supply Voltage |
3.3V /5V DC |
| Refresh Rate |
60Hz |
| Operating Temp |
-20℃ ~ +70℃ |
| Storage Temp |
-30℃ ~ +80℃ |
| Compliance |
RoHS Standard Certified |
