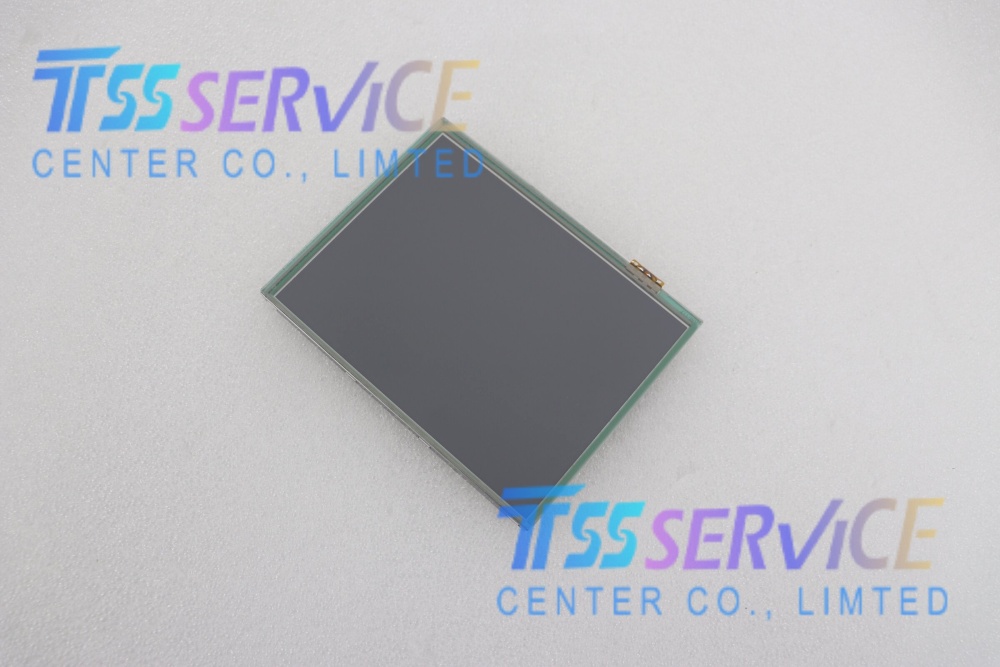

UMSH-8377MD-4T Compatible LCD Display Screen For Industrial

Name: UMSH-8377MD-4T Compatible LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: UMSH-8377MD-4T
Price: 200 USD
Availability: InStock

SKU: UMSH-8377MD-4T

Model: UMSH-8377MD-4T
Panel Size: 5.7 inches (diagonal)
Resolution: 640 × 480 (VGA, 141 PPI)
Display Type: a-Si TFT-LCD, TN

0.0 (0 Reviews)

0 Sold

~~$205.00~~ $200.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

UMSH-8377MD-4T Compatible LCD Display Screen For Industrial

Parameter	Details
Model	UMSH-8377MD-4T
Panel Size	5.7 inches (diagonal)
Resolution	640 × 480 (VGA, 141 PPI)
Display Type	a-Si TFT-LCD, TN, Normally White, Transmissive
Active Area	115.2 (W) × 86.4 (H) mm
Outline Dimension	127 (W) × 127 (H) × 10.06 (Max) mm
Brightness	350 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.)
Viewing Angle	75°/75°/60°/75° (L/R/U/D)
Response Time	15/35 ms (Tr/Td, Typ.)
Backlight	WLED, 50,000 hours lifespan
Interface	TTL, 40 pins, 6-bit RGB vertical stripe
Operating Voltage	DC 5V (logic), 12V (backlight)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Weight	120g (Typ.)
RoHS Compliance	Yes

Applications

Industrial Control: Injection molding machines, CNC equipment, HMI panels, industrial PCs, PLC terminals.
Medical Equipment: Patient monitors, diagnostic devices, medical imaging displays, portable medical instruments.
Automotive & Transportation: Vehicle navigation, industrial vehicle dashboards, in-vehicle infotainment, marine displays.
Smart Terminals: POS systems, ATM banking displays, vending machines, industrial touch monitors.
Others: Projector panels, intelligent home control panels, outdoor industrial displays (with enhanced brightness).
