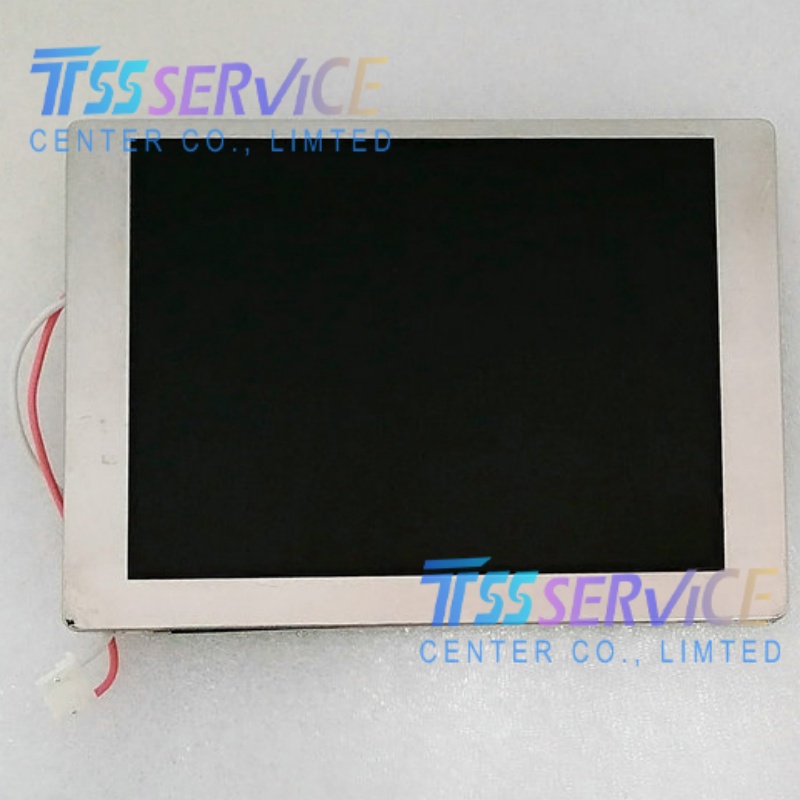

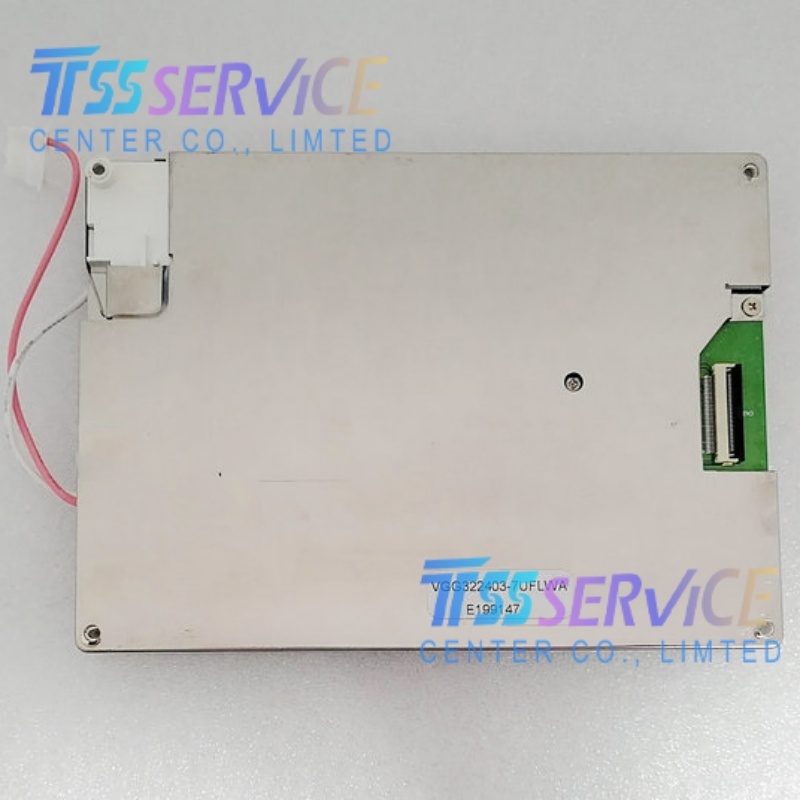

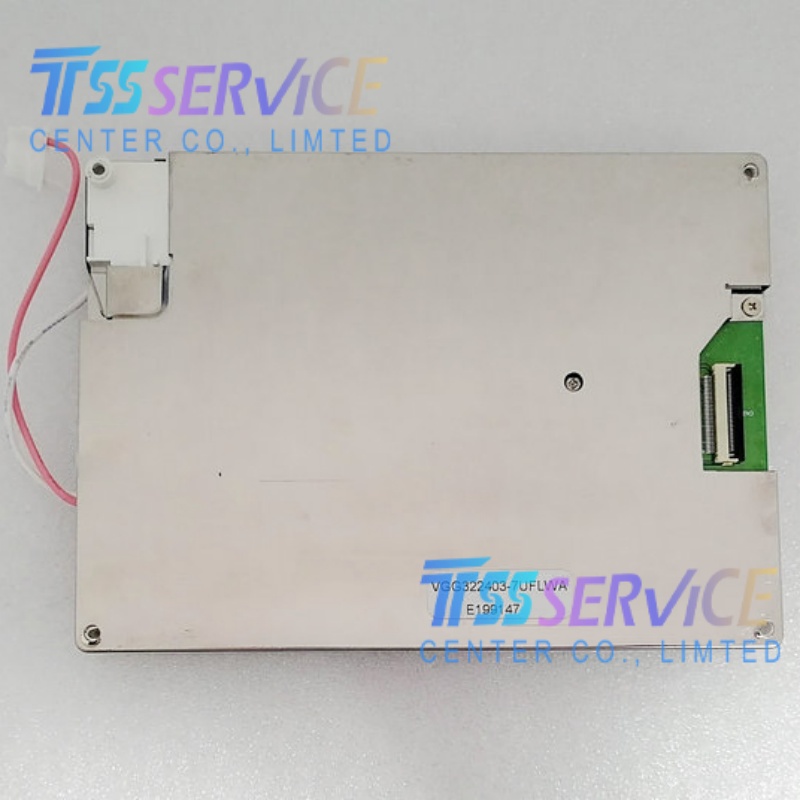

VGG322403-7UFLWA 320*240 5.7-inch LCD Panel Screen For Industrial

Name: VGG322403-7UFLWA 320*240 5.7-inch LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: VGG322403-7UFLWA
Price: 95 USD
Availability: InStock

SKU: VGG322403-7UFLWA

Model: VGG322403-7UFLWA
Display Type: Color TFT-LCD
Diagonal Size: 5.7 inch
Resolution: 320 × 240 (QVGA), 4:3

0.0 (0 Reviews)

0 Sold

~~$98.00~~ $95.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

VGG322403-7UFLWA 320*240 5.7-inch LCD Panel Screen For Industrial

Parameter	Specification
Model	VGG322403-7UFLWA
Display Type	Color TFT-LCD
Diagonal Size	5.7 inch
Resolution	320 × 240 (QVGA), 4:3
Active Area	115.2 × 86.4 mm
Outline Dimension	134.0 × 104.0 × 12.5 mm
Brightness	350 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.)
Viewing Angle (CR≥10)	70/70/60/60 (H/L/U/D)
Response Time	16 ms (Typ.)
Color Depth	65K Colors
Backlight	WLED, Lifetime ≥ 50,000 hours
Interface	8-bit Parallel CPU Interface
Pin Definition	34 Pins FPC
Operating Temperature	-20 °C ~ +70 °C
Storage Temperature	-30 °C ~ +80 °C
Touch Panel	Without Touch
Surface Treatment	Anti-glare & Hard Coating
Weight	270 g (Typ.)

Typical Applications

Industrial HMI & Control Panels
Suitable for automation equipment, PLC control terminals, industrial man-machine interfaces, stable performance for long-time operation in factory environments.
Test & Measuring Instruments
Applied to oscilloscopes, data recorders, portable detection devices, clear display for data, waveforms and parameters.
Portable Industrial Terminals
Industrial handheld devices, barcode collectors, logistics handheld terminals, compact structure and easy embedding.
Commercial & Special Equipment
Vending machines, access control displays, POS auxiliary screens, public service terminal equipment.
Construction & Agricultural Machinery
On-board display for engineering vehicles, agricultural equipment consoles, adapts to ordinary outdoor temperature environment.
