| Manufacturer |
Advantech Co., Ltd. |
| Series |
VT2 (Industrial Display Module) |
| Model |
VT2-10TB |
| Display Size |
10.4 inches (diagonal) |
| Resolution |
640 × 480 pixels (VGA) — standard for 10.4" industrial panels of this era |
| Panel Type |
a-Si TFT-LCD, transmissive |
| Colors |
16.7 million (24-bit) |
| Brightness |
250–300 cd/m² |
| Contrast Ratio |
400:1 |
| Viewing Angle |
70°/70°/50°/60° (L/R/U/D) |
| Backlight |
White CCFL or LED (later production = LED; ～30,000–50,000 hrs) |

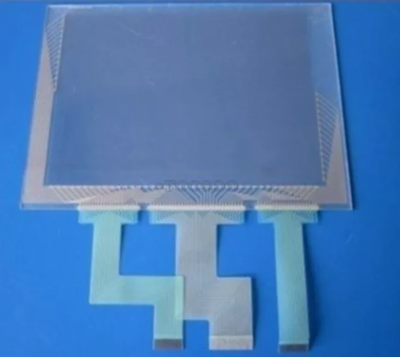

| Touchscreen |
5-wire analog resistive (high durability, gloved/stylus compatible) |
| Video Interface |
Analog VGA (RGBHV) via HD-15 (DE-15) connector |
| Power Supply |
12 VDC or 24 VDC (auto-sensing or jumper-selectable) |
| Power Consumption |
～10–15 W |
| Operating Temperature |
0°C to +50°C (industrial variants: -10°C to +60°C) |
| Housing |
Open-frame metal chassis with mounting flanges |
| Front Protection |
Optional IP65-rated front bezel (when installed with gasket) |
| Dimensions (W×H×D) |
～261 mm × 202 mm × 50 mm |
| Active Area |
211.2 mm (W) × 158.4 mm (H) |
| Weight |
～1.2 kg |
| Certifications |
CE, FCC, RoHS (medical versions: IEC 60601-1 optional) |
