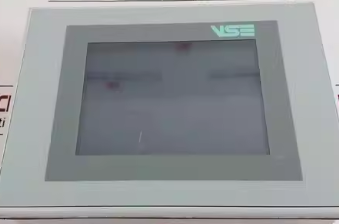

| Type | Color Touch Panel Display |
| Primary Use | Industrial Human-Machine Interface (HMI) for monitoring and control |
| Parameter | Specification |
|---|---|
| Display Technology | TFT LCD (Active Matrix) |
| Screen Size | 5.7 inches diagonal (145 mm) |
| Viewable Area | 115 x 86 mm (W x H) |
| Resolution | 320 x 240 pixels (QVGA) |
| Color Depth | 256 colors (8-bit) |
| Brightness | Typically 200 cd/m² (nit) |
| Contrast Ratio | 150:1 (typical) |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) |
| Backlight Lifetime | Approx. 50,000 hours (at 25°C ambient) |
| Response Time | 300 ms (typical) |
| Parameter | Specification |
|---|---|
| Technology | Analog Resistive (4-wire) |
| Touch Points | Single touch |
| Surface Hardness | 3H pencil hardness (typical) |
| Touch Accuracy | ±2 pixels |
| Touch Life | >1 million activations |
| Parameter | Specification |
|---|---|
| Processor | 32-bit RISC processor (specific model varies) |
| RAM | 8 MB (typical for runtime) |
| Flash Memory | 16 MB (for OS and application storage) |
| User Memory | 4 MB available for projects (approx.) |
| Backup | Non-volatile memory for data retention |
| Interface | Specification |
|---|---|
| Serial Port 1 (COM1) | RS-232/RS-485 configurable (9-pin D-Sub) |
| Serial Port 2 (COM2) | RS-232 (9-pin D-Sub, typically for printer/download) |
| Protocol Support | • Modbus RTU (Master/Slave) • Schneider Electric protocols (Uni-TE, etc.) • Allen-Bradley DF1 (optional) • Omron Host Link (optional) • Mitsubishi FX (optional) |
| Expansion | Optional communication modules (if supported) |
| Parameter | Specification |
|---|---|
| Input Voltage | 24 V DC (direct current) |
| Voltage Range | 20.4 V DC to 26.4 V DC (including ripple) |
| Power Consumption | Typically 15 W (max 20 W) |
| Inrush Current | < 5 A for 20 ms |
| Protection | Reverse polarity protection, overvoltage protection |
| Connector | Removable terminal block (2-pin for power, plus ground) |
| Parameter | Operating Conditions | Storage/Transport |
|---|---|---|
| Temperature | 0°C to +50°C (32°F to 122°F) | -20°C to +60°C (-4°F to 140°F) |
| Relative Humidity | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) |
| Altitude | Up to 2000 m (6560 ft) without derating | Same as operating |
| Vibration | 5-8.4 Hz: 3.5 mm amplitude; 8.4-150 Hz: 0.5 g acceleration | |
| Shock | 15 g, 11 ms duration (half-sine wave) |
| Parameter | Specification |
|---|---|
| Panel Dimensions (W x H x D) | 200 mm x 147 mm x 46 mm (7.87" x 5.79" x 1.81") |
| Cutout Dimensions | 190 mm x 137 mm (7.48" x 5.39") ±0.5 mm |
| Weight | Approx. 1.2 kg (2.65 lbs) |
| Mounting | Panel mount (front mounting) |
| Front Bezel Material | Polycarbonate with anti-glare treatment |
| Ingress Protection | Front panel: IP65 (dust-tight, protected against water jets) Rear compartment: IP20 (finger protection only) |
| Mounting Depth | Maximum 30 mm behind panel |
