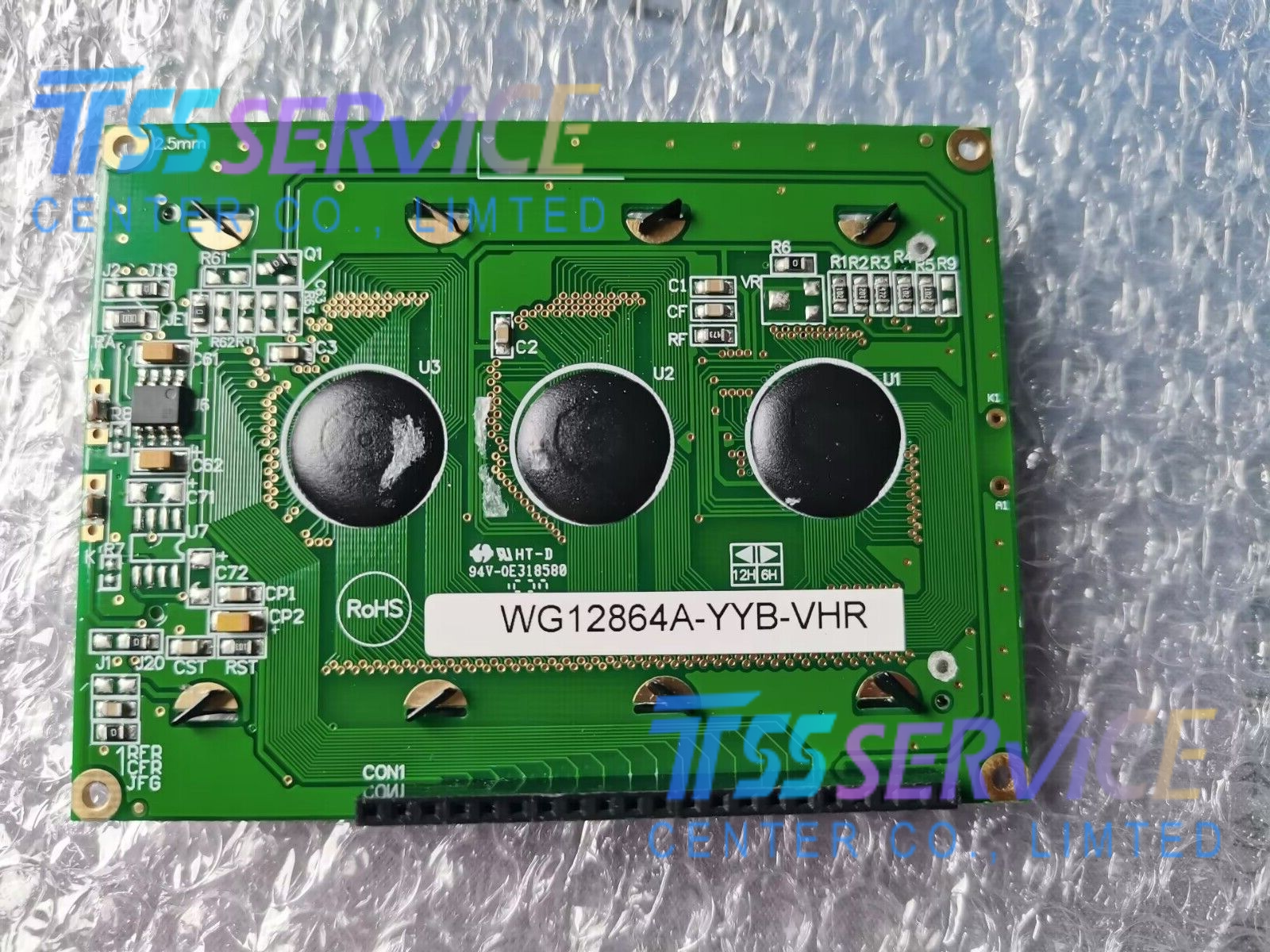

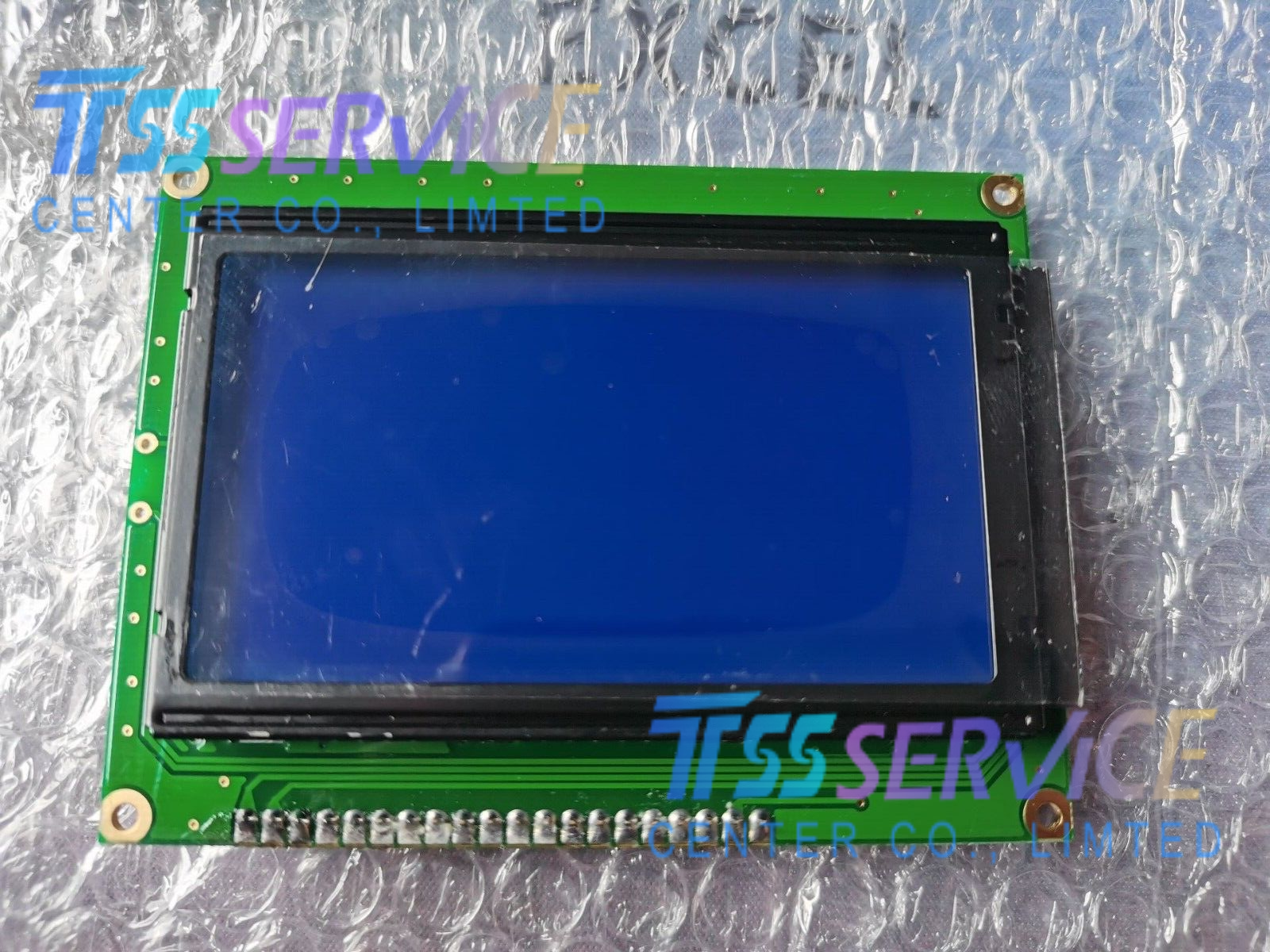

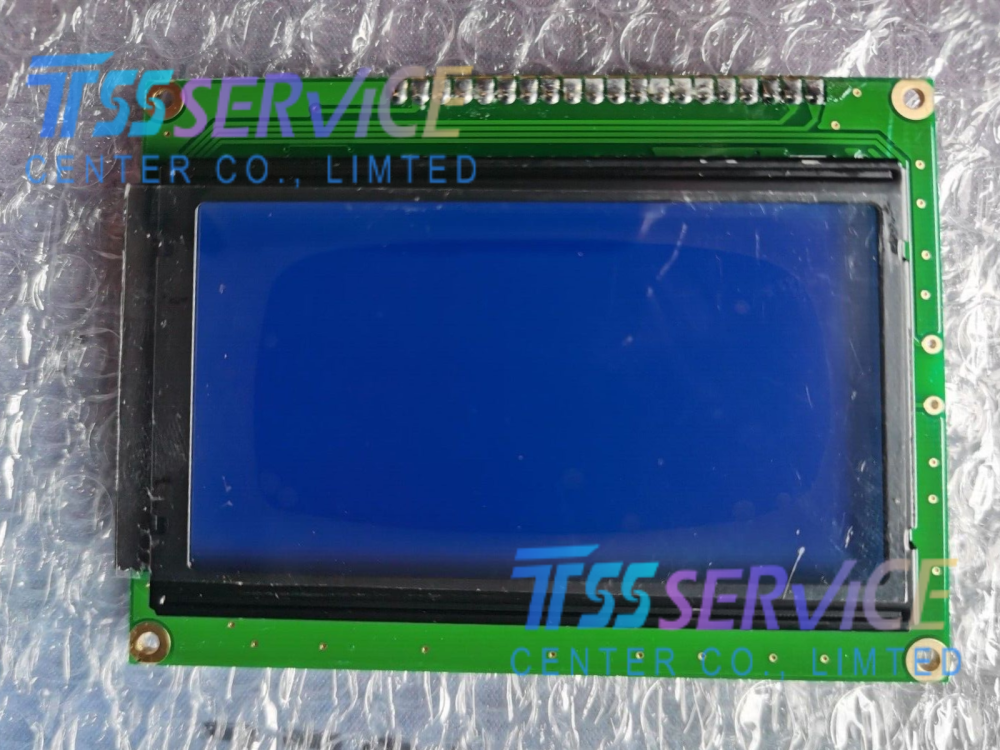

WG12864A-YYB-VHR 128*64 compatible Industrial LCD Screen Panel

Name: WG12864A-YYB-VHR 128*64 compatible Industrial LCD Screen Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: WG12864A-YYB-VHR
Price: 78 USD
Availability: InStock

SKU: WG12864A-YYB-VHR

Model: WG12864A‑YYB‑VHR
Diagonal Size: 2.93 inch
Resolution:128 × 64 dots (Graphic)
Panel Type: STN / FSTN, Monochrome

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $78.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

WG12864A-YYB-VHR 128*64 compatible Industrial LCD Screen Panel

Parameter	Specification
Manufacturer	Winstar (WG)
Model	WG12864A‑YYB‑VHR
Diagonal Size	2.93 inch
Resolution	128 × 64 dots (Graphic)
Panel Type	STN / FSTN, Monochrome
Display Mode	Positive, Yellow‑Green (YY)
Backlight	LED, Yellow‑Green, High Brightness (VHR)
Interface	8‑bit Parallel (6800), Single‑row pins
Driver IC	NT7108 / NT7107 or equivalent
Supply Voltage	5.0 V
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Module Dimensions	93.0 × 70.0 × 12.5 mm
Active Area	62.0 × 44.0 mm
Dot Pitch / Size	0.48 × 0.48 mm
Contrast Ratio	Typ. 6:1
Viewing Angle	30°/30°/25°/25° (L/R/U/D)

Typical Applications

Industrial Controllers & HMIs: Small automation panels, PLC interfaces, and factory floor terminals.
Test & Measurement Devices: Handheld meters, data loggers, oscilloscopes, and spectrum analyzers.
Medical Equipment: Portable diagnostic devices, patient monitors, and lab instruments.
Smart Home & Appliances: HVAC control panels, kitchen appliances, and home automation interfaces.
Automotive & Transportation: Dashboard displays, aftermarket gauges, and vehicle monitoring systems.
Security & Access Control: Door entry systems, alarm panels, and surveillance controllers.
Retail & POS: Industrial POS terminals, vending machines, and self‑service kiosks.
