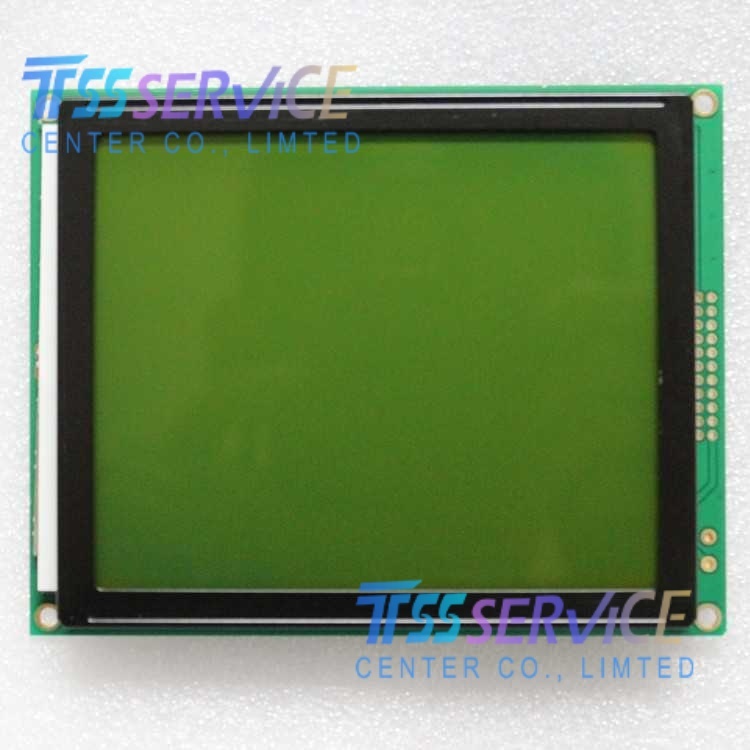

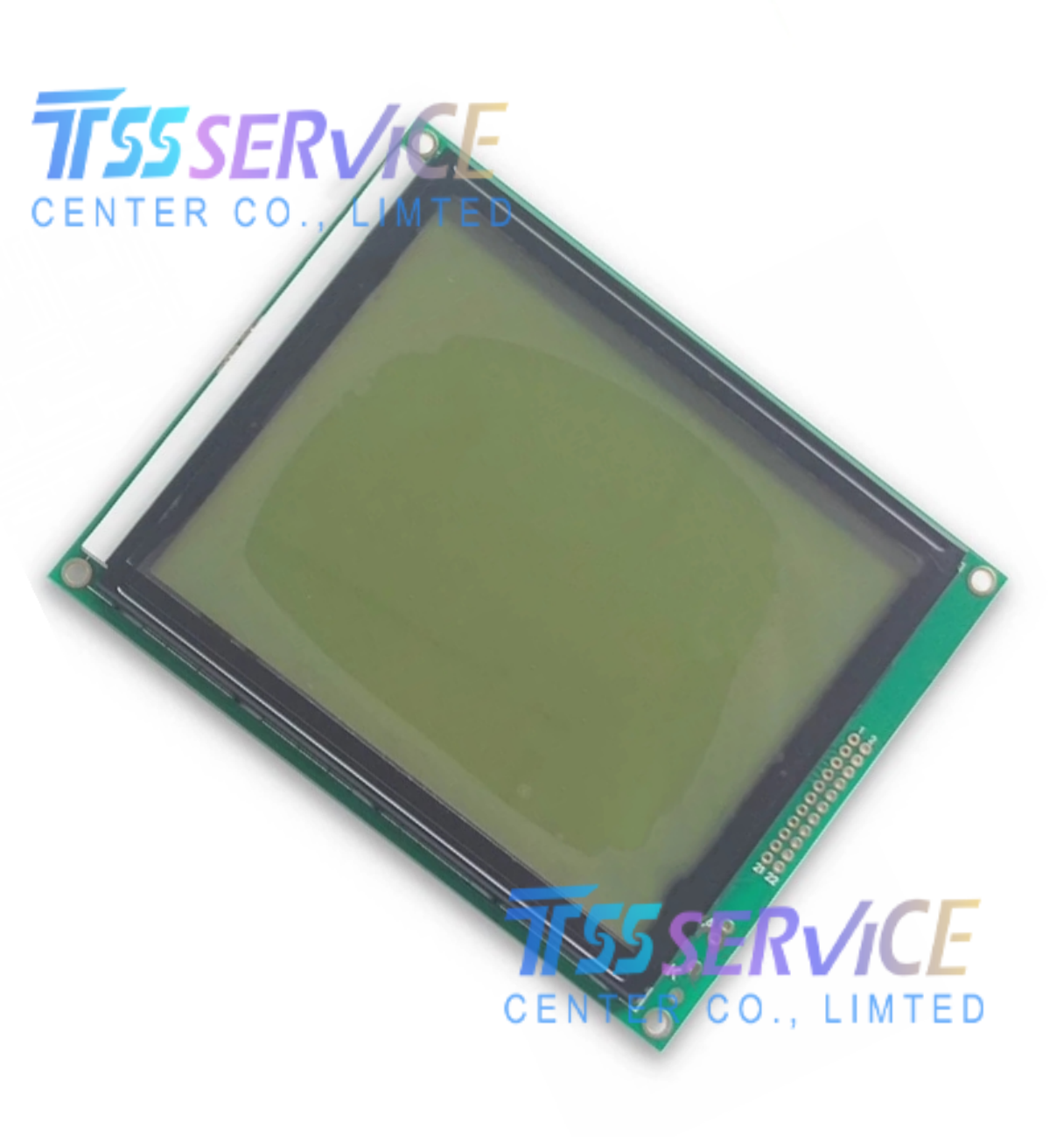

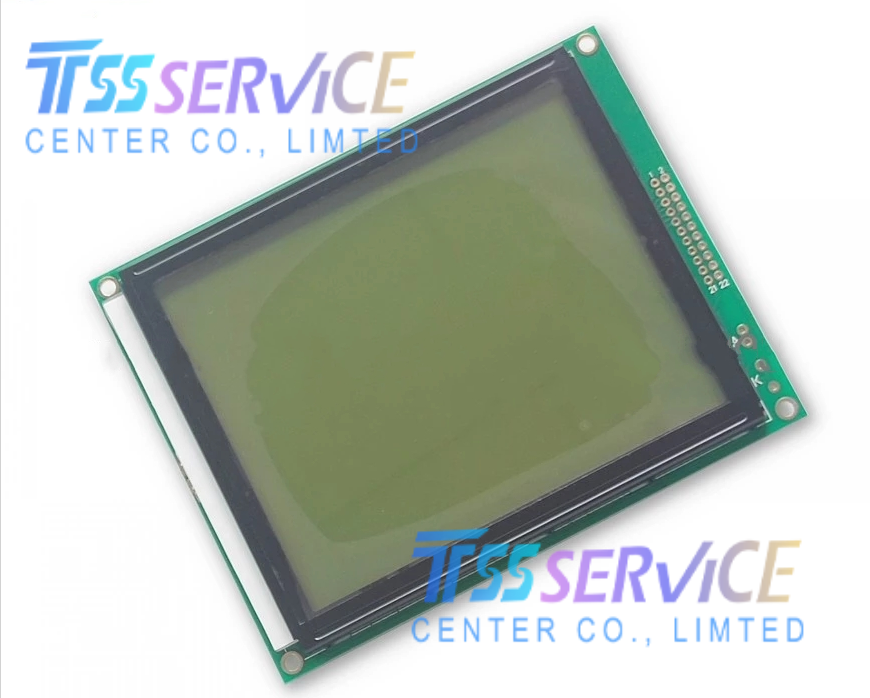

WG160128E Compatible LCD Display Panel for Industrial

Name: WG160128E Compatible LCD Display Panel for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: WG160128E
Price: 98 USD
Availability: InStock

SKU: WG160128E

Model Number: WG160128E
Display Type: STN Monochrome Graphic LCD, Negative Mode, Transmissive, Blue
Resolution: 160 × 128 Dots
Viewing Direction: 6 o’clock

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $98.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

WG160128E Compatible LCD Display Panel for Industrial

Category	Parameter	Details
Basic Information	Model Number	WG160128E
	Display Type	STN Monochrome Graphic LCD, Negative Mode, Transmissive, Blue
	Resolution	160 × 128 Dots
	Viewing Direction	6 o’clock
Mechanical Specifications	Outline Dimensions	129.0 × 102.0 × 13.5 mm
	Active Area	96.0 × 76.8 mm
	Dot Pitch	0.60 × 0.60 mm
	Typical Weight	~500 g (1.10 lbs)
Optical Specifications	Display Mode	STN Negative / Transmissive / Blue
	Viewing Angle	6 o’clock
Drive & Interface	Controller IC	RA6963 (Compatible with T6963C)
	Interface	8-bit Parallel (8080/6800 Compatible)
	Duty Cycle	1/128
Backlight	Type	Edge-Lit White LED Backlight
Environmental Specifications	Operating Temperature	-20 °C ~ +70 °C (-4 °F ~ +158 °F)
	Storage Temperature	-30 °C ~ +80 °C (-22 °F ~ +176 °F)
Electrical Specifications	Supply Voltage	5 V (Typical)
