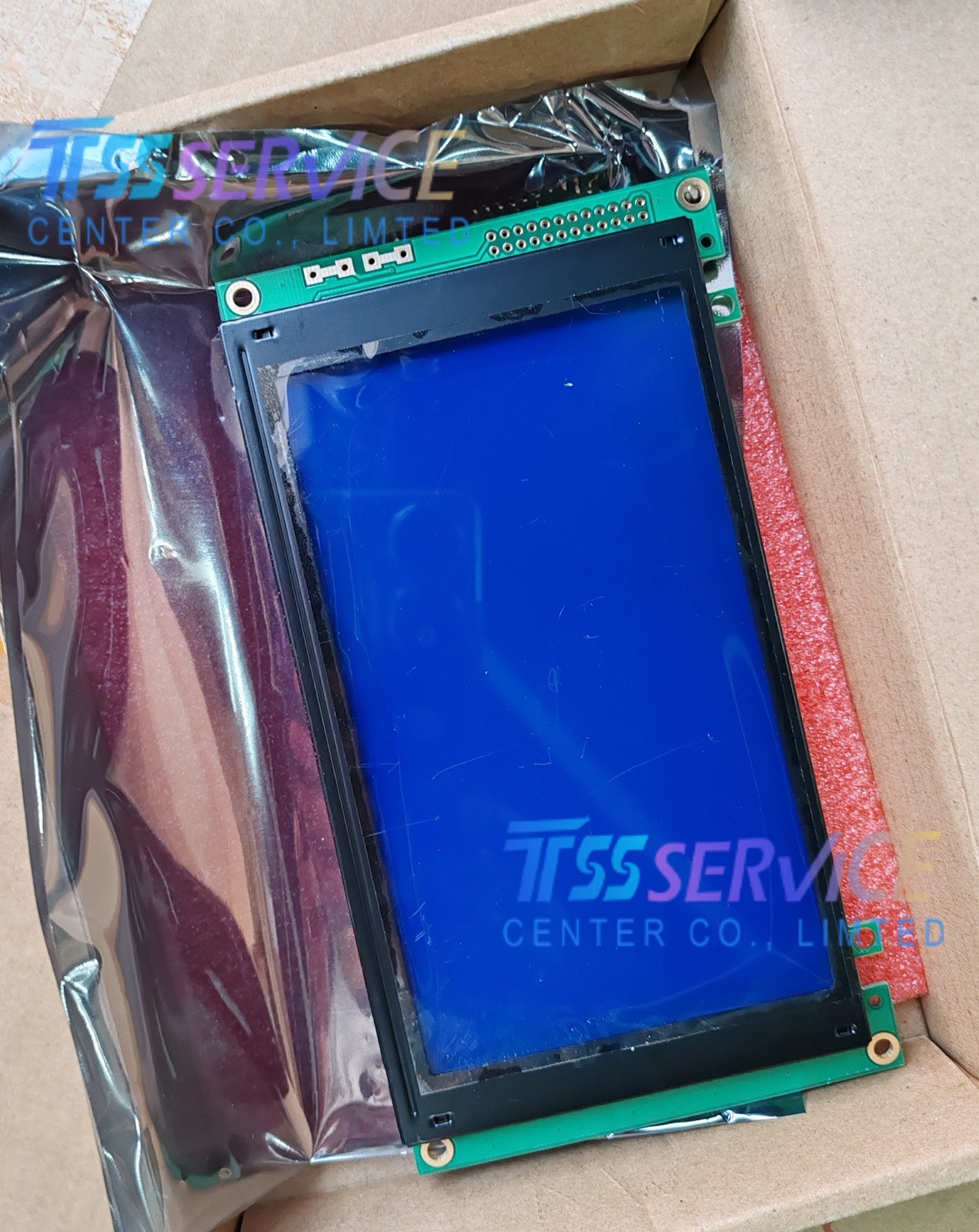

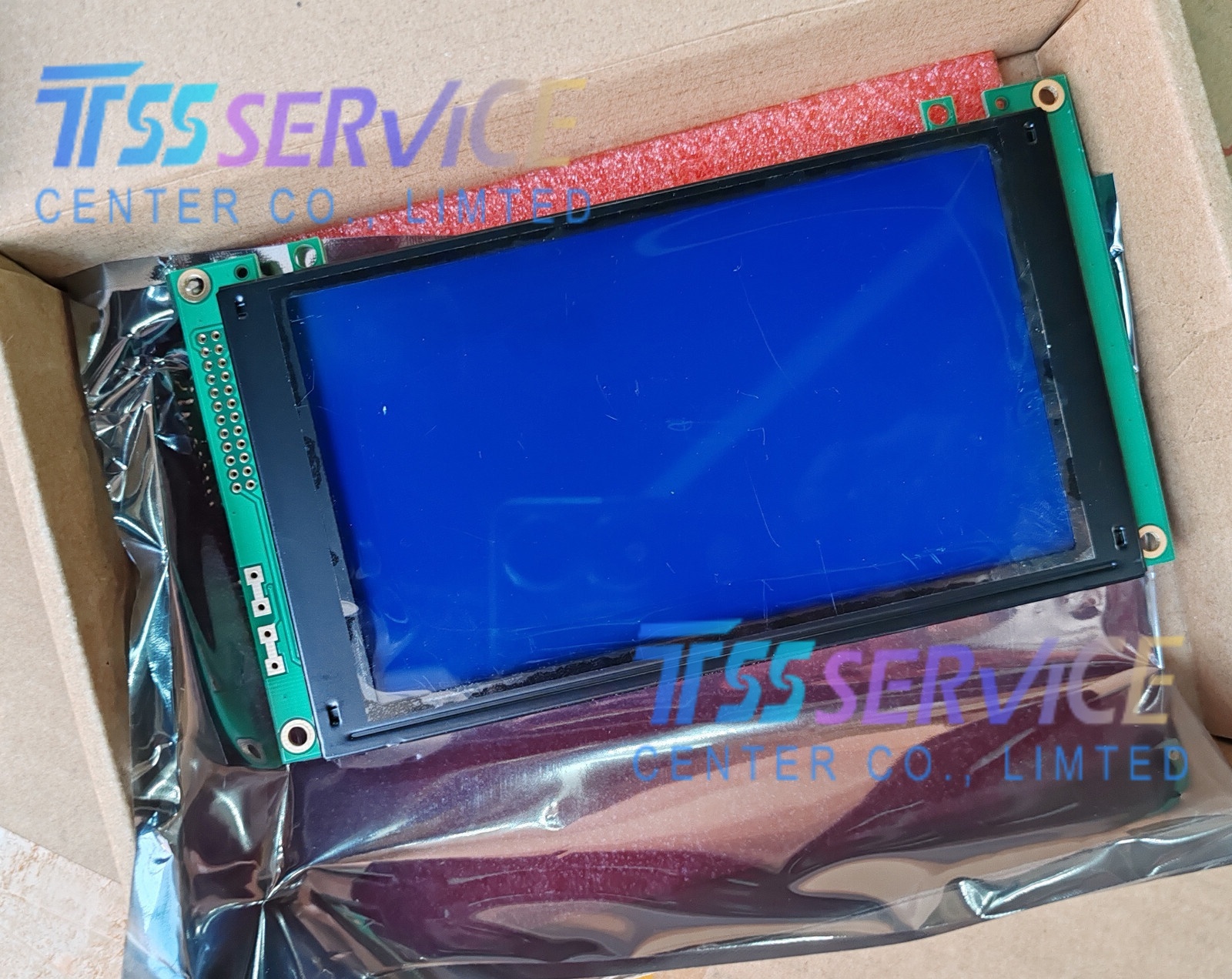

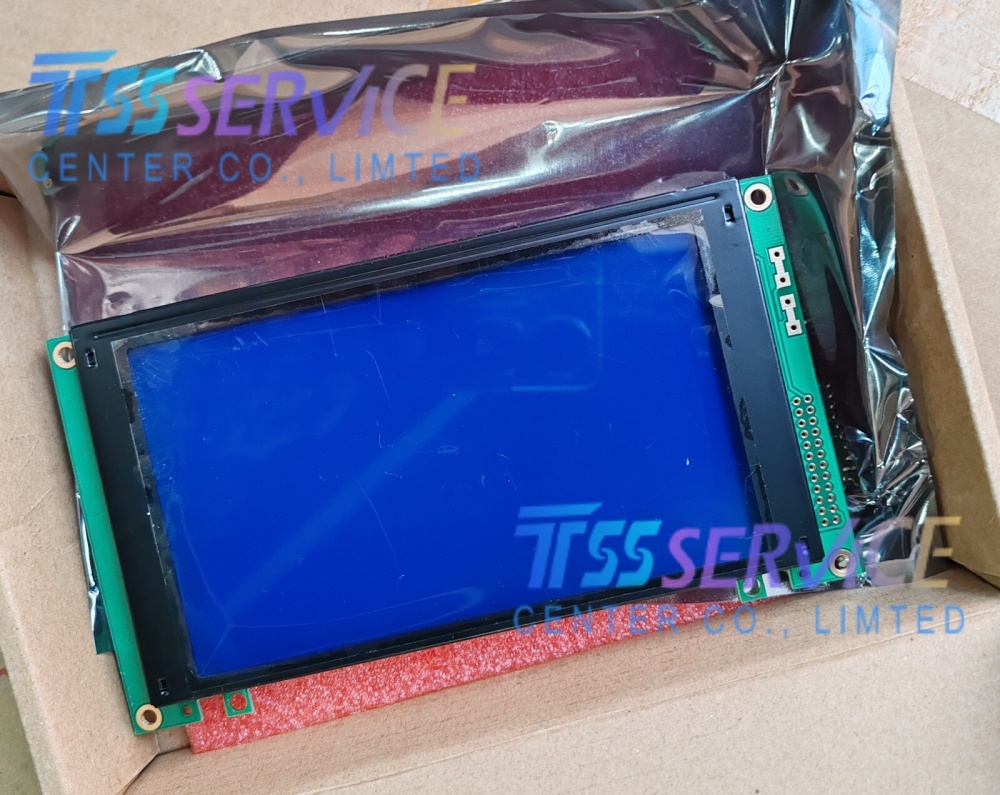

WG240128A-TTI-VZ 240 ×128 LCD Panel Display For Industrial

Name: WG240128A-TTI-VZ 240 ×128 LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: WG240128A-TTI-VZ
Price: 78 USD
Availability: InStock

SKU: WG240128A-TTI-VZ

Model: WG240128A-TTI-VZ
Screen Size: 5.4 inch (diagonal)
Resolution: 240 ×128 (Graphic)

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $78.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

WG240128A-TTI-VZ 240 ×128 LCD Panel Display For Industrial

Parameter	Value
Model	WG240128A-TTI-VZ
Brand	Winstar Display
Screen Size	5.4 inch (diagonal)
Resolution	240 × 128 (Graphic)
Active Area (H×V)	119.0 × 63.97 mm
Outline Dimensions (H×V×D)	170.0 × 103.5 × 12.4 mm
Display Type	FSTN Positive (Monochrome)
Polarizer	Transmissive
Viewing Direction	6:00 (Bottom)
Controller IC	RA6963
Interface	8080 8-bit Parallel (20-pin)
Backlight	LED (White)
Power Supply	5V DC (3.3V optional)
Duty Cycle	1/128
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
RoHS Compliance	Yes

Applications

Industrial Control: HMI panels, PLC displays, factory automation terminals.
Medical Devices: Patient monitors, diagnostic equipment, portable medical instruments.
POS & Kiosk: Point-of-sale terminals, vending machines, industrial touchscreen kiosks.
Smart Home & Appliances: White goods (refrigerators, washing machines), home automation panels.
Test & Measurement: Lab equipment, data loggers, industrial meters.
Transportation: Automotive dashboards, marine displays, vehicle control panels.
