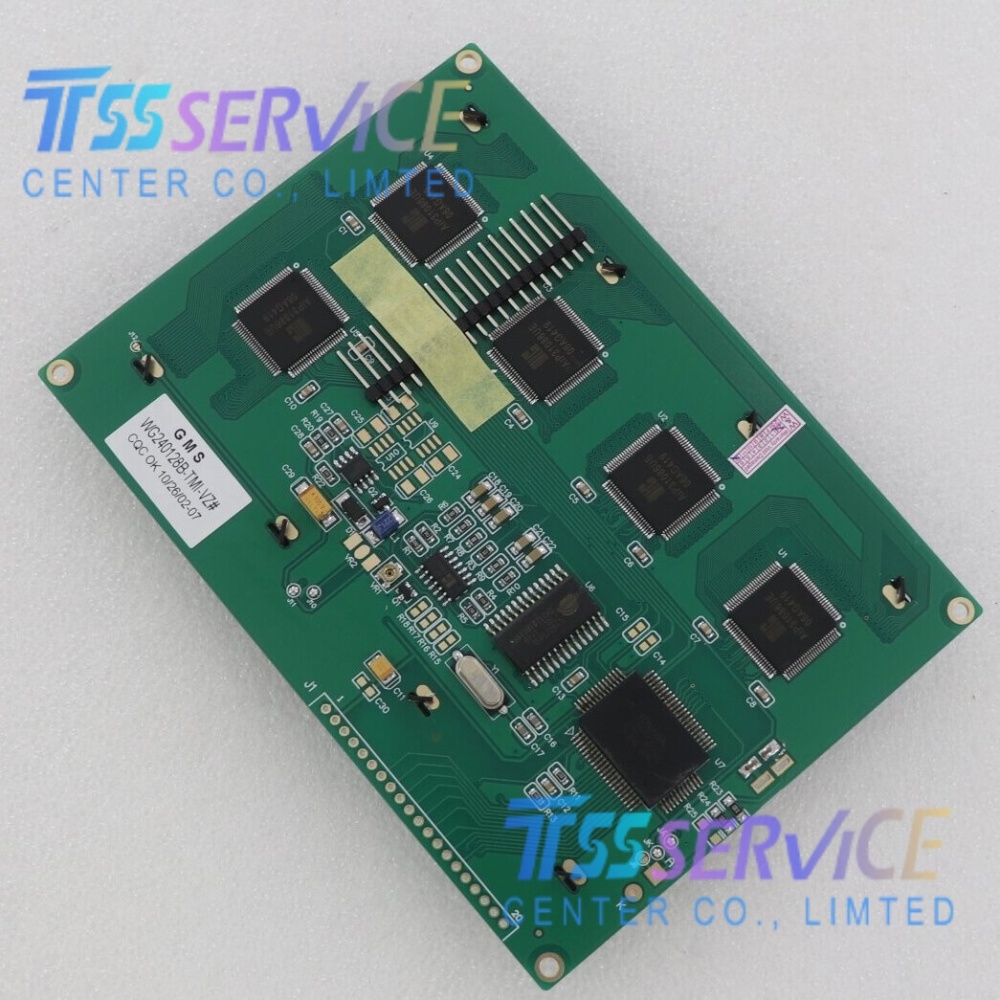

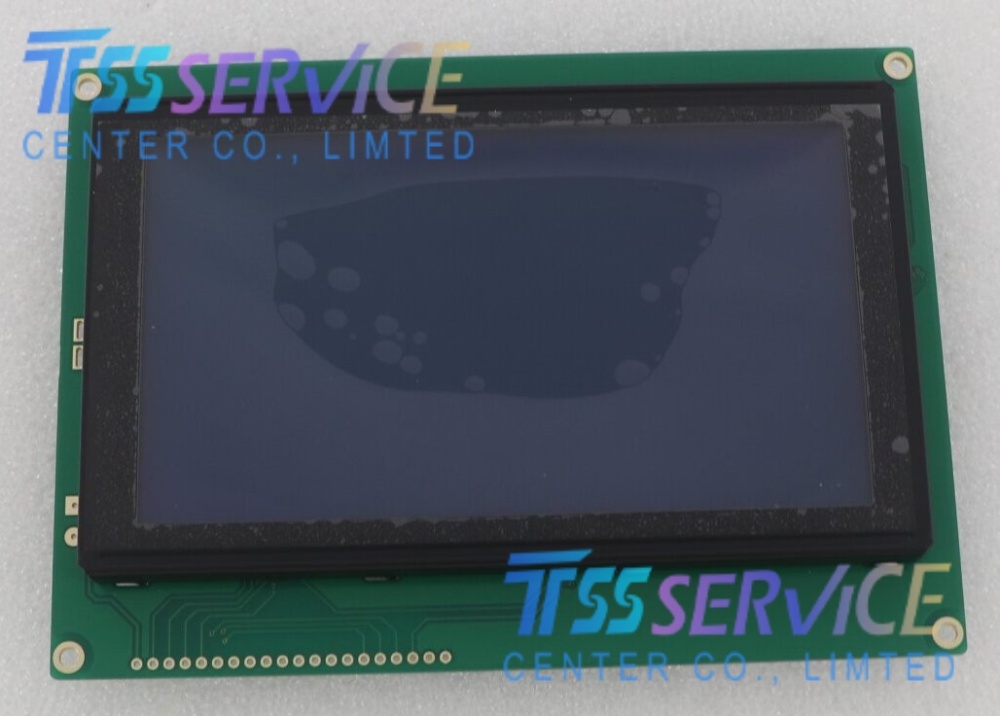

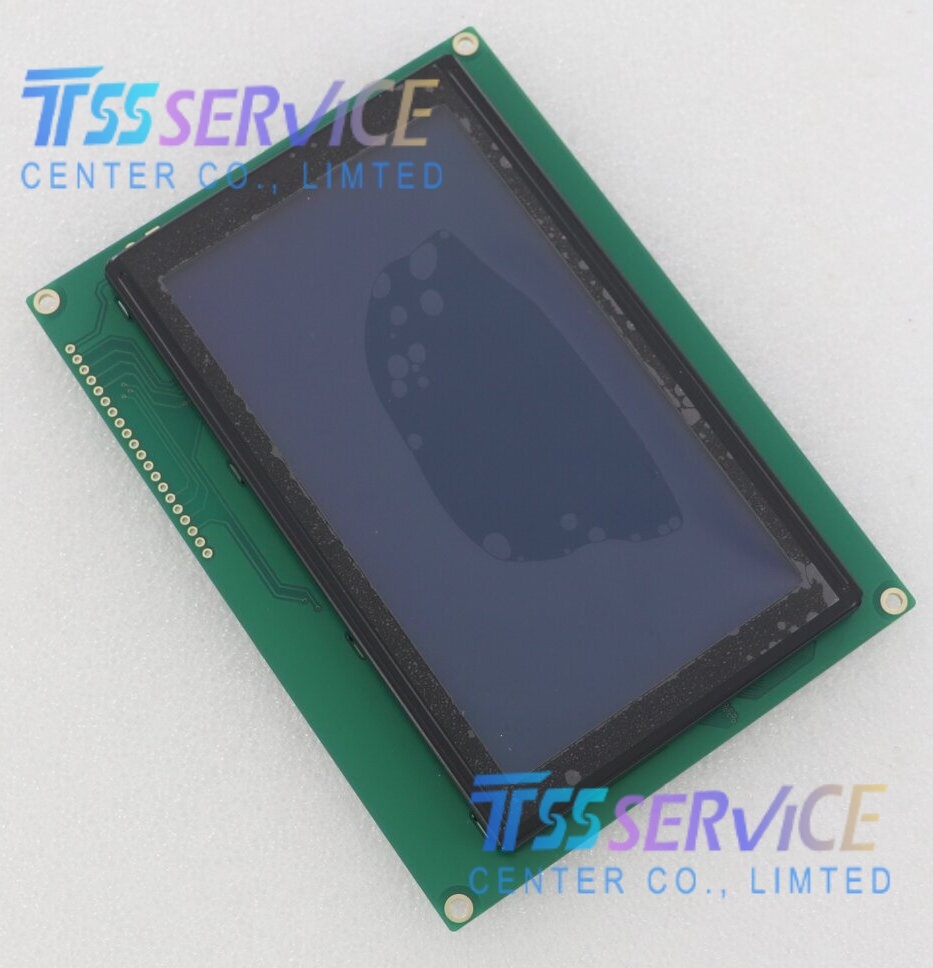

WG240128B-TMI-VZ# 240*128 LCD Display Screen For Industrial

Name: WG240128B-TMI-VZ# 240*128 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: WG240128B-TMI-VZ#
Price: 85 USD
Availability: InStock

SKU: WG240128B-TMI-VZ#

Model: WG240128B-TMI-VZ#
Display Type: Monochrome Graphic LCD
Resolution: 240 × 128 dots

0.0 (0 Reviews)

0 Sold

~~$88.00~~ $85.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

WG240128B-TMI-VZ# 240*128 LCD Display Screen For Industrial

Item	Description
Model	WG240128B-TMI-VZ#
Display Type	Monochrome Graphic LCD (STN Negative, Blue/White, Transmissive)
Resolution	240 × 128 dots
Viewing Area (AA)	107.98 × 57.58 mm
Module Size	144.0 × 104.0 × 13.0 mm (max)
Dot Size / Pitch	0.43 × 0.43 mm / 0.45 × 0.45 mm
Controller	RA6963 (built-in, with negative voltage generator)
Interface	8080 8-bit Parallel (20 pins, 2.54mm pitch)
Backlight	White LED
Display Mode	Graphic / Character
Viewing Direction	6 o’clock (6H)
Supply Voltage	+5.0V (single power, internal negative voltage)
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Construction	COB (Chip On Board)
Touch Panel	Optional 4-wire resistive touch (TMI = touch model)
RoHS	Compliant

Typical Applications

Industrial HMI & Control: PLC interfaces, factory automation, CNC equipment, sensor data visualization, process monitoring systems.
Medical Devices: Patient monitors, diagnostic analyzers, portable medical instruments (high contrast, wide temperature range).
Test & Measurement: Oscilloscopes, spectrum analyzers, power meters, data loggers, environmental monitoring stations.
Smart Home & Appliances: HVAC controls, industrial refrigeration, vending machines, energy management systems, kitchen equipment.
Marine & Light Industrial: Cabin instrumentation, control panels for machinery, indoor indicators (high visibility with LED backlight).
