WG240128B-YYH-VZ Compatible LCD Display Screen For Industrial

Name: WG240128B-YYH-VZ Compatible LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: WG240128B-YYH-VZ
Price: 85 USD
Availability: InStock

SKU: WG240128B-YYH-VZ

Model Number: WG240128B-YYH-VZ
Resolution: 240 (columns) × 128 (rows)
Display Type: STN Positive, Transflective

0.0 (0 Reviews)

0 Sold

~~$88.00~~ $85.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

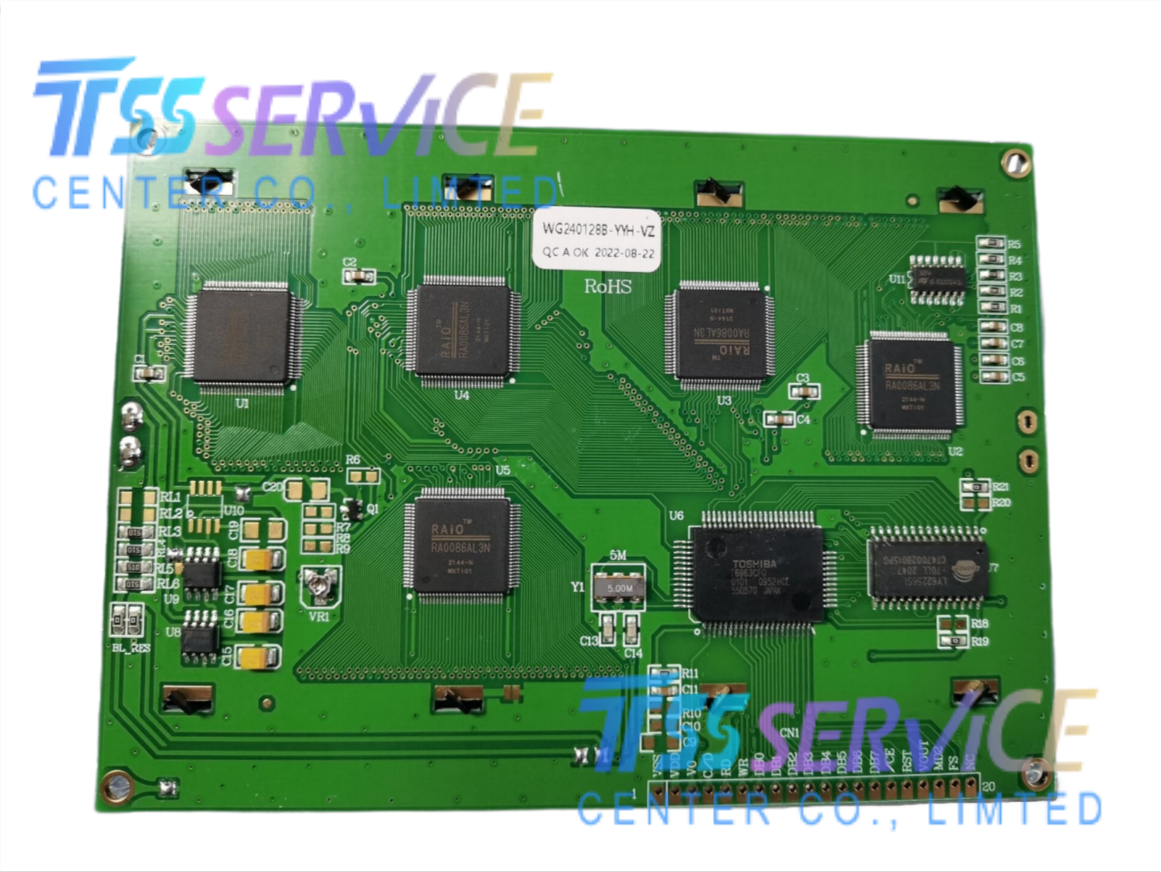

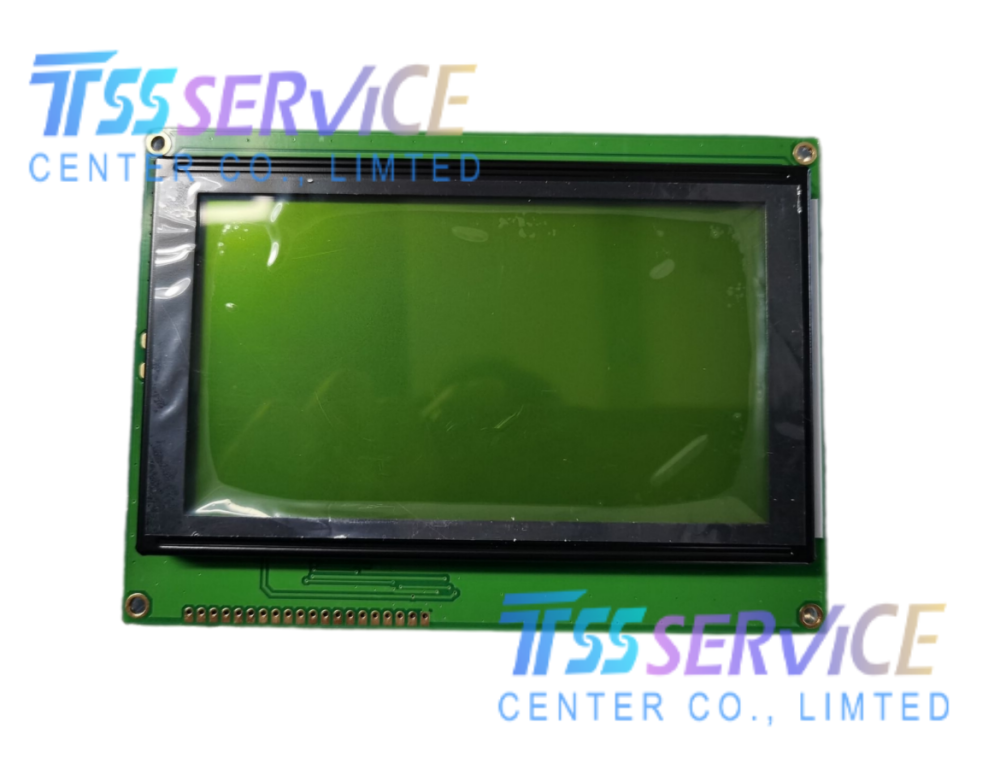

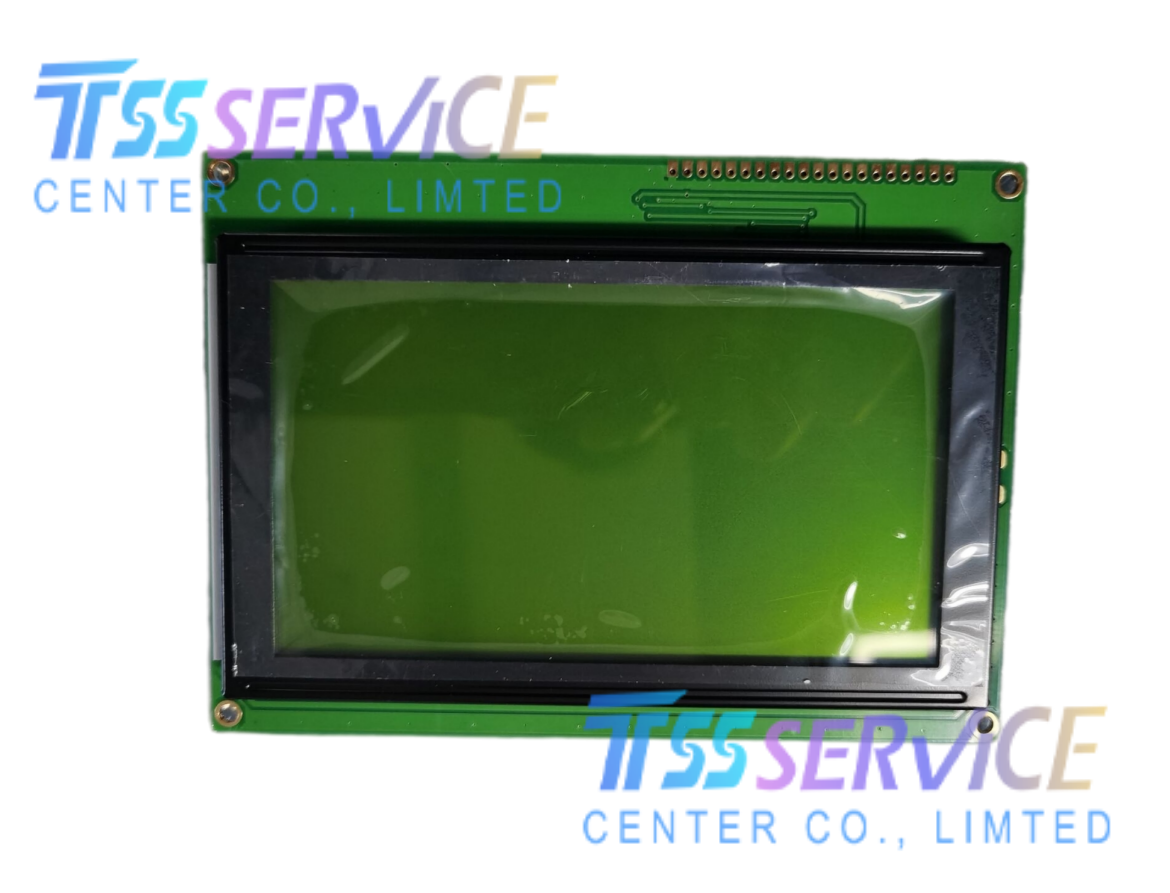

WG240128B-YYH-VZ Compatible LCD Display Screen For Industrial

Parameter	Specification	Unit
Model Number	WG240128B-YYH-VZ	–
Resolution	240 (columns) × 128 (rows)	dots
Display Type	STN Positive, Transflective	–
Display Color	Yellow-Green (BG), Black (Font)	–
Controller IC	RA6963 (compatible with T6963C)	–
Interface	8-bit Parallel (8080 mode)	–
Backlight	Yellow-Green LED	–
Module Size	144.0 × 104.0 × 14.3 (max)	mm
Viewing Area	114.0 × 64.0	mm
Active Area	107.98 × 57.58	mm
Dot Size	0.43 × 0.43	mm
Dot Pitch	0.45 × 0.45	mm
Viewing Direction	6 o’clock	–
Duty / Bias	1/128 duty, 1/12 bias	–
Operating Voltage (VDD)	5.0 (4.5–5.5)	V
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Construction	COB (Chip On Board)	–
RoHS Compliant	Yes	–
