| Manufacturer |
Winstar Display |
| Model |

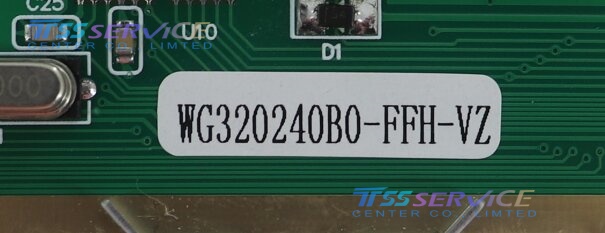

WG320240B0-FFH-VZ |
| Panel Type |

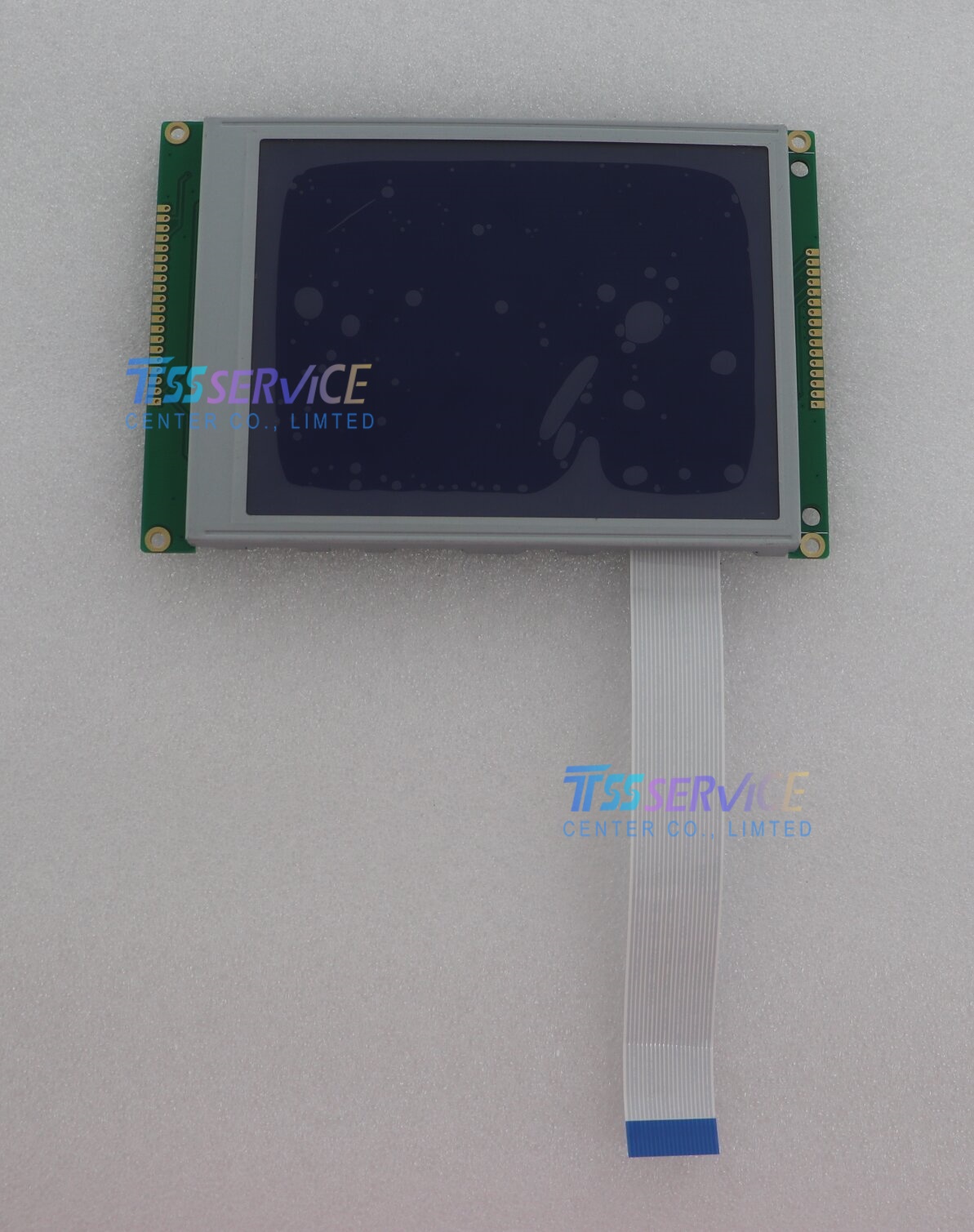

Monochrome Graphic LCD (STN / FSTN) |
| Size |
5.7" (Diagonal) |
| Resolution |
320 × 240 (QVGA) |
| Active Area |
115.18 × 86.38 mm |
| Outline Dimension |
160.0 × 109.0 × 11.0 mm |
| Dot Size / Pitch |
0.34 × 0.34 mm / 0.36 × 0.36 mm |
| Display Mode |
FSTN Positive / Transflective |
| Display Color |
White on Blue (Negative) |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp), White |
| Controller IC |
RA8835 (or S1D13700) |
| Interface |
8-bit Parallel (6800 / 8080) |
| Power Supply |
5.0 V DC (Typ.) |
| Supply Current |
120 mA (Typ., with backlight) |
| Viewing Direction |
6 o’clock |
| Operating Temp. |
-20°C ~ +70°C |
| Storage Temp. |
-30°C ~ +80°C |
| Features |
Built-in Negative Voltage Generator, Temperature Compensation |
| Touch Screen |
Optional (Resistive Touch Panel) |
| Weight |
~250 g |
