WG320240B0-TTI-VZ Compatible LCD Module For Industrial

Name: WG320240B0-TTI-VZ Compatible LCD Module For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: WG320240B0-TTI-VZ
Price: 95 USD
Availability: InStock

SKU: WG320240B0-TTI-VZ

Model P/N: WG320240B0-TTI-VZ
Diagonal Size: 5.7"
Panel Type: STN, Negative, Transmissive
Pixel Number: 320 × 240 (QVGA)

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $95.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

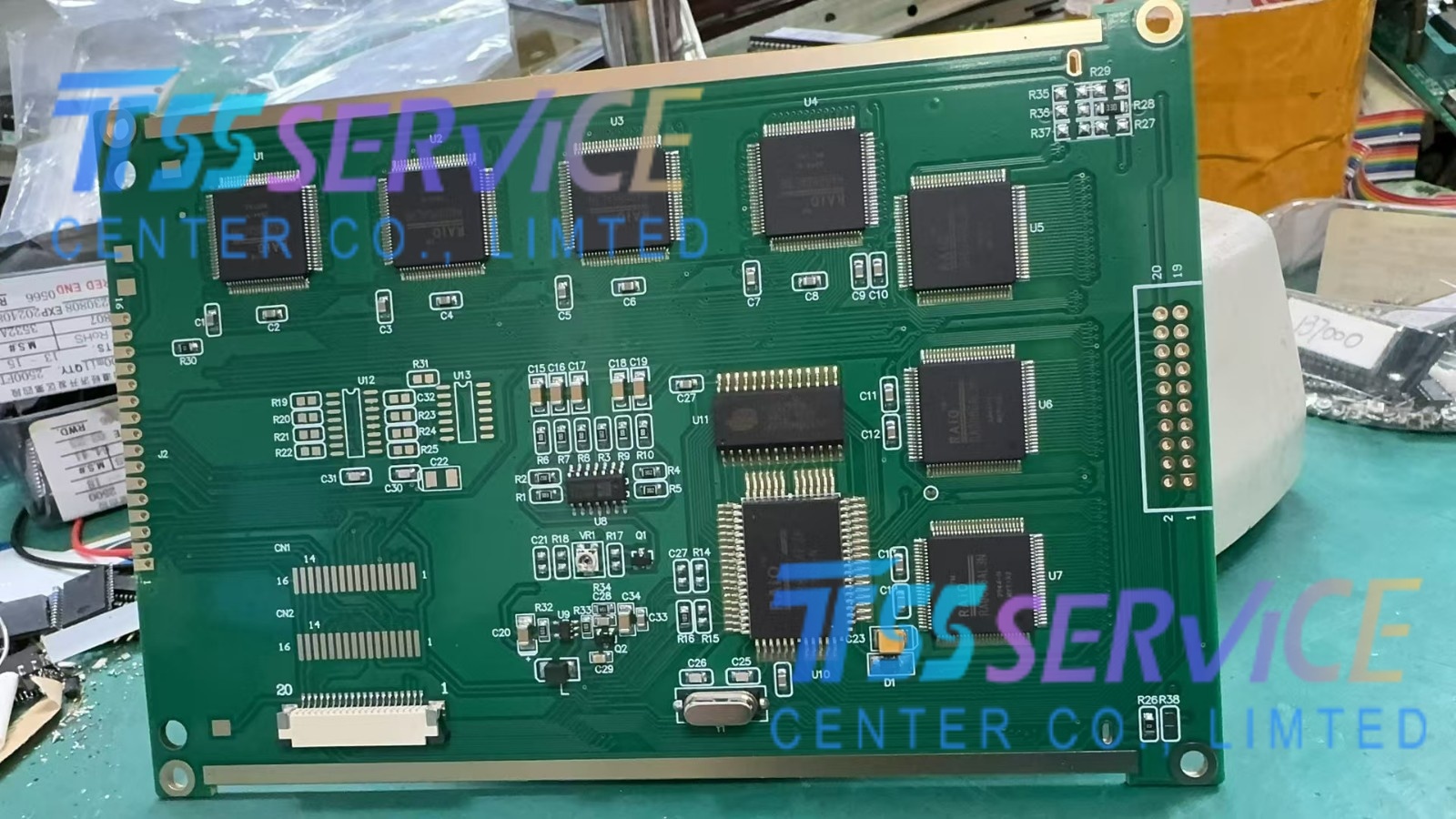

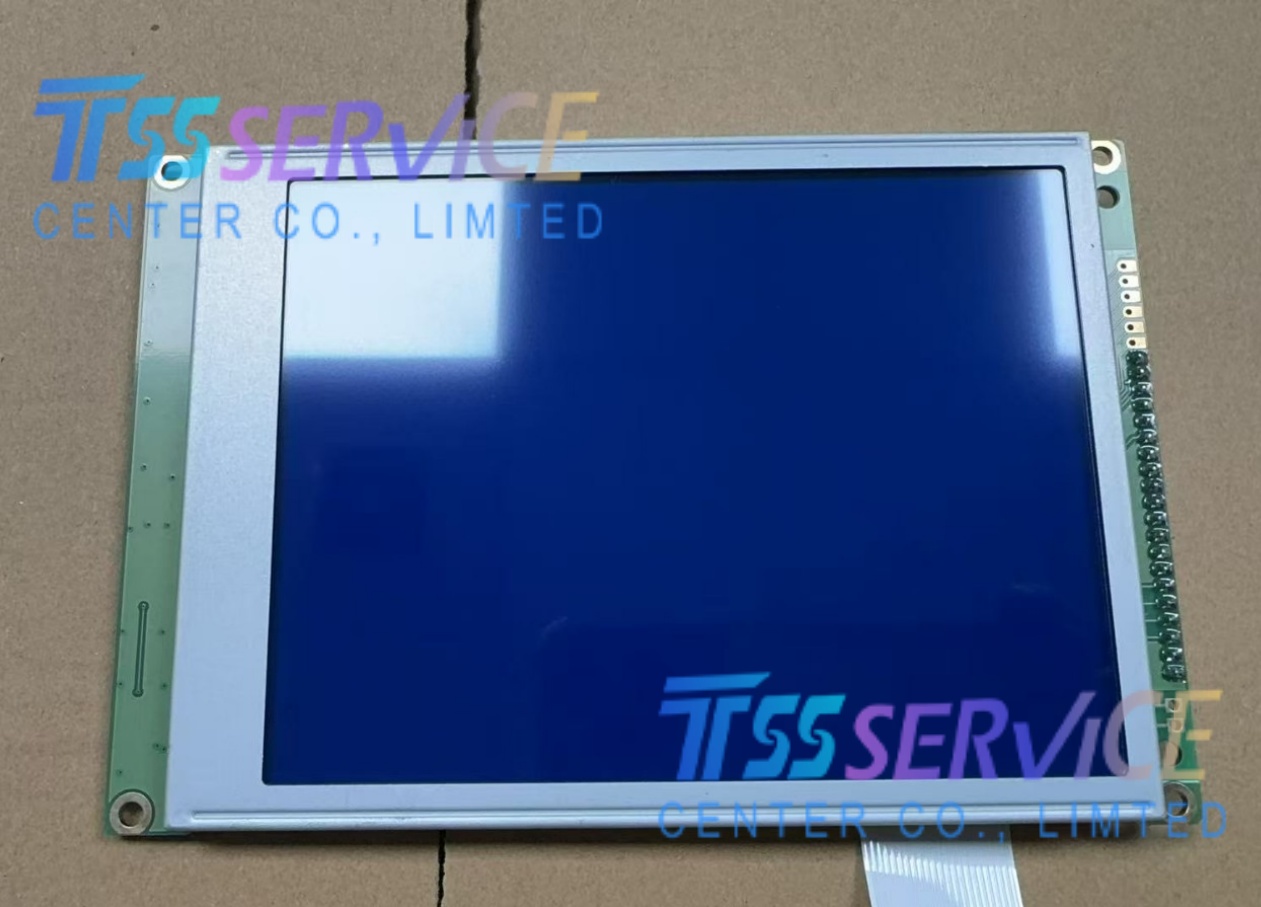

WG320240B0-TTI-VZ Compatible LCD Module For Industrial

Parameter	Specification
Manufacturer	Winstar Display
Model	WG320240B0-TTI-VZ
Panel Type	STN, Negative, Transmissive
Diagonal Size	5.7 inches
Resolution	320 × 240 (QVGA)
Active Area	115.18 × 86.38 mm
Outline Dimension	160.0 × 109.0 mm
Dot Size	0.34 × 0.35 mm
Display Mode	Monochrome (White on Blue)
Viewing Direction	6:00 (Bottom View)
Backlight	White LED (Edge-lit)
Controller IC	RA8835
Interface	8-bit Parallel (6800/8080)
Supply Voltage	5.0 V DC (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Touch Screen	Resistive Touch Panel (Integrated)
Special Features	Built-in Negative Voltage Generator, Temperature Compensation
Weight	Approx. 280 g

Applications

Industrial Control Systems: PLC HMI panels, machine tool displays, factory automation terminals
Medical Equipment: Patient monitors, diagnostic devices, portable medical instruments
Test & Measurement: Oscilloscopes, data loggers, multimeters, industrial test equipment
Automotive: On-board diagnostics (OBD), vehicle control panels, infotainment displays
Smart Home & Consumer Electronics: Home automation panels, industrial appliances, control interfaces
Marine & Rugged Environments: Industrial marine displays, outdoor equipment, harsh-condition monitoring
