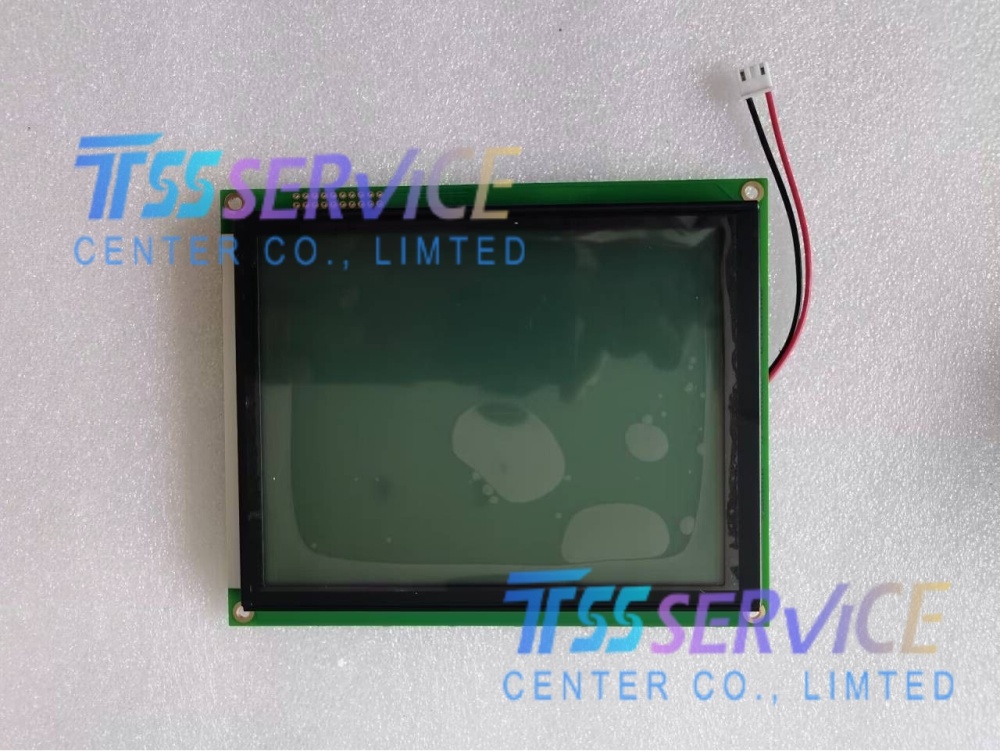

WG320240C0-FFK-TZ Compatible 320 × 240 LCD Panel Screen For Industrial
| Parameter |
Specification |
| Model |
WG320240C0-FFK-TZ |
| Display Size |
5.7 inches |
| Panel Type |
FSTN, Positive, Transflective, Monochrome |
| Resolution |
320 × 240 pixels (QVGA) |
| Aspect Ratio |
4:3 |
| Active Area |
115.18 (W) × 86.38 (H) mm |
| Outline Dimensions |
148.02 × 120.24 × 13.2 mm |
| Dot Size / Pitch |
0.34 × 0.34 mm / 0.36 × 0.36 mm |
| Viewing Direction |
6 o’clock |
| Contrast Ratio |
Typical 200:1 |
| Backlight |
White LED, side-mounted, long lifespan |
| Controller |
RA8835 (compatible with SED1335) |
| Interface |
8-bit parallel, 6800 / 8080 MCU compatible |
| Power Supply (VDD) |
5.0V ±10% (logic), built-in negative voltage |
| Operating Temperature |
-20°C ~ +70°C (wide temp) |
| Storage Temperature |
-30°C ~ +80°C |
| Net Weight |
Approx. 350g |
| Features |
COB, built-in voltage generator, temperature compensation option |
Typical Applications
-
- PLC panels, factory automation, machinery HMIs.
- Real-time display of pressure, temperature, flow data.
-
- Patient monitors, diagnostic devices, portable medical instruments.
- Stable performance in clinical and mobile environments.
-
Test & Measurement Instruments
- Oscilloscopes, spectrum analyzers, power meters, data loggers.
- Clear monochrome graphics for waveforms and parameter lists.
-
- Industrial gateways, smart controllers, edge devices.
- Low power, wide voltage, easy MCU integration.
-
Outdoor & Handheld Devices
- Transflective design for sunlight readability.
- Field terminals, agricultural/construction equipment displays.
