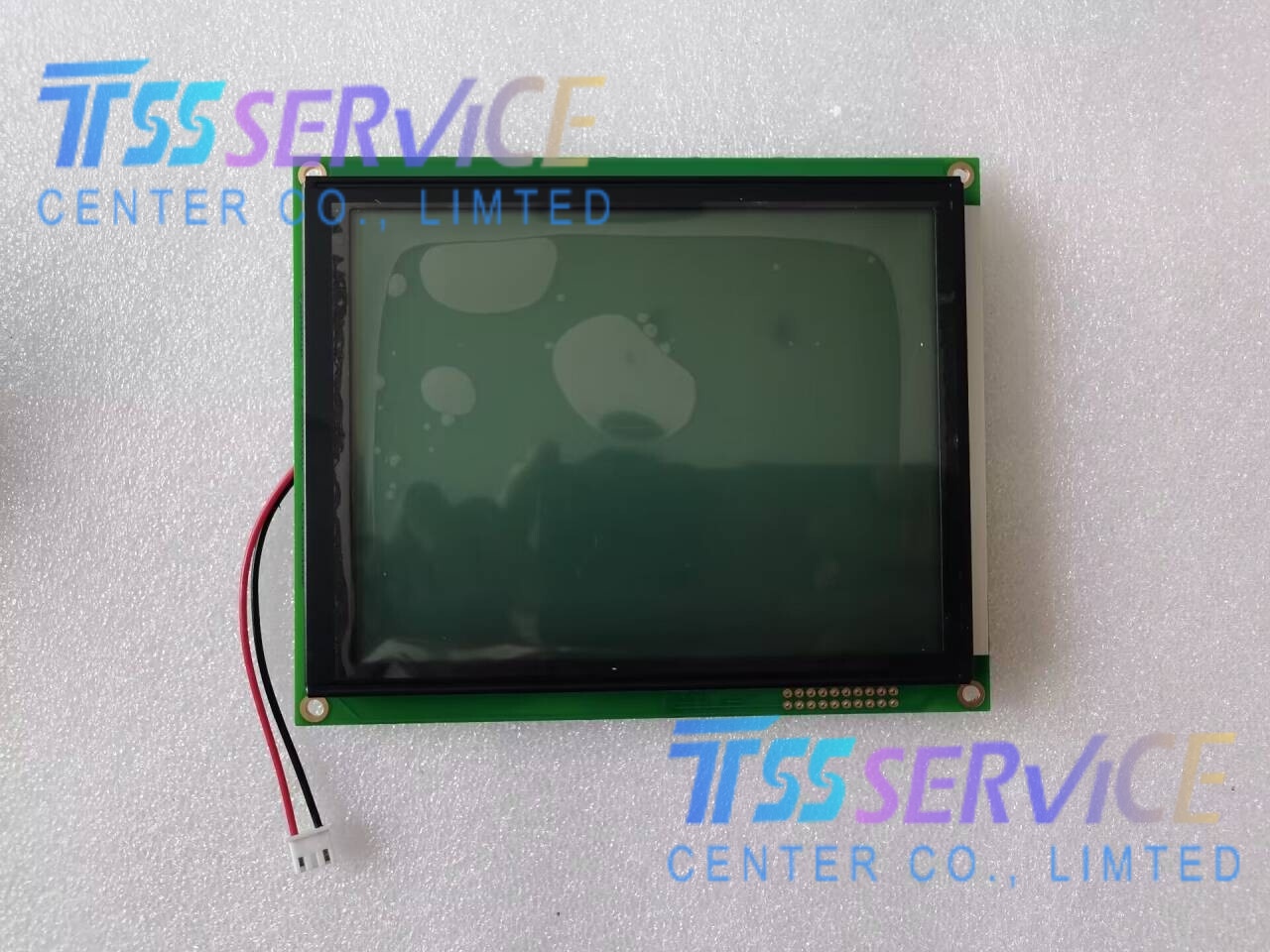

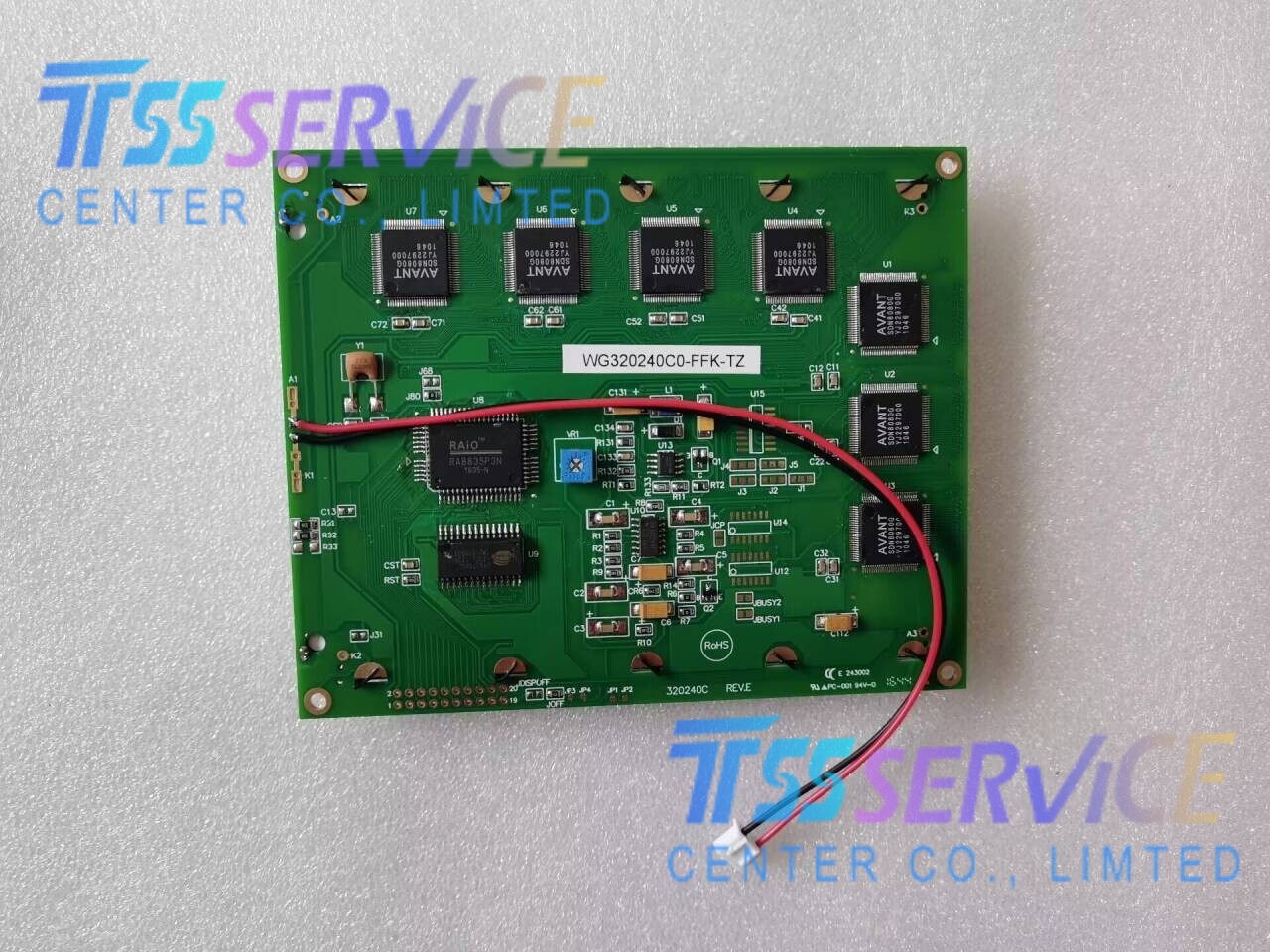

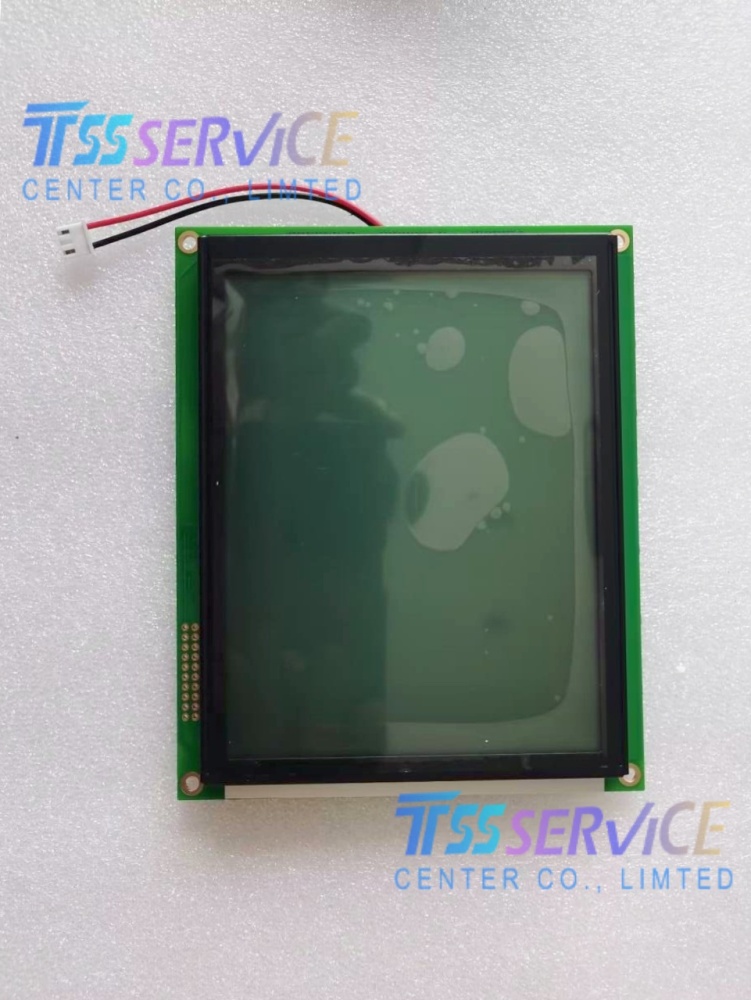

WG320240C0-TFH-TZ 5.7 Inch Industrial LCD Screen Panel

Name: WG320240C0-TFH-TZ 5.7 Inch Industrial LCD Screen Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: WG320240C0-TFH-TZ
Price: 80 USD
Availability: InStock

SKU: WG320240C0-TFH-TZ

Model: WG320240C0‑TFH‑TZ
Diagonal Size: 5.7 inch
Resolution: 320 × 240 dots (Graphic)
Panel Type: FSTN Positive, Monochrome

0.0 (0 Reviews)

0 Sold

~~$85.00~~ $80.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

WG320240C0-TFH-TZ 5.7 Inch Industrial LCD Screen Panel

Parameter	Specification
Manufacturer	Winstar (WG)
Model	WG320240C0‑TFH‑TZ
Diagonal Size	5.7 inch
Resolution	320 × 240 dots (Graphic)
Panel Type	FSTN Positive, Monochrome
Display Mode	Black on White, Transflective
Backlight	White LED, High Brightness (TFH)
Interface	8‑bit Parallel (8080/6800)
Driver IC	RA8835 (with built‑in voltage generator & temperature compensation)
Supply Voltage	5.0 V
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Module Dimensions	148.02 × 120.24 × 21.0 mm
Active Area	115.18 × 86.38 mm
Dot Pitch / Size	0.36 × 0.36 mm / 0.34 × 0.34 mm
Viewing Direction	6:00
Module Construction	COB (Chip on Board)

Typical Applications

Industrial Control & HMIs: PLCs, factory automation terminals, and industrial control panels.
Test & Measurement: Oscilloscopes, spectrum analyzers, data loggers, and precision meters.
Medical Devices: Portable patient monitors, diagnostic equipment, and medical instruments.
Transportation: Marine navigation displays, vehicle dashboard systems, and agricultural machinery.
Outdoor Equipment: Solar‑powered systems, weather stations, and outdoor monitoring units.
Telecom Infrastructure: Base station controllers and network monitoring devices.
