WOP-2070T-N2AE Advantech 7" WVGA Industrial HMI Touch Screen Operator Panel

SKU: WOP-2070T-N2AE

Display & Touch: 7" 800×480 WVGA TFT LCD, industrial resistive touch panel, stable for long-time workshop usage
Rich Interfaces: RS232/485 + RJ45 Ethernet + USB Host + Micro SD card slot for data storage & program update
Rugged Structure: IP66/NEMA4 front panel, DC24V power input, working range 0~50℃ for harsh industrial environment
Wide Compatibility: Supports 300+ PLC communication protocols, perfect for packaging, beverage, water treatment, textile automation equipment

0.0 (0 Reviews)

0 Sold

~~$365.00~~ $358.00

Received successfully

Coupon Code

Description

WOP-2070T-N2AE Advantech 7" WVGA Industrial HMI Touch Screen Operator Panel

Item	Specification Details
Model	WOP-2070T-N2AE (WebOP-2000T Series, Advantech)

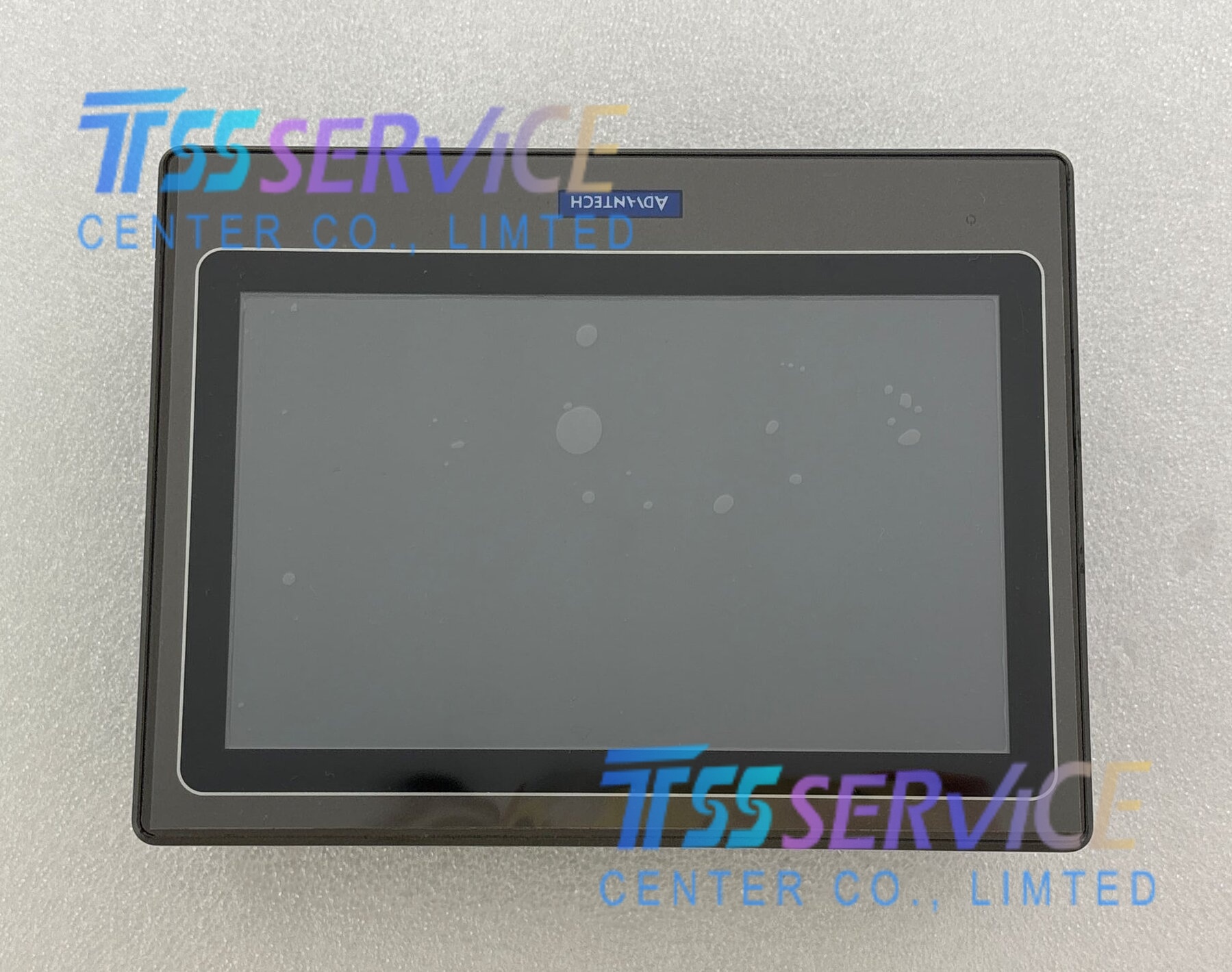

Display	7” TFT LCD WVGA, 800×480 resolution, LED backlight, adjustable brightness via touchscreen
Touch Panel	Analog resistive touch screen, industrial grade
CPU	200MHz ARM9 RISC processor, real-time embedded OS
Memory	64MB SDRAM + 8MB NOR Flash + 128MB NAND Flash (N2AE version extra large storage)

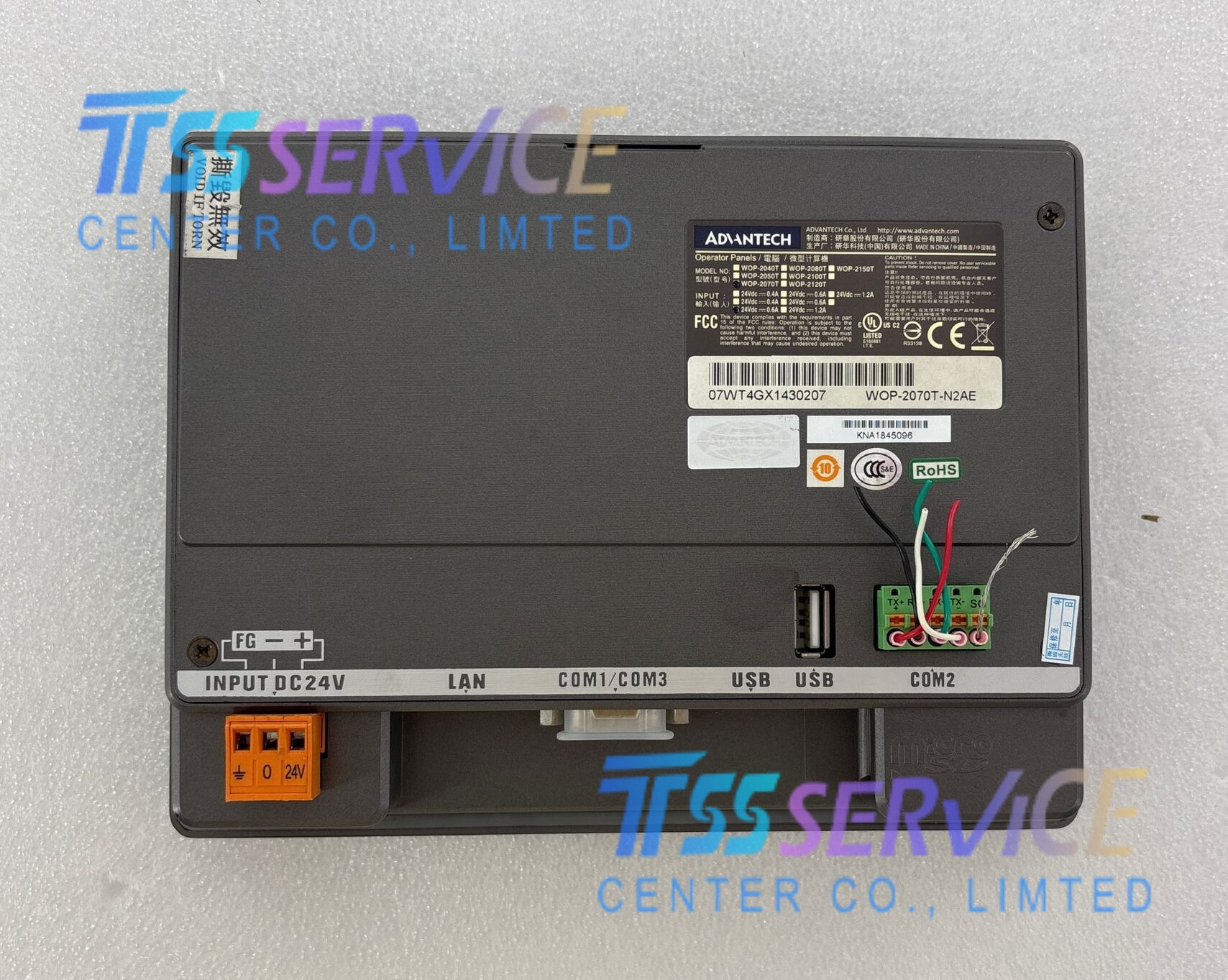

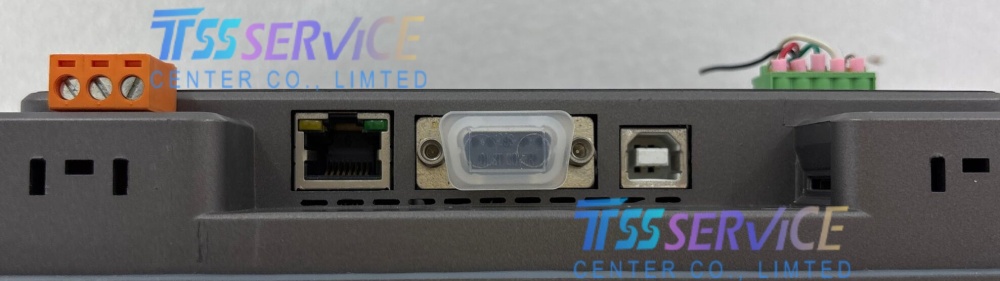

Communication Port	RS232/422/485 ×1, 10/100Mbps Ethernet RJ45, USB Host, Micro-SD card slot
Power Input	DC 24V ±10%, max power consumption:10W
Mechanical Size	188×143.3×30mm (7.4×5.64×1.18inch), Net weight:0.6kg(1.32lbs), panel embedded mounting
Front Panel Rating	NEMA4 / IP66 dustproof & waterproof
Working Temp	0℃ ~ +50℃ (32℉~122℉); Storage Temp: -20℃~+60℃(-4℉~140℉)
Software	Developed by WebOP Designer (Windows XP/Vista), support screen horizontal/vertical rotation
Protocol	Compatible with over 300 kinds of mainstream PLC communication protocols, connect up to 4 different controllers simultaneously
Certifications	CE, UL, FCC Class A, CCC, BSMI approved
Extra Function	RTC real-time clock, 128KB battery backup RAM for off-line data storage

Application Description

Core Application Fields

Packaging & Printing Machinery
Used as machine operation panel for automatic filling machine, slitting machine, labeling equipment, carton sealing machine; realize parameter setting, production count monitoring and fault alarm of packaging line.
Food & Beverage Automation Equipment
Control & monitor mixing, filling, sterilization production line; match PLC & inverter to adjust conveyor speed and recipe data storage.
Motion Control & Automated Dispensing Equipment
Fit robotic dispensing, screw locking automation; connect motion controller to set moving stroke, speed parameter and real-time position monitoring.
Water Treatment & Environmental Equipment
Monitor sewage treatment pump, dosing system, filter unit; remote data upload via Ethernet for mini on-site SCADA management.
Building & HVAC Automation
Control central air-conditioning unit, fresh air system, water pump group; collect temperature/humidity sensor data and local parameter modification.
Textile & Plastic Processing Machine
Textile spinning loom, plastic injection auxiliary equipment, extruder HMI terminal; track equipment running status and production yield statistics.
Small Factory Mini SCADA & Communication Gateway
Act as protocol conversion gateway between multi-brand PLCs; realize centralized monitoring for decentralized small automation production line.
