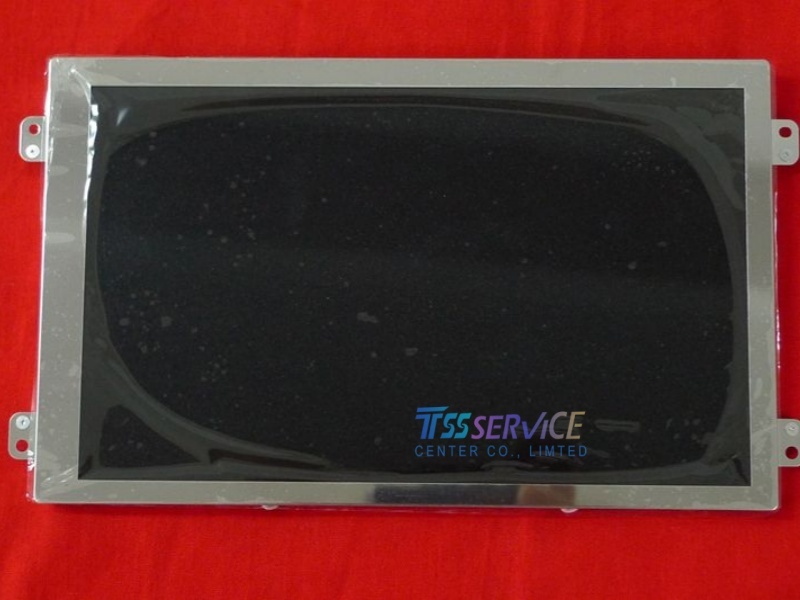

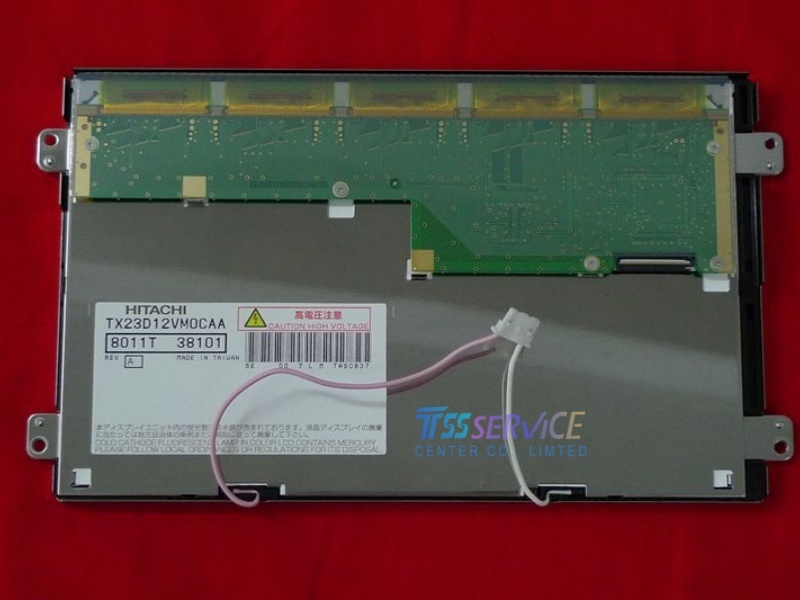

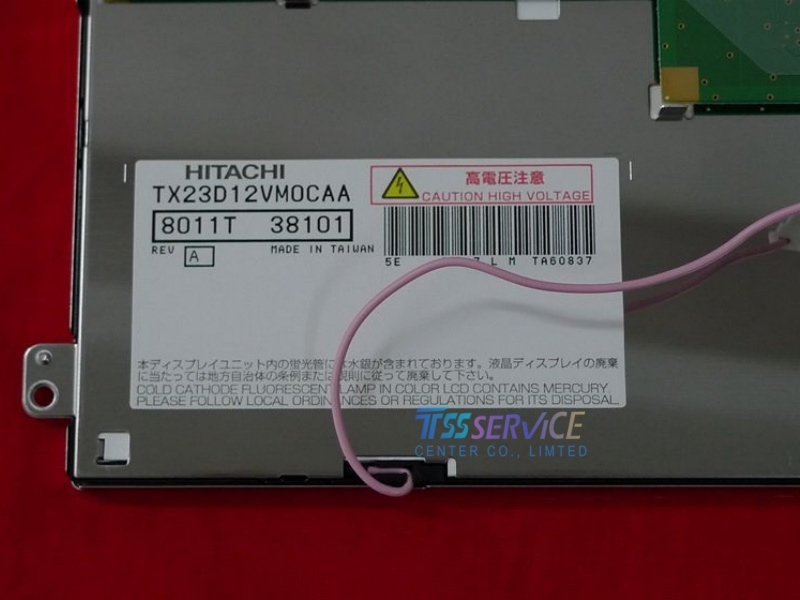

The TX23D12VM0CAA is a high-quality 9.0-inch diagonal TFT-LCD module designed for applications requiring a larger viewing area with standard WVGA resolution. Its 800(RGB) x 480-pixel format delivers clear and sharp visuals for both graphical user interfaces and video content.
The TX23D12VM0CAA serves as an ideal display solution for a broad spectrum of industrial and commercial applications, including industrial human-machine interfaces (HMI), point-of-sale (POS) systems, medical devices, transportation displays, and smart home controllers.
| Feature | Specification |
|---|---|
| Model | TX23D12VM0CAA |
| Display Type | a-Si TFT LCD, Transmissive |
| Screen Size | 9.0 inches (Diagonal) |
| Active Area | 195.0 × 117.0 mm (Typical, for reference) |
| Resolution | 800 (RGB) × 480 pixels (WVGA) |
| Pixel Pitch | ~0.2438 (H) × ~0.2438 (V) mm (Estimated) |
| Aspect Ratio | 15:9 |
| Brightness (Typ.) | 300 cd/m² (Typ.) |
| Contrast Ratio | High contrast (e.g., 500:1 or higher, please verify) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) |
| Interface | CMOS (1 ch, 6-bit) , 40 pins Connector |
| Backlight | White LED, Edge-lit |
| Backlight Life | 50,000 hours (Typ., please verify) |
| Operating Temperature | -20 ~ +70 °C (Industrial grade, typical) |
| Supply Voltage | 3.3V (Logic) & LED driver voltage (e.g., 12-24V, please verify) |
The TX23D12VM0CAA is specifically designed for industrial applications requiring wide viewing angles, including :
Industrial Human-Machine Interfaces (HMI) – Operator terminals, factory automation
Medical Equipment – Patient monitors, diagnostic displays
Test & Measurement Instruments – Benchtop equipment with shared viewing
Kiosk Systems – Public information displays
Professional Audio/Video Equipment
