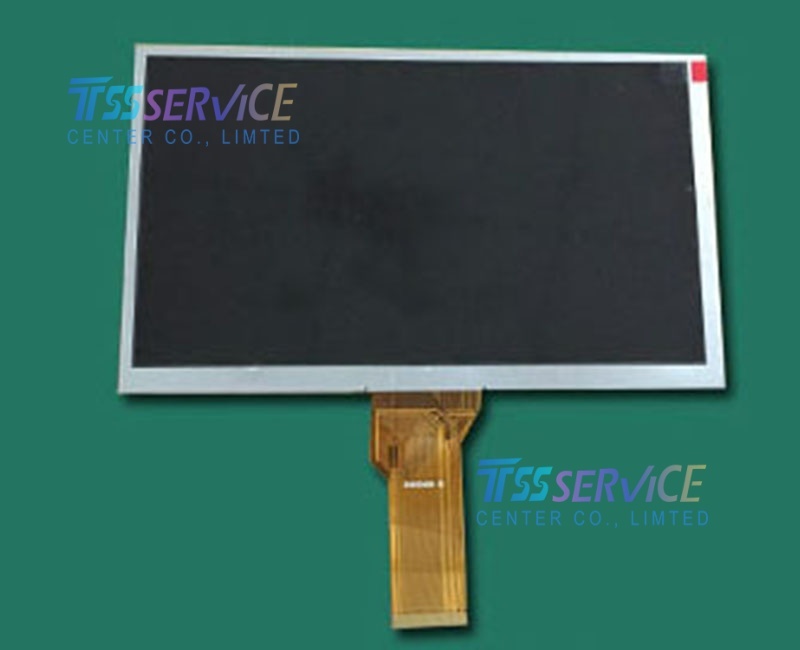

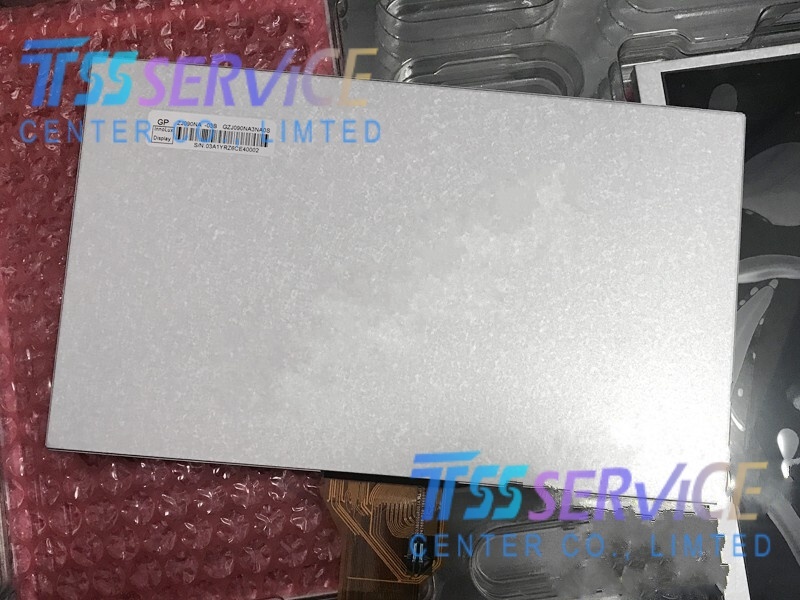

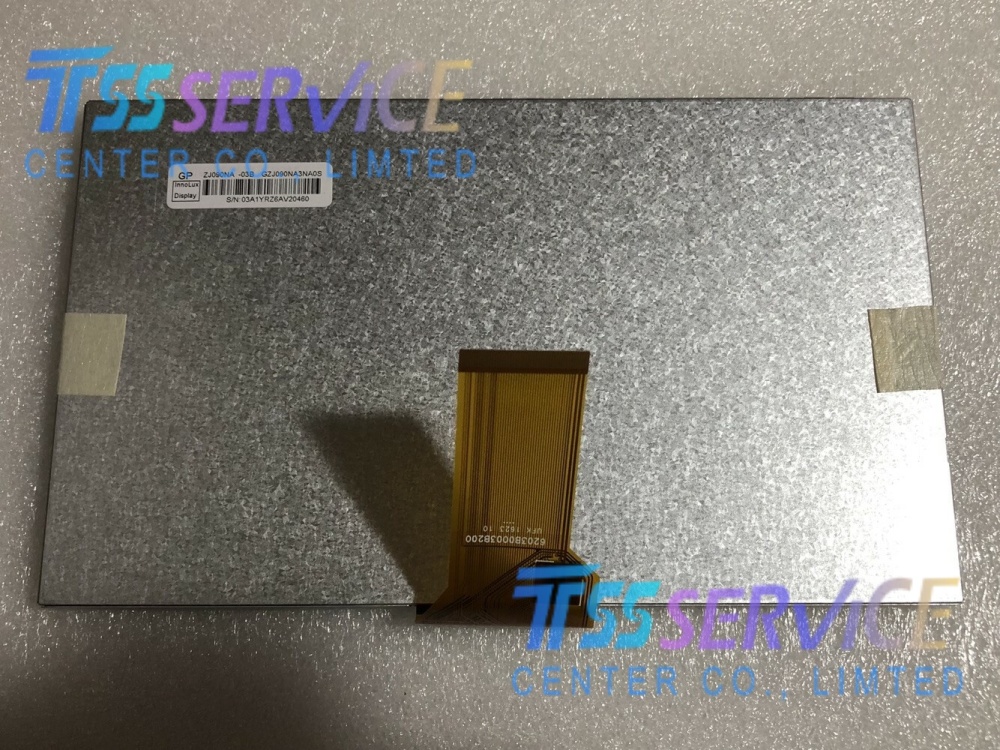

Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial

SKU: ZJ090NA-03B
Model: ZJ090NA-03B
Diagonal Size: 9.0 inch
Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480 (WVGA, 16:9)
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$30.00 $27.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
  • Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
  • Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
  • Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
  • Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
  • Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
1/1
  • Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
  • Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
  • Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
  • Description
Innolux ZJ090NA-03B 9.0 inch 800x480 WVGA TFT LCD Display for Industrial
Parameter Details
Brand Innolux
Model ZJ090NA-03B
Diagonal Size 9.0 inch
Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×480 (WVGA, 16:9)
Pixel Format RGB Vertical Stripe
Active Area 198(H) × 111.696(V) mm / 7.80" × 4.40"
Outline Size 211.1(H) × 126.5(V) × 6.2(D) mm / 8.31" × 4.98" × 0.24"
Weight 262g (Typ.) / 0.58 lb
Luminance 500 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Response Time 10/15 ms (Typ.) (Tr/Td)
View Direction 6 o'clock
Viewing Angle 70°/70°/50°/70° (Typ., CR≥10)
Display Mode TN, Normally White, Transmissive
Display Colors 16.7M, 50% NTSC
Backlight WLED, 20,000 hrs lifespan, Without Driver
Refresh Rate 60Hz
Touch Panel Without Touchscreen
Interface Parallel RGB (1 ch, 8-bit), 50-pin FPC Connector
Power Supply 3.3/10.4/17.0/-5.0V (Typ.)
Operating Temperature -30 ~ +80 °C
Storage Temperature -40 ~ +90 °C
Surface Feature Anti-Glare (Matte)

Applications

  • Automotive Displays: In-vehicle infotainment, dashboard displays, and rear-seat entertainment systems.
  • Industrial Control Panels: Factory automation HMI, PLC interfaces, and rugged industrial terminals.
  • Outdoor & Marine Equipment: Outdoor monitoring terminals, marine navigation displays, and rugged portable devices.
  • Kiosks & POS Systems: Self-service kiosks, digital signage, and industrial POS terminals.
