New Touch Screen ZM-62E

Name: New Touch Screen ZM-62E
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: ZM-62E
Price: 156 USD
Availability: InStock

SKU: ZM-62E

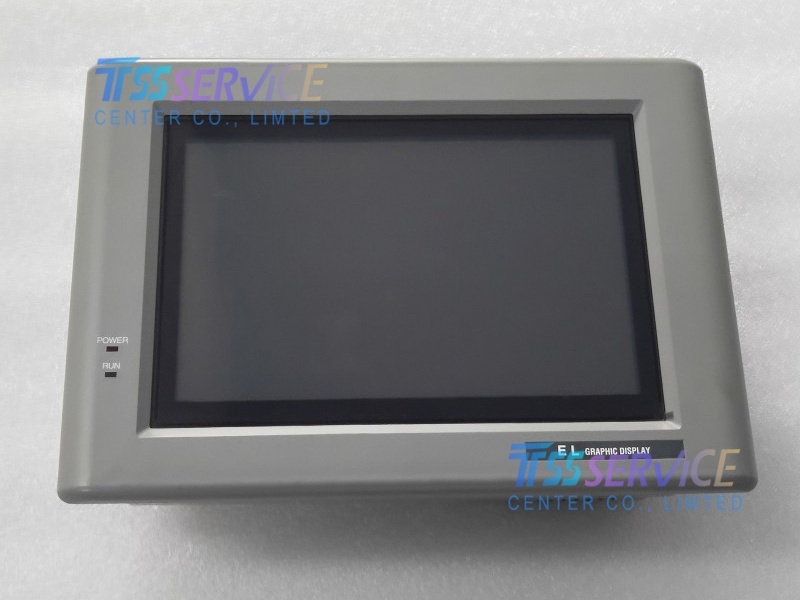

The ZM-62E is a programmable display unit designed for industrial HMI (Human-Machine Interface) applications. It communicates directly with a Programmable Logic Controller (PLC) without requiring complex programming and features an 8.9-inch high-luminance EL (Electroluminescent) panel with a touch screen .

0.0 (0 Reviews)

0 Sold

~~$158.00~~ $156.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

New Touch Screen ZM-62E

⚙️ General Specifications

Category	Specification
Manufacturer	SHARP
Product Type	LCD Control Terminal / Programmable Display Unit
Display Type	High-intensity EL (Electroluminescent) Panel
Display Color	Black / Orange-yellow (plus blinking) -3
Resolution (Pixels)	640 (W) x 400 (H) -3
Effective Display Area	192 mm (W) x 120 mm (H) (8.9 inches diagonal) -3
Dot Pitch	0.3 mm (W) x 0.3 mm (H)
Brightness	200 cd/m² (Typical) -4
Backlight Average Life	Approx. 30,000 hours -3

🔘 Touch Panel Specifications

Parameter	Specification
Type	Matrix resistance film type -3
Switch Resolution	40 (W) x 20 (H) switches -3 -4
Operating Life	1 million touches or more -3
Surface Treatment	Hard coating, anti-glare treatment

🔌 Interface & Communication

Interface Type	Details

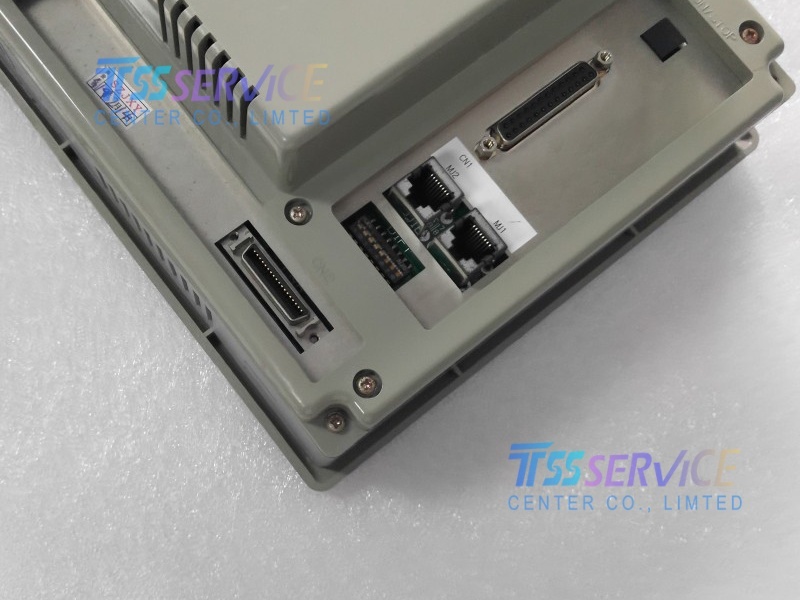

Serial Interface (CN1)	D-sub 25 pins (female) for PLC connection. Supports RS-232C and RS-422/485 -3.
Baud Rate	4800, 9600, 19200, 38400, 57600, 115200 bps (selectable) -3
Data Format	Data length: 7 or 8 bits; Parity: even, odd, or none; Stop bit: 1 or 2 bits
Modular Jacks (MJ1/MJ2)	For Editor connection, Memory Card, Barcode Reader, Multi-Link, etc. -2
Printer Interface (CN2)	Parallel interface (Centronics compatible, 36 pins) for hard copy output -5.
Compatible PLCs	Supports models from SHARP, MITSUBISHI, OMRON, FUJI, SIEMENS, ALLEN-BRADLEY, and over 20 other major manufacturers -2 -3.

⚡ Electrical Specifications

Parameter	Specification

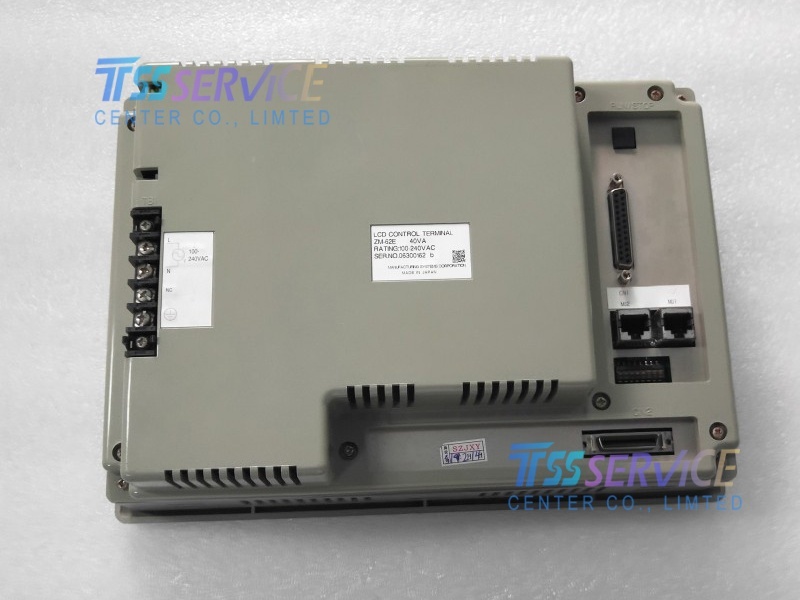

Rated Power Supply	100-240 VAC (47-440 Hz) -3
Permissible Voltage Range	85-265 VAC -3
Power Consumption	25W or less -3
Withstand Voltage	AC external terminals to FG: 1500 VAC for 1 minute
Insulation Resistance	10 MΩ or more (500 VDC)

🌡️ Environmental Specifications

Parameter	Specification
Ambient Operating Temperature	0 to 50°C (32 to 122°F) -2 -3
Relative Humidity	85% RH or less (non-condensing) -2 -3
Storage Temperature	-20 to 60°C (-4 to 140°F)
Protection	Avoid direct sunlight, moisture condensation, dust, corrosive gases, and solvents -2.

📏 Physical Specifications

Parameter	Specification
Dimensions (W x H x D)	288 mm x 203 mm x 95 mm -3
Panel Cut-out	277 mm (+1/-0) x 192 mm (+1/-0) -3
Weight	Approx. 2.5 kg
Mounting	Panel mount (max panel thickness: 5 mm) -3

💾 Memory & Function Specifications

Parameter	Specification
Max. Screens	1024 -3
Screen Memory	FP-ROM (Flash ROM), approx. 760 KB -3
Max. Switches per Screen	192
Switch Actions	Set, reset, momentary, alternate -3
Macro Function	Yes (for bit manipulation and data transmission) -4
Simulator Function	Yes (debug without a PLC)
