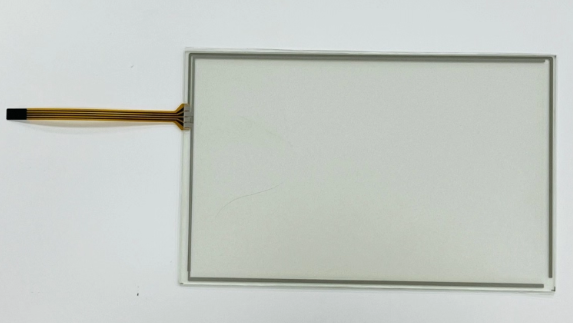

New Touch Screen Digitizer Touch 1301-X461/04-NA

Name: New Touch Screen Digitizer Touch 1301-X461/04-NA
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: 04-na 1301-x461
Price: 31 USD
Availability: InStock

SKU: 04-na 1301-x461

Product Type All-in-One Industrial Panel PC with Automation Runtime
Market Position Premium solution for demanding automation applications requiring HMI, PLC, motion control, and computing in one device
Product Status Likely active/mature in B&R portfolio (predecessor to newer APC series)

0.0 (0 Reviews)

0 Sold

~~$33.00~~ $31.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Parameter

Specification

Display Size

13.3 inches diagonal (337.8 mm)

Aspect Ratio

5:4 (slightly wider than traditional 4:3)

Active Area

270 mm (W) × 202.5 mm (H)

Resolution

1280 × 1024 pixels (SXGA)

Display Technology

TFT LCD with LED backlight, IPS or MVA panel for wide viewing

Color Depth

16.7 million colors (24-bit true color)

Brightness

450 cd/m² (typical)

Contrast Ratio

800:1 (typical)

Response Time

16 ms (Gray-to-Gray typical)

Viewing Angles

170° horizontal, 160° vertical (CR > 10)

Backlight Type

White LED (edge-lit, uniform illumination)

Backlight Lifetime

70,000 hours (typical to half-brightness)

Touch Technology

Projected Capacitive (Multi-touch, supports gestures)

Touch Points

Up to 5 simultaneous touches

Surface Hardness

7H pencil hardness (anti-scratch, chemically strengthened glass)

Front Protection

IP65 (Type 4X/12) when properly installed
NEMA 4/4X/12/13 (dust, water jets, oil resistant)

Mounting

Panel mount (front), 4× M5 screws, metal mounting brackets included

Cutout Dimensions

309 mm × 243 mm (12.17" × 9.57")

Overall Dimensions (W×H×D)

324 mm × 258 mm × 65 mm (12.76" × 10.16" × 2.56")

Weight

Approx. 5.8 kg (12.8 lbs)

Parameter

Specification

Processor

Intel Core i7 or i5 (4th/5th generation, depending on variant)
• Typical: Intel Core i5-4570TE (2.7 GHz, dual-core, 35W TDP)

Architecture

x86-64 (64-bit)

Chipset

Intel QM87 or similar industrial chipset

RAM

4 GB DDR3L (soldered, some variants may support up to 8 GB)
• Error Correcting Code (ECC) optional

Storage

64 GB Industrial mSATA SSD (standard)
• Optional: 128 GB, 256 GB SSD, or CFast card

Graphics

Integrated Intel HD Graphics (supports dual independent displays)

BIOS/Firmware

B&R customized UEFI with automation-specific features

Real-Time Clock

Battery-backed (CR2032, typical 10-year life)

TPM

Trusted Platform Module 2.0 (for security/encryption)

Interface

Specification

Ethernet Port 1

10/100/1000BASE-T (Gigabit Ethernet, RJ45)
• Intel I210 or similar industrial controller

Ethernet Port 2

10/100/1000BASE-T (Gigabit Ethernet, RJ45)
• For network separation or redundancy

USB 3.0 Ports

×4 (Type A, SuperSpeed)
• 5 Gbps data transfer, for peripherals, storage, etc.

USB 2.0 Port

×1 (Type A, for legacy devices)

Serial Port

RS-232/RS-422/RS-485 (9-pin D-Sub, fully isolated, software-configurable)

Fieldbus Interface

POWERLINK (real-time Ethernet) via internal controller
• Optional: EtherCAT, PROFINET, EtherNet/IP via expansion

Video Output

DisplayPort (or HDMI via adapter) for external monitor

Audio

Line-out + microphone in (combo 3.5mm jack)

Expansion Slot

Mini PCIe slot (for wireless: WiFi, 4G/LTE, GPS, etc.)

SD Card Slot

SDXC (supports up to 2 TB cards for data logging, backup)

Parameter

Specification

Integrated Runtime

Automation Runtime (B&R's hard real-time operating system)

PLC Functionality

Full IEC 61131-3 compliant PLC runtime (supports all 5 languages)

Motion Control

Integrated ACOPOS servo drive control (up to 32 axes, depending on license)

Robotics

Integrated robotic functions (pick-and-place, delta, SCARA via mapp Technology)

Safety

Integrated SafeLOGIC (up to SIL 3, Cat. 4, PL e) - optional

CNC

CNC functionality for machining applications (optional)

Vision

Integrated vision processing (via mapp Vision, optional)

Web Server

Built-in web server with OPC UA support (data access, visualization)

Virtualization

Supports hypervisor (run Windows and Automation Runtime simultaneously)

Parameter

Specification

Input Voltage

24 V DC (nominal)

Voltage Range

19.2 V DC to 30.0 V DC

Current Consumption

2.0 A typical @ 24 V DC (48 W)
4.0 A maximum (96 W, with full CPU load, all peripherals)

Inrush Current

30 A maximum for 20 ms

Connection

Removable 3-pin terminal block (24V+, 0V, PE) with screw clamp

Protection

Reverse polarity, overvoltage (up to 40 V DC), overcurrent, short-circuit, thermal

Isolation

2500 V AC (reinforced isolation, input to all other circuits)

Power Buffer

20 ms power buffering (for ride-through brief power losses)

Efficiency

>90% typical
