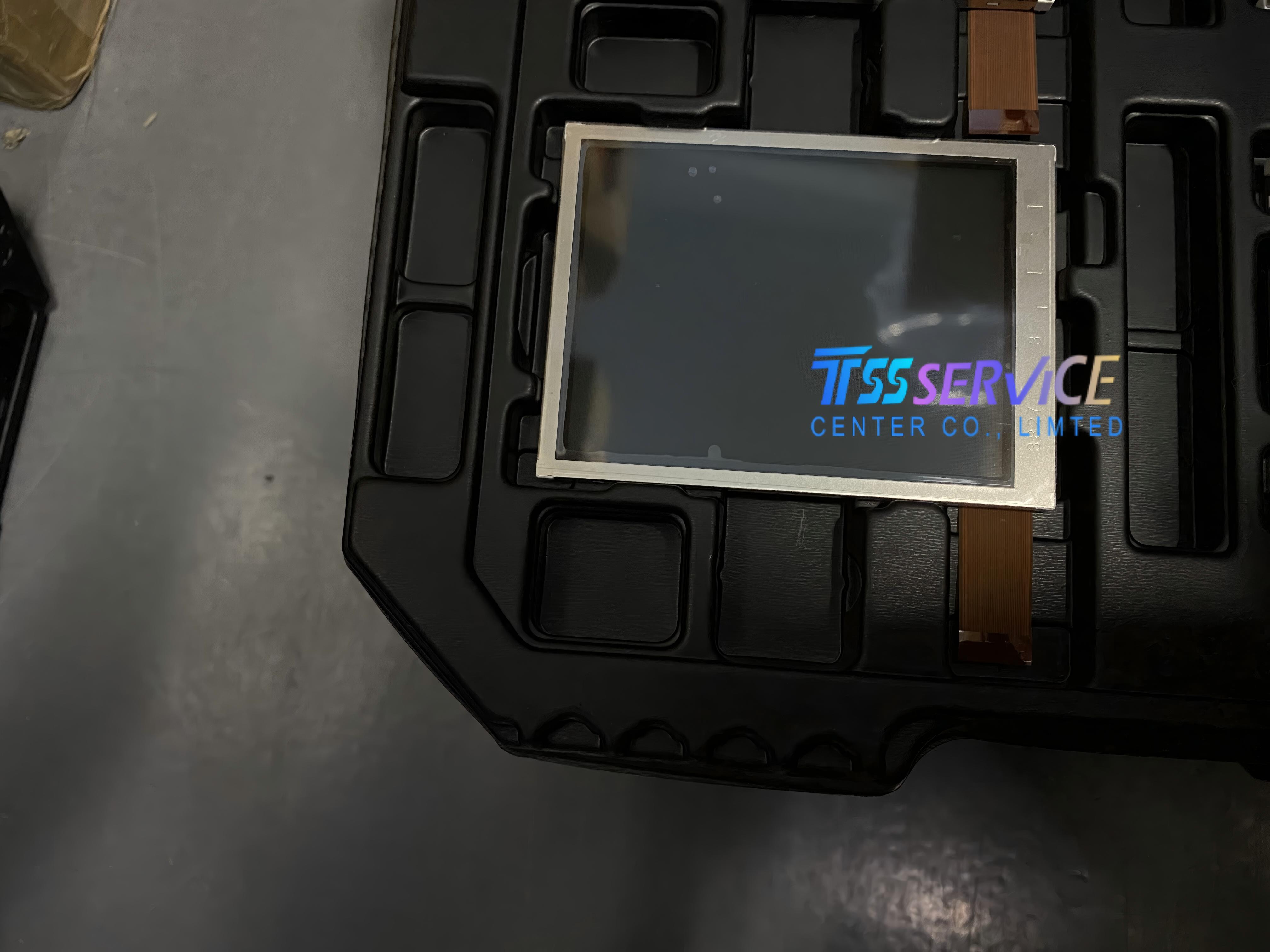

The COM35H3833XLC is a 3.5-inch diagonal a-Si TFT-LCD module manufactured by Ortustech (formerly CASIO's LCD division). It is a transflective (semi-transmissive, semi-reflective) TN display with a normally white mode. This panel is specifically designed for portable and industrial applications requiring excellent sunlight readability and low power consumption .
| Parameter |
Value |
| Mfr. |
Ortustech |
| Model Name |
COM35H3833XLC |
| Display Size |
3.5" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
240(RGB)×320, QVGA, 3:4 |
| Dot Layout |
RGB Vertical Stripe |
| Display Area |
53.64(W)×71.52(H) mm |
| Panel Weight |
33.0g |
| Outline Size |
63.5(W)×85(H)×4.2(D) mm |
| Surface |
Hard coating (3H) |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM); 6.5:1 (Typ.) (RF) |
| Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
| Display Mode |
TN, Normally White, Transflective |
| Response Time |
40/60 (Max.)(Tr/Td) ms |
| Display Colors |
262K |
| Touch Screen |
Without |
| Light Source |
6S1P WLED, 50K hrs, Without Driver |
| Frequency |
60Hz |
| Interface |
Parallel RGB (1 ch, 6-bit), 39 pins FPC |
| Input Voltage |
3.0V (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
Applications
The COM35H3833XLC is ideal for a wide range of applications requiring sunlight readability and portrait orientation :
-
Handheld & Portable Devices
Industrial PDAs, barcode scanners, data loggers, and portable test instruments .
-
GPS & Navigation Systems
Marine chartplotters, fish finders, automotive navigation devices, and precision mapping equipment (e.g., compatible with Ashtech MobileMapper 10 MM10) .
-
Industrial Human-Machine Interfaces (HMIs)
Control panels for factory automation, process monitoring, and machinery control systems.
-
Outdoor Terminals
Ticketing machines, information kiosks, and payment terminals exposed to direct sunlight.
-
Medical Equipment
Portable diagnostic tools, patient monitoring devices, and handheld medical tablets.
