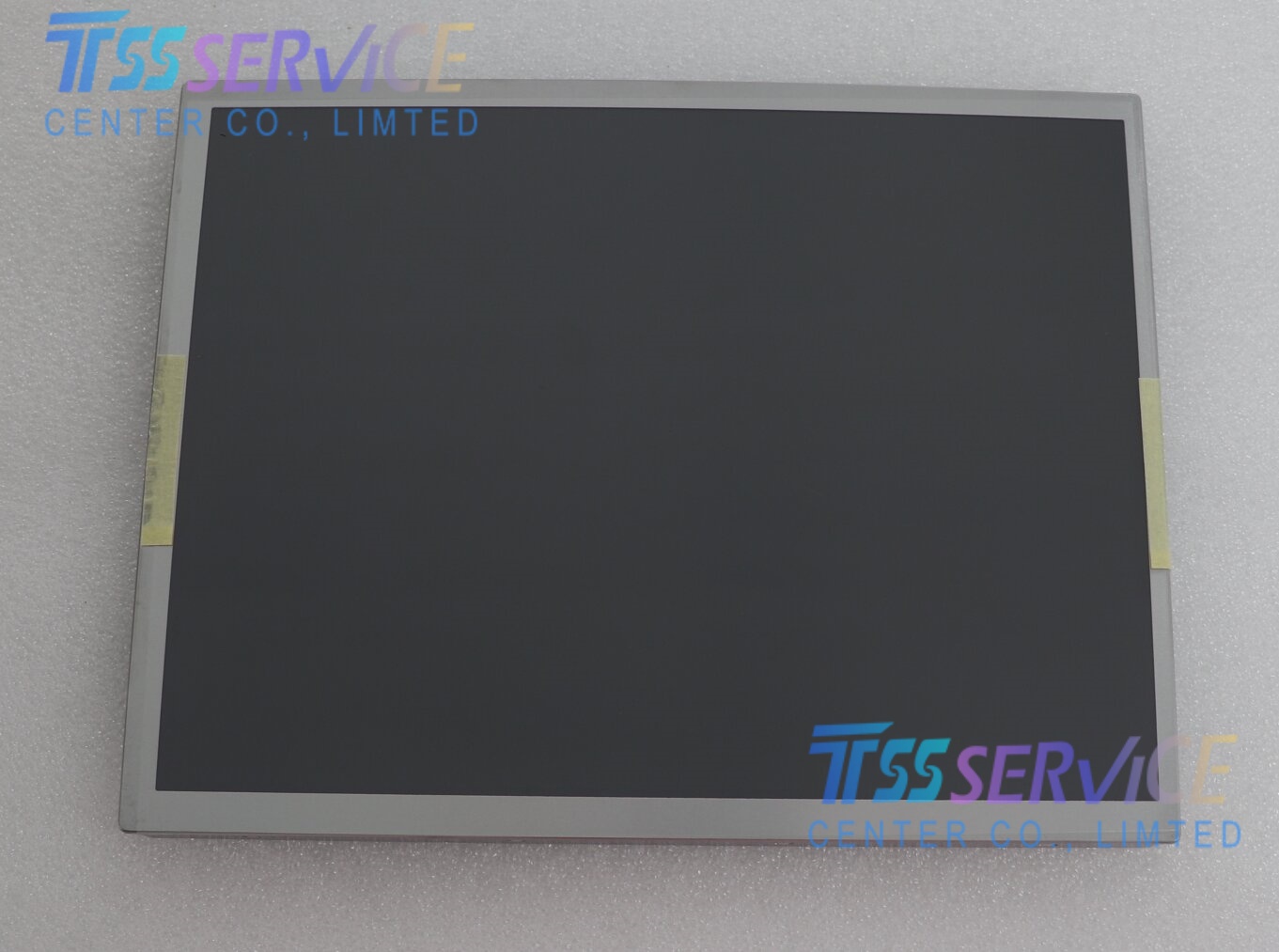

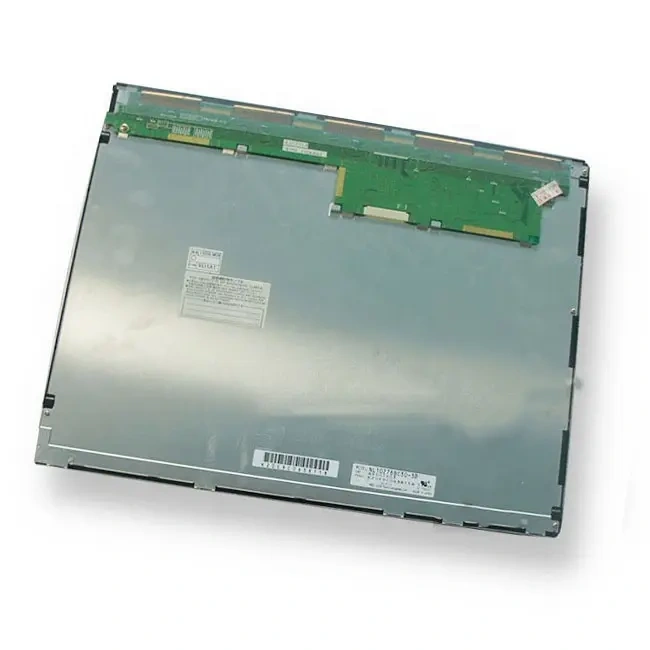

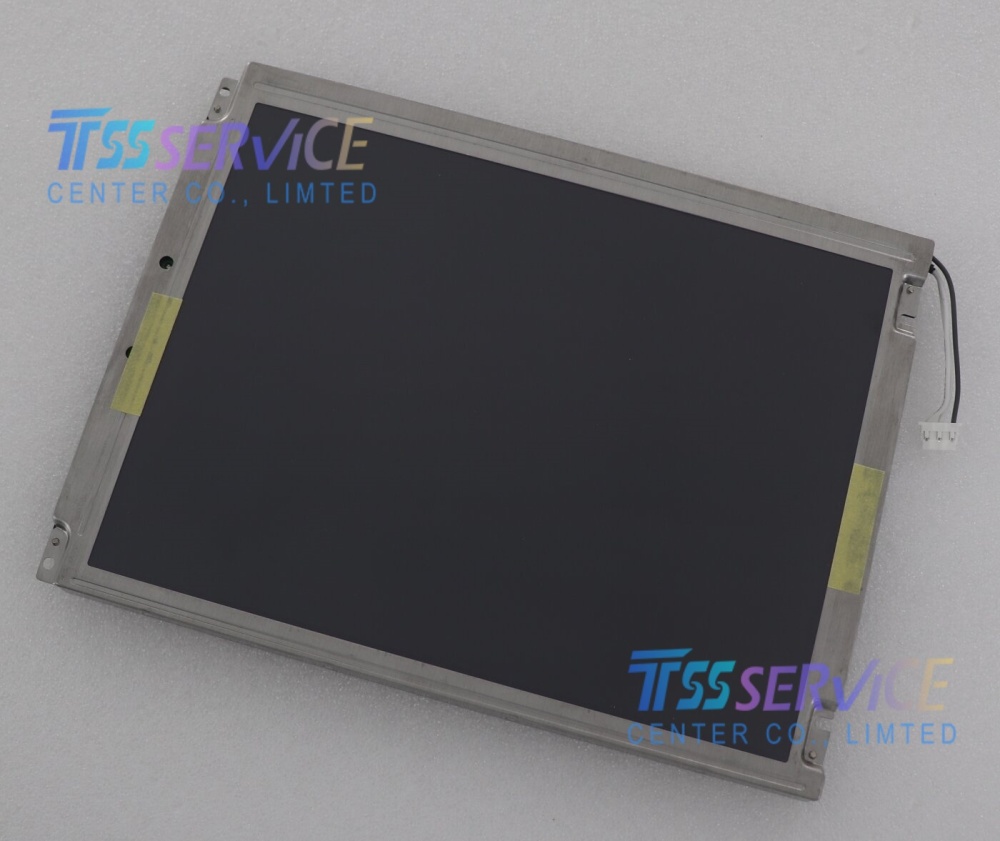

NL10276BC24-21KH NEC 12.1 inch lcd display screens
The NEC NL10276BC24-21KH is a premium 12.1-inch industrial LCD screen featuring an SVGA (1024×768) resolution, a standard 4:3 aspect ratio, and a high-performance CCFL backlight engineered for exceptional brightness uniformity and longevity. Designed to meet the rigorous demands of heavy-duty environments, it delivers superior image clarity, wide viewing angles, and high contrast. With its ruggedized mechanical construction, extended operating temperature range, and proven long-term supply stability, this display guarantees flawless 24/7 continuous operation and serves as a highly reliable visual solution for critical industrial applications.
NL10276BC24-21KH NEC 12.1 inch lcd display screens Highlights
Ultra-High Brightness: Features an exceptional 500 cd/m² luminance, providing outstanding screen visibility in direct sunlight, outdoor kiosks, and brightly lit industrial environments.
True 8-bit Color Depth: Delivers 16.2 million colors, ensuring accurate color reproduction, smooth gradients, and high-fidelity image rendering for medical and industrial imaging.
Wide Temperature Endurance: Designed for harsh conditions with an -30°C to 80°C operating range, guaranteeing flawless performance in extreme cold or high-heat applications.
High Contrast Ratio: A 900:1 contrast ratio provides deep blacks and highly distinguishable grayscale details, significantly enhancing overall visual clarity.
Fine Pixel Pitch: The 0.240 mm pixel pitch packs the XGA resolution densely into a 12.1-inch area, resulting in remarkably sharp text and intricate graphic details.
Stable LVDS Transmission: Utilizes a Single-channel LVDS interface for high-speed, low-noise, and low-power signal transmission, ensuring stable, flicker-free display output.
Premium NEC Reliability: Manufactured by NEC, representing industry-leading quality with robust mechanical design, long-life CCFL backlighting, and proven durability for 24/7 continuous operation.
| Brand |
NEC |
| Model |
NL10276BC24-21KH |
| Panel-type |
a-Si TFT-LCD, LCM |
| Size |
12.1" |
| Resolution |
1024(RGB)×768, XGA, 105PPI |
| Configuration |
RGB Vertical Stripe
|
| Display Area |
245.76(W)×184.32(H) mm
|
| Outline(mm) |
260.5(W)×203(H)×11.6(D) mm |
| Bezel Area |
249.0(W)×187.5(H) mm
|
| Treatment |
Anti Fingerprint + Antiglare, Hard coating (2H)
|
| Brightness |
750 cd/m² (Typ.) |
| Contrast Ratio |
900:1 (Typ.) (TM) |
| Best View on |
6 o'clock |
| Response Time |
3/15 (Typ.)(Tr/Td) |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive
|
| Support Color |
262K/16.7M , 40% NTSC |
| Light Source |
5 strings WLED , 70K hours , Optional |
| Panel Weight |
730/825g (Typ./Max.) |
| Frame Rate |
60Hz
|
| Touch Panel |
PCAP, Optical Bonding |
| Signal Interface |
LVDS (1 ch, 6/8-bit) , Connector 20 pins |
| Power Supply |
|
| Max. Ratings |
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
NL10276BC24-21KH NEC 12.1 inch lcd display screens Applications:Industrial automation HMI and SCADA control panelsMedical imaging and patient monitoring systemsCNC machinery and semiconductor manufacturing equipmentMarine navigation and heavy-duty vehicle displaysAviation instrumentation and traffic control terminalsFAQ:Q1:The 12.1-inch glass area is quite large. How do you package it to prevent screen breakage during transit?A1:12.1-inch LCD glass is highly susceptible to shattering from impact or compression. We apply a “dual-floating” industrial packaging method for the NL10276BC24-21KH: The inner layer uses a vacuum anti-static bag for moisture protection; the middle layer places the screen flat in a custom thickened blister tray, with a rigid polystyrene board placed over the glass to prevent surface scratches; the outer layer uses a 5-ply double-wall heavy-duty carton, with all sides, top, and bottom completely filled with high-density EPE foam. This ensures the screen is in an absolute floating state inside the box, free from any logistics gravity compression. For bulk export, wooden pallets are strictly used.Q2: What is the current stock and shipping status for the NL10276BC24-21KH NEC 12.1-inch display?A2:The NL10276BC24-21KH is a classic 12.1-inch industrial long-lifecycle panel from NEC. The “KH” suffix usually indicates a special specification (such as high-brightness or wide-temperature version), making the market demand niche but essential. We typically keep spot stock domestically or source it through stable channels. Small samples are generally shipped within 1-3 business days after payment confirmation. For bulk orders (hundreds of pieces), the lead time is usually around 1-2 weeks. We recommend checking real-time stock with our sales team before placing an order.Q3:What is the unit price for a singleNL10276BC24-21KH:? Is there a discount if I bulk purchase 100 pieces?A3:Due to market fluctuations in electronic components, please contact us for the latest quote for a single piece. For bulk purchases (e.g., 100 pieces or more), we absolutely offer competitive tiered discounts. The bulk price will be negotiated based on the current procurement cost and delivery schedule. Please feel free to send us a formal Request for Quotation (RFQ).The Advantages of Choosing Us:
